TT141L-TEKDSV (1982)
Toyota Corona Fr
Production
Jan 1982
-
Oct 1983
Engine
3T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )

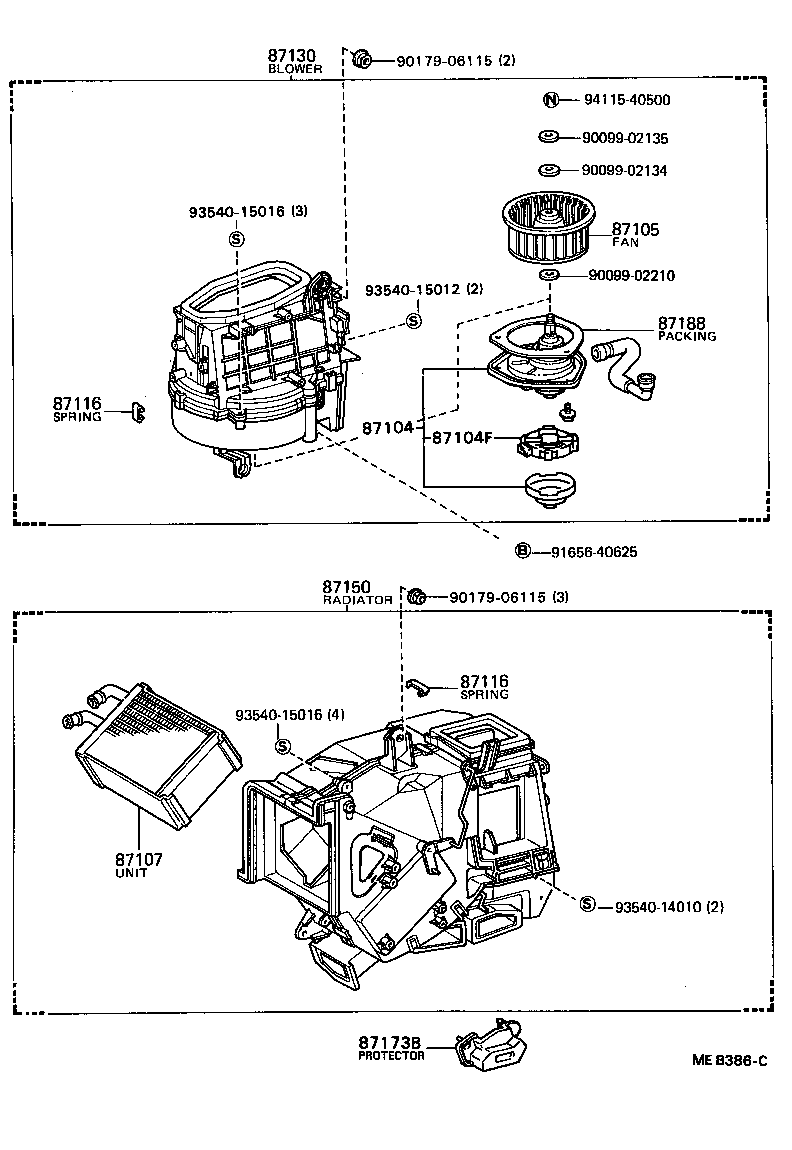

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-14100 |
CT14#,RT140,ST141,TT14#,YT140..LHD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14020 |
CT14#,RT140,ST141,TT14#,YT140..LHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-14120 |
CT140,TT14#..LHD |
1 | ||
| 87116 - SPRING, HEATER CASE FASTENING | ||||
| 87116-14010 |
CT14#,RT142,ST141,TT14#,YT140 |
10 | ||
| 87116 - SPRING, HEATER CASE FASTENING | ||||
| 87116-14010 |
CT14#,RT142,ST141,TT14#,YT140 |
10 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-14080 |
CT140,TT14#..LHD |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-14210 |
CT140,TT14#..LHD |
1 | ||
| 87173B - PROTECTOR, HEATER | ||||
| 87173-20210 |
CT140,TT14#..LHD |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87127-14010 |
CT14#,RT142,ST141,TT14#,YT140 |
1 | ||
| Common parts | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-02210 | ||||
| 90179-06115 | ||||
| 91656-40625 | ||||
| 93540-14010 | ||||
| 93540-15012 | ||||
| 93540-15016 | ||||
| 94115-40500 | ||||
(8201- )

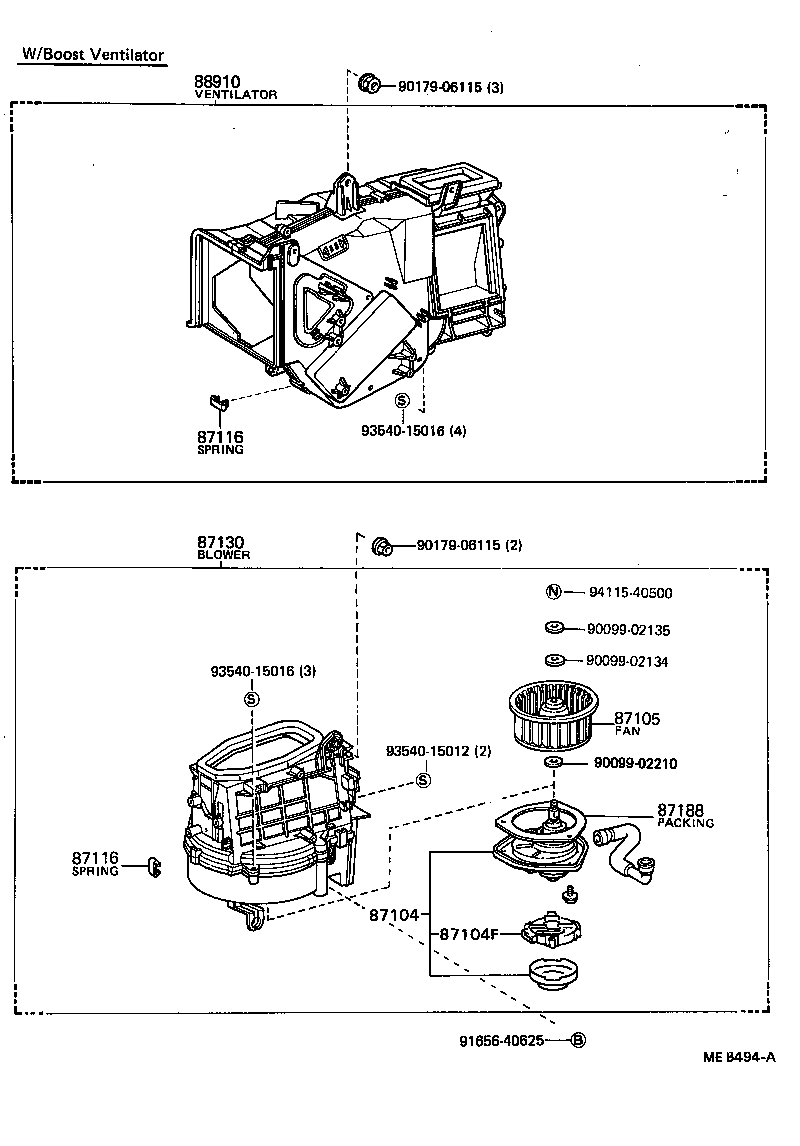

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-14100 |
CT14#,RT140,ST141,TT14#,YT140..LHD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14020 |
CT14#,RT140,ST141,TT14#,YT140..LHD |
1 | ||
| 87116 - SPRING, HEATER CASE FASTENING | ||||
| 87116-14010 |
CT14#,RT142,ST141,TT14#,YT140 |
10 | ||
| 87116 - SPRING, HEATER CASE FASTENING | ||||
| 87116-14010 |
CT14#,RT142,ST141,TT14#,YT140 |
10 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-14080 |
CT140,TT14#..LHD |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87127-14010 |
CT14#,RT142,ST141,TT14#,YT140 |
1 | ||
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-14140 |
CT140,RT140,ST141,TT14#..LHD |
1 | ||
| Common parts | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-02210 | ||||
| 90179-06115 | ||||
| 91656-40625 | ||||
| 93540-15012 | ||||
| 93540-15016 | ||||
| 94115-40500 | ||||
