TT141L-TEKDSV (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

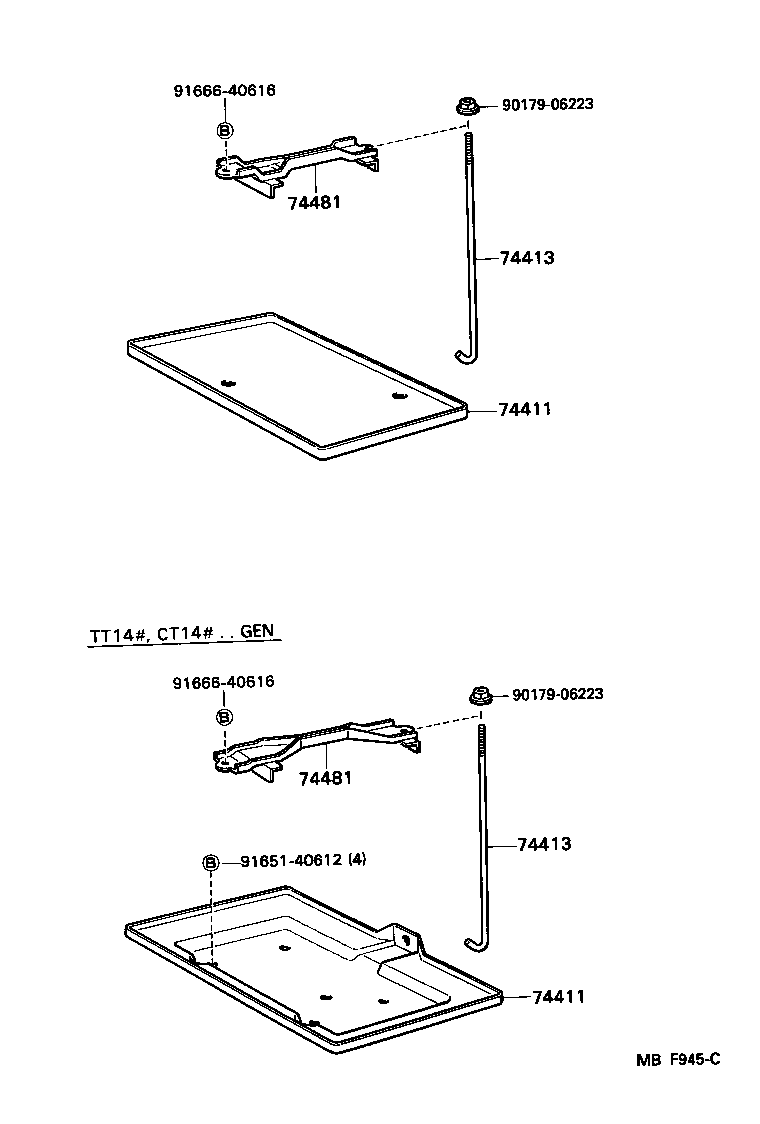

Click highlighted areas on diagram

diagram 74411 74411 74413 74413 74481 74481 9017906223 9017906223 9165140612 9166640616 9166640616
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-14020

RT140,TT14#

32C24L(N40L),32C24R(N40)

 1
74431-14050

RT142,ST141,TT14#

34B19L(NS40ZAL)

 1
74411 - CARRIER, BATTERY
74431-14020

RT140,TT14#

32C24L(N40L),32C24R(N40)

 1
74431-14050

RT142,ST141,TT14#

34B19L(NS40ZAL)

 1
74413 - BOLT, BATTERY CLAMP
74451-14010

RT14#,ST141,TT14#

32C24L(N40L),32C24R(N40)

 1
74413 - BOLT, BATTERY CLAMP
74451-14010

RT14#,ST141,TT14#

32C24L(N40L),32C24R(N40)

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-14230

RT140,TT14#

32C24L(N40L),32C24R(N40)

 1
74404-14220

RT142,ST141,TT14#

34B19L(NS40ZAL)

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-14230

RT140,TT14#

32C24L(N40L),32C24R(N40)

 1
74404-14220

RT142,ST141,TT14#

34B19L(NS40ZAL)

 1
Common parts
90179-06223
91651-40612
91666-40616
