TT141L-TEKDSV (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)2T,3T

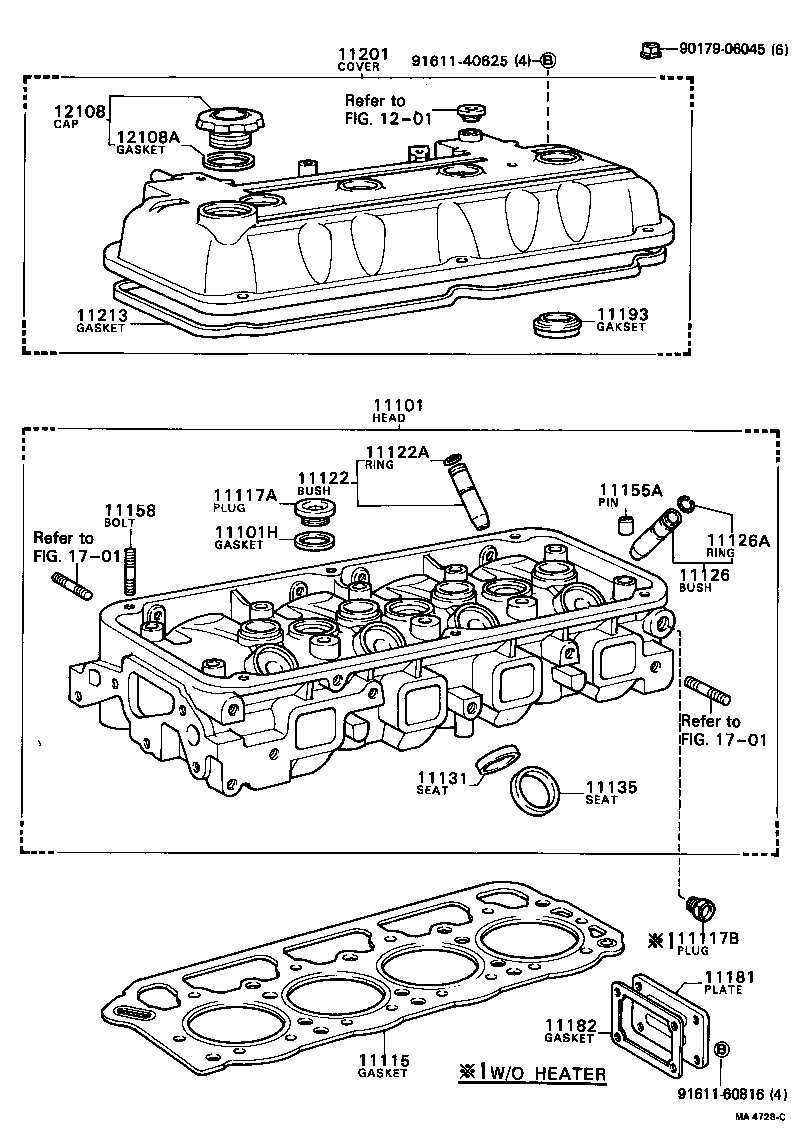

Click highlighted areas on diagram

diagram 11101 11101H 11115 11117A 11117B 11122 11122A 11126 11126A 11131 11135 11155A 11158 11181 11182 11193 11201 11213 1201 12108 12108A 1701 1701 9017906045 9161140625 9161160816
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-29229

2T,3T..TT14#

 1
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-24246

2T,3T..TT14#

 3
11115 - GASKET, CYLINDER HEAD
11115-26024

2T,3T..TT14#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-24090

2T,3T..TT14#

 3
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53007

2T,3T..TT14#

W/O HEATER

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-25021

2T,3T..TT14#

O/S 0.05

 4
11122-25021

2T,3T..TT14#

STD

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

2T,3T..TT14#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-25021

2T,3T..TT14#

STD

 4
11127-25021

2T,3T..TT14#

O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

2T,3T..TT14#

 4
11131 - SEAT, INTAKE VALVE
11131-25010

2T,3T..TT14#

STD

 4
11132-25010

2T,3T..TT14#

O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11135-25011

2T,3T..TT14#

STD

 4
11136-25011

2T,3T..TT14#

O/S 0.03

 4
11155A - PIN, RING W/HEAD
90253-16020

2T,3T..TT14#

 5
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
92122-40625

2T,3T..TT14#

 6
11181 - PLATE, CYLINDER HEAD, REAR
11181-25010

2T,3T..TT14#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-25011

2T,3T..TT14#

 1
11193 - GASKET, SPARK PLUG TUBE
11193-25012

2T,3T..TT14#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-29128

2T,3T..TT14#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-25012

2T,3T..TT14#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010

2T,3T..TT14#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2T,3T..TT14#

 1
Common parts
90179-06045
91611-40625
91611-60816
Linked diagrams
1201
1701
