TT141L-TEHNSV (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

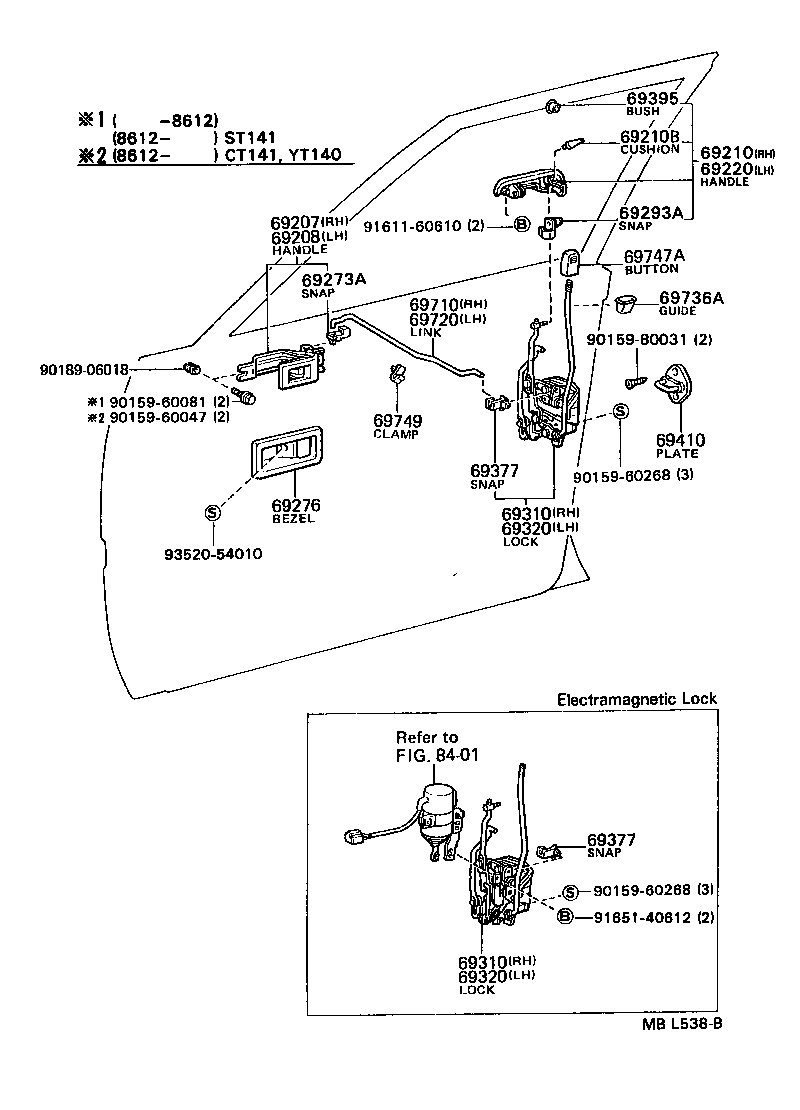

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69273A 69276 69293A 69310 69310 69320 69320 69377 69377 69395 69410 69710 69720 69736A 69747A 69749 8401 9015960047 9015960081 9015960268 9015960268 9015980031 9018906018 9161160610 9165140612 9352054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1404004

CT140,RT140,ST141,TT14#..SED

BLUE,BLUE

 1
69205-1404001

CT140,RT140,ST141,TT14#

BLACK,BLACK

 1
69205-1404016

CT140,RT140,ST141,TT14#

SADDLE BROWN,BROWN

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1404004

CT140,RT140,ST141,TT14#..SED

BLUE,BLUE

 1
69206-1404016

CT140,RT140,ST141,TT14#

SADDLE BROWN,BROWN

 1
69206-1404001

CT140,RT140,ST141,TT14#

BLACK,BLACK

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-20080

CT14#,RT14#,ST141,TT14#

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

CT140,RT140,TT14#

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-20080

CT14#,RT14#,ST141,TT14#

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69759-14050

CT140,RT140,ST141,TT14#

RH

 1
69759-24070

CT140,RT140,ST141,TT14#

LH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1604026

CT140,RT14#,ST141,TT14#

SADDLE BROWN,BROWN

 2
69277-1604014

CT140,RT14#,ST141,TT14#..SED

BLUE,BLUE

 2
69277-1604001

CT140,RT14#,ST141,TT14#

BLACK,BLACK

 2
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-16010

CT14#,RT14#,ST141,TT14#

RH

 1
69293-16020

CT14#,RT14#,ST141,TT14#

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20150

TT14#..ME

 1
69310-20151

TT14#..ME

 1
69310-20181

TT141..GL..ME

W/*EL

 1
69310-20180

TT141..GL..ME

W/*EL

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20150

TT14#..ME

 1
69310-20151

TT14#..ME

 1
69310-20181

TT141..GL..ME

W/*EL

 1
69310-20180

TT141..GL..ME

W/*EL

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20170

TT14#..ME

 1
69320-20201

TT141..GL..ME

W/*EL

 1
69320-20171

TT14#..ME

 1
69320-20200

TT141..GL..ME

W/*EL

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20170

TT14#..ME

 1
69320-20201

TT141..GL..ME

W/*EL

 1
69320-20171

TT14#..ME

 1
69320-20200

TT141..GL..ME

W/*EL

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-24050

CT140,RT140,ST141,TT14#

LH

 1
69759-24060

CT140,RT140,ST141,TT14#

RH

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-24050

CT140,RT140,ST141,TT14#

LH

 1
69759-24060

CT140,RT140,ST141,TT14#

RH

 1
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
90386-06030

CT14#,RT14#,ST141,TT14#

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-14050

CT140,RT140,TT14#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-14050

CT140,RT140,ST141,TT14#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-14050

CT140,RT140,ST141,TT14#

 1
69736A - GUIDE, FRONT DOOR LOCK LINK
69736-22021

CT140,RT140,TT14#..DLX,GL,TAX

 2
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-2002036

CT140,TT14#

SADDLE BROWN,BROWN

 2
69741-2002001

CT140,TT14#

BLACK,BLACK

 2
69741-2002014

CT140,TT14#..SED

BLUE,BLUE

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-30020

CT140,RT140,ST141,TT14#

 2
69749-12010

CT140,RT140,TT14#

 2
Common parts
90159-60047
90159-60081
90159-60268
90159-80031
90189-06018
91611-60610
91651-40612
93520-54010
Linked diagrams
8401
