TT141L-TEHNSV (1982)
Toyota Corona Fr

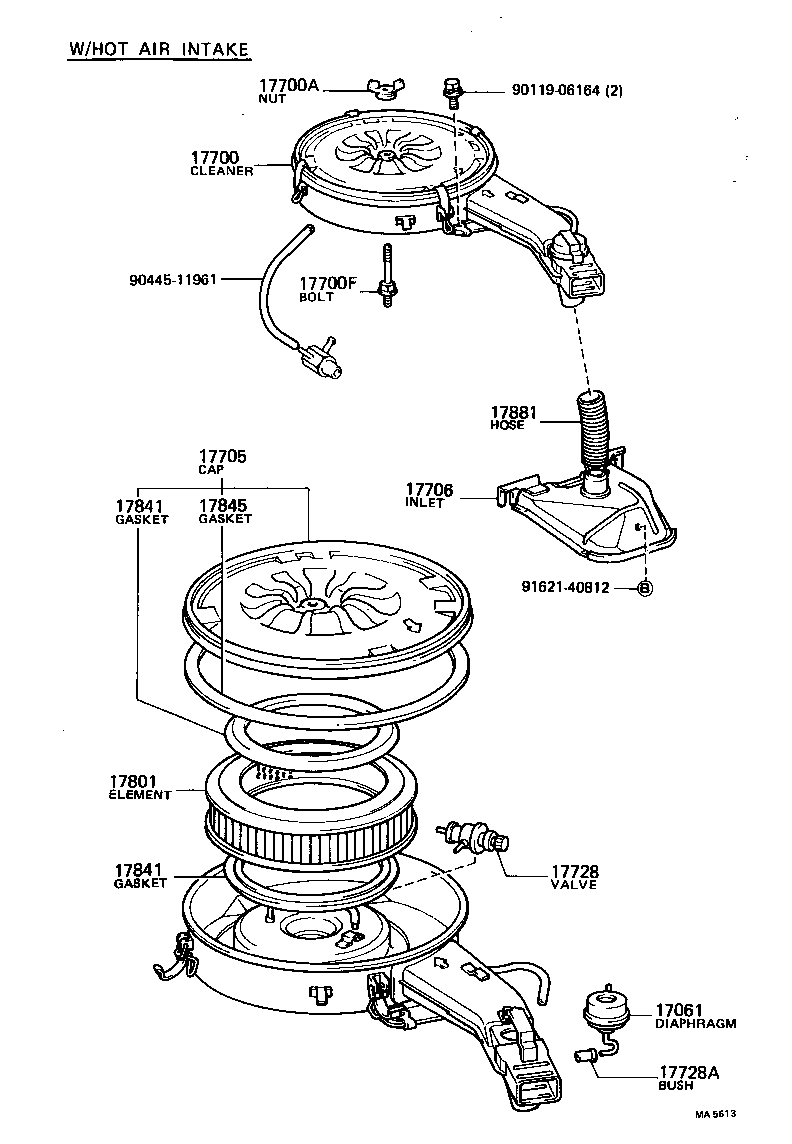

ILLUST NO. 1 OF 2(8201-8508)2T,3T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-26290 |
2T..TT140;3T..TT141..RHD;3T..TT141..3FC..ME;3T..TT141..LHD..MTM |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
2T,3T..TT14# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
2T,3T..TT14# L=78,S=11&28 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-26080 |
2T,3T..TT14# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31080 |
2T..TT140;3T..TT141..RHD;3T..TT141..3FC..ME;3T..TT141..LHD..MTM DUST AREA |
1 | ||
| 17801-25010 |
2T,3T..TT14# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31020 |
2T,3T..TT14# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31020 |
2T,3T..TT14# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-25010 |
2T,3T..TT14# |
1 | ||
| Common parts | ||||
| 90119-06164 | ||||

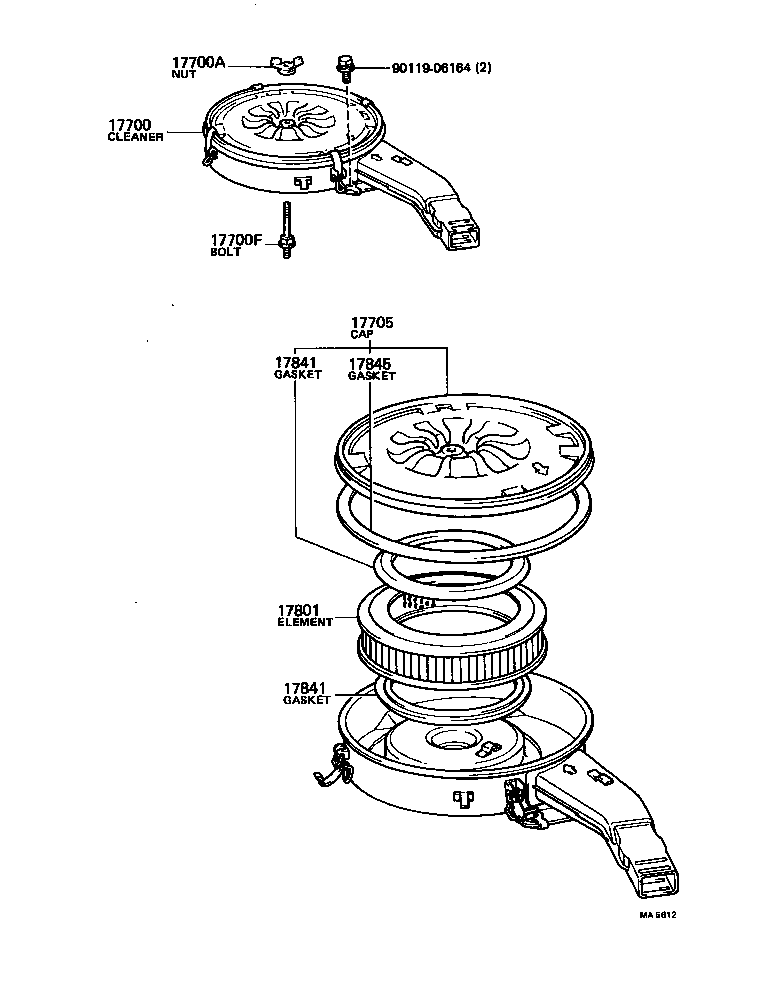

ILLUST NO. 1 OF 2(8201-8508)2T,3T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-26290 |
2T..TT140;3T..TT141..RHD;3T..TT141..3FC..ME;3T..TT141..LHD..MTM |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
2T,3T..TT14# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
2T,3T..TT14# L=78,S=11&28 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-26080 |
2T,3T..TT14# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31080 |
2T..TT140;3T..TT141..RHD;3T..TT141..3FC..ME;3T..TT141..LHD..MTM DUST AREA |
1 | ||
| 17801-25010 |
2T,3T..TT14# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31020 |
2T,3T..TT14# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-31020 |
2T,3T..TT14# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-25010 |
2T,3T..TT14# |
1 | ||
| Common parts | ||||
| 90119-06164 | ||||
| 90445-11961 | ||||
| 91621-40812 | ||||

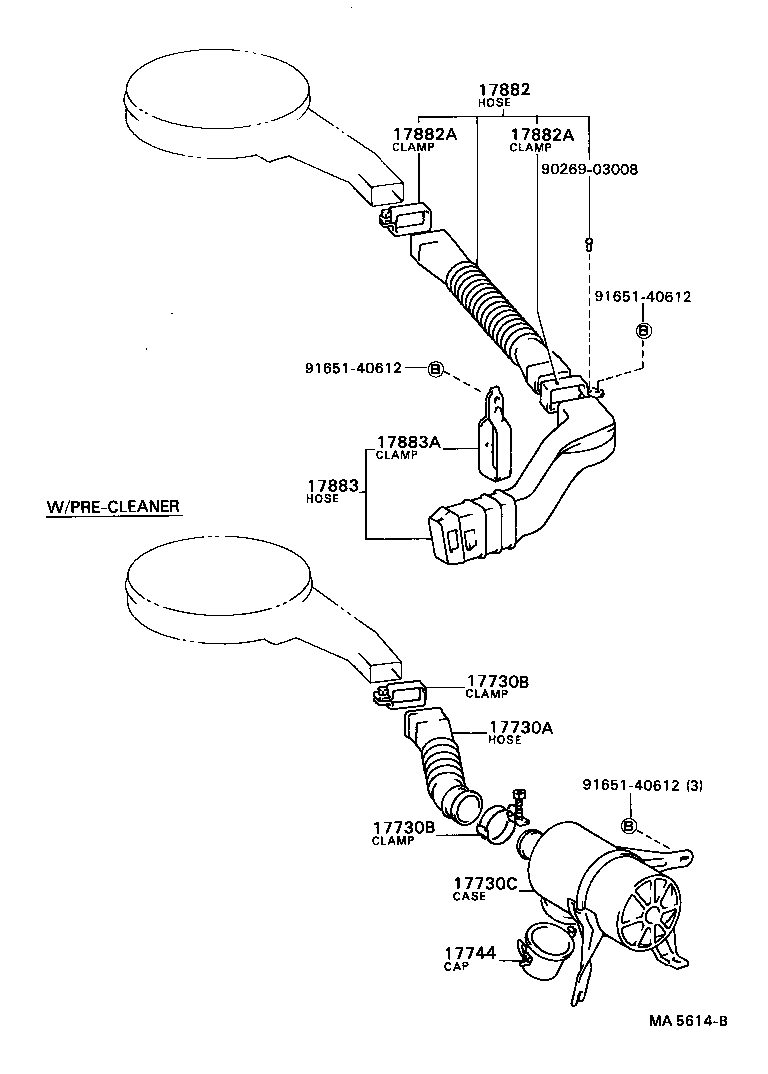

ILLUST NO. 2 OF 2(8201-8508)2T,3T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17730A - HOSE, PRECLEANER | ||||
| 17881-26060 |
2T,3T..TT14# DUST AREA |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10600 |
2T,3T..TT14# PRE-CLEANER SIDE,DUST AREA |
1 | ||
| 90460-01003 |
2T,3T..TT14# AIR CLEANER SIDE,DUST AREA |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10600 |
2T,3T..TT14# PRE-CLEANER SIDE,DUST AREA |
1 | ||
| 90460-01003 |
2T,3T..TT14# AIR CLEANER SIDE,DUST AREA |
1 | ||
| 17730C - CASE, PRECLEANER | ||||
| 17736-26010 |
2T,3T..TT14# DUST AREA |
1 | ||
| 17744 - CUP, PRECLEANER | ||||
| 17744-13010 |
2T,3T..TT14# DUST AREA |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-14020 |
2T,3T..TT14# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01003 |
2T,3T..TT14# AIR CLEANER SIDE |
1 | ||
| 90460-01019 |
2T,3T..TT14# HOSE SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01003 |
2T,3T..TT14# AIR CLEANER SIDE |
1 | ||
| 90460-01019 |
2T,3T..TT14# HOSE SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-14010 |
2T,3T..TT14# |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01018 |
2T,3T..TT14# |
1 | ||
| Common parts | ||||
| 90269-03008 | ||||
| 91651-40612 | ||||
