TT141L-TEHNS (1982)
Toyota Corona Fr

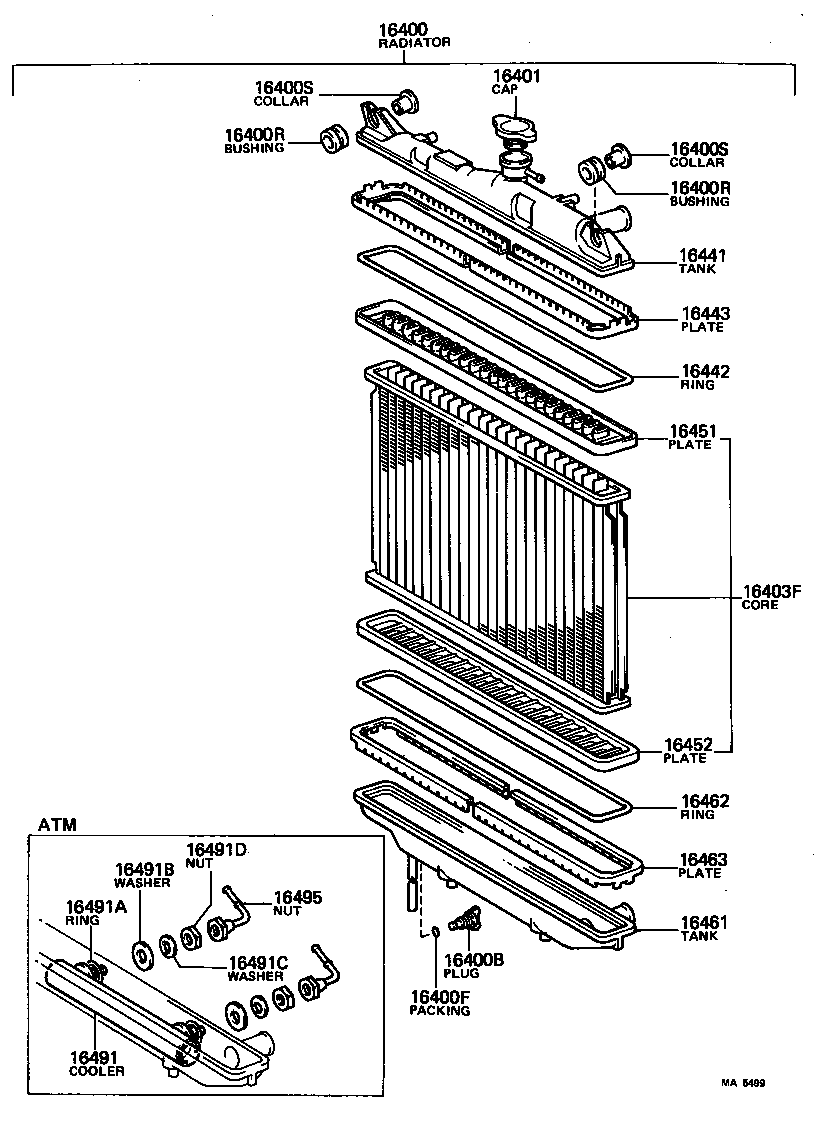

ILLUST NO. 2 OF 2(8201-8508)2T,3T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-28051 |
3T..TT141..3FC..GEN DOUBLE CORE |
1 | ||
| 16400-26340 |
3T..TT141..3FC SINGLE CORE |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
2T,3T..TT14#..GEN DOUBLE CORE |
1 | ||
| 23322-54010 |
2T,3T..TT14# SINGLE CORE |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2T,3T..TT14# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-35070 |
2T,3T..TT14# SINGLE CORE |
2 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-35070 |
2T,3T..TT14# SINGLE CORE |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-35070 |
2T,3T..TT14# SINGLE CORE |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-35070 |
2T,3T..TT14# SINGLE CORE |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2T,3T..TT14# SINGLE CORE |
1 | ||
| 16401-36011 |
2T,3T..TT14#..GEN DOUBLE CORE |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-37100 |
3T..TT141..3FC SINGLE CORE |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-28060 |
3T..TT141..3FC SINGLE CORE |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-35070 |
3T..TT141..3FC SINGLE CORE |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-35070 |
3T..TT141..3FC SINGLE CORE |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-35070 |
3T..TT141..3FC SINGLE CORE |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-35070 |
3T..TT141..3FC SINGLE CORE |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-35080 |
3T..TT141..3FC SINGLE CORE |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-35070 |
3T..TT141..3FC SINGLE CORE |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-35070 |
3T..TT141..3FC SINGLE CORE |
2 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-35080 |
3T..TT141..3FC SINGLE CORE |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-35080 |
3T..TT141..3FC SINGLE CORE |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-35080 |
3T..TT141..3FC SINGLE CORE |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-35080 |
3T..TT141..3FC SINGLE CORE |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-35080 |
3T..TT141..3FC SINGLE CORE |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-26340 |
3T..TT141..3FC SINGLE CORE |
2 | ||

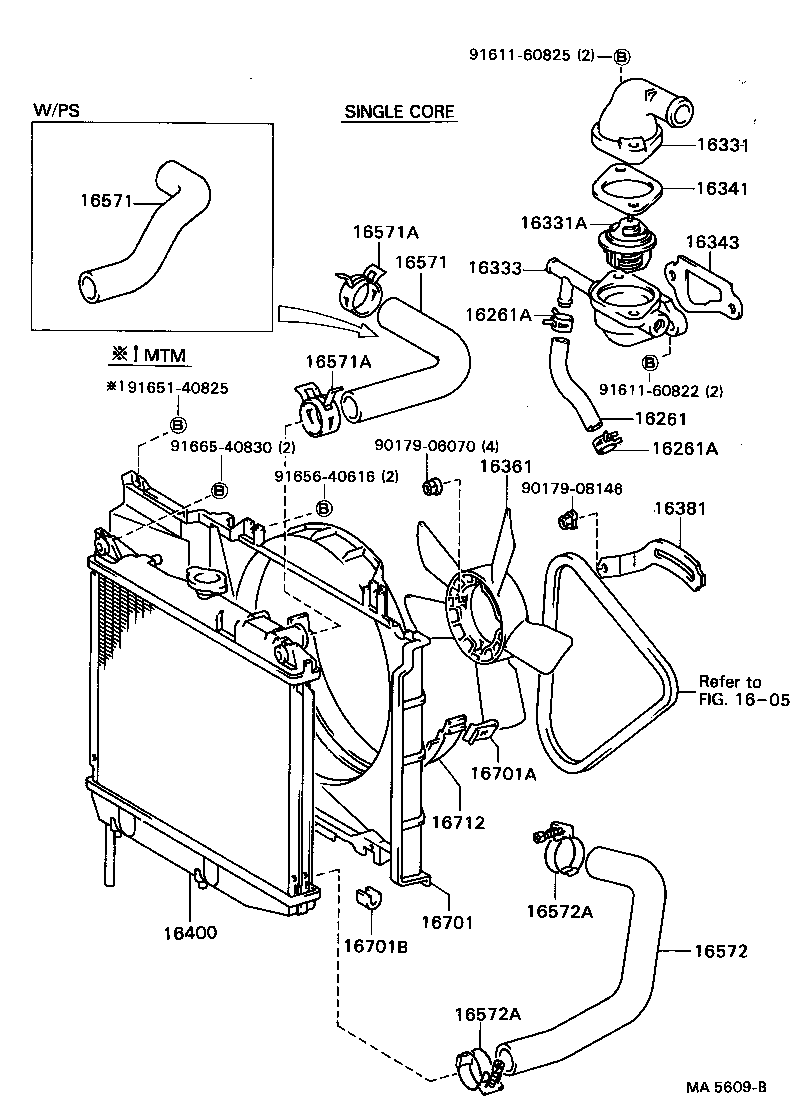

ILLUST NO. 1 OF 2(8201-8508)2T,3T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-25020 |
2T,3T..TT14# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
2T,3T..TT14# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
2T,3T..TT14# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-26060 |
2T,3T..TT14# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03040 |
2T,3T..TT14# *WAX88-100,KUZEH |
1 | ||
| 90916-03036 |
2T,3T..TT14# *WAX88-100,FUJI-THOMSON |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-25010 |
2T,3T..TT14# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38011 |
2T,3T..TT14# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22011 |
2T,3T..TT14# |
1 | ||
| 16361 - FAN | ||||
| 16361-18010 |
3T..TT141..3FC;3T..TT141..MTM..ME 6 BLADES |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-25010 |
2T,3T..TT14# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28051 |
3T..TT141..3FC..GEN DOUBLE CORE |
1 | ||
| 16400-26340 |
3T..TT141..3FC SINGLE CORE |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01143 |
2T,3T..TT14# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01143 |
2T,3T..TT14# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2T,3T..TT14# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2T,3T..TT14# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-26090 |
2T,3T..TT14# RADIATOR SINGLE CORE |
1 | ||
| 16571-28020 |
3T..TT141..GEN RADIATOR DOUBLE CORE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
2T,3T..TT14# RADIATOR SIDE |
1 | ||
| 96111-10490 |
2T,3T..TT14# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
2T,3T..TT14# RADIATOR SIDE |
1 | ||
| 96111-10490 |
2T,3T..TT14# WATER PUMP SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-28090 |
2T..TT140..WG..LHD;2T,3T..TT14#..3FC,4H;2T,3T..TT14#..(4F,5F)..ME RADIATOR SINGLE CORE |
1 | ||
| 16711-26080 |
3T..TT141..3FC..GEN RADIATOR DOUBLE CORE |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06006 |
2T,3T..TT14#..GEN RADIATOR DOUBLE CORE,W/COOLER |
2 | ||
| 90468-06013 |
2T,3T..TT14# RADIATOR SINGLE CORE,W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
2T,3T..TT14# RADIATOR SINGLE CORE |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-44040 |
2T,3T..TT14# RADIATOR SINGLE CORE,W/COOLER |
1 | ||
| 16712-28011 |
2T,3T..TT14#..GEN RADIATOR DOUBLE CORE,W/COOLER |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91651-40825 | ||||
| 91656-40616 | ||||
| 91665-40830 | ||||
| Linked diagrams | ||||
| 1605 | ||||

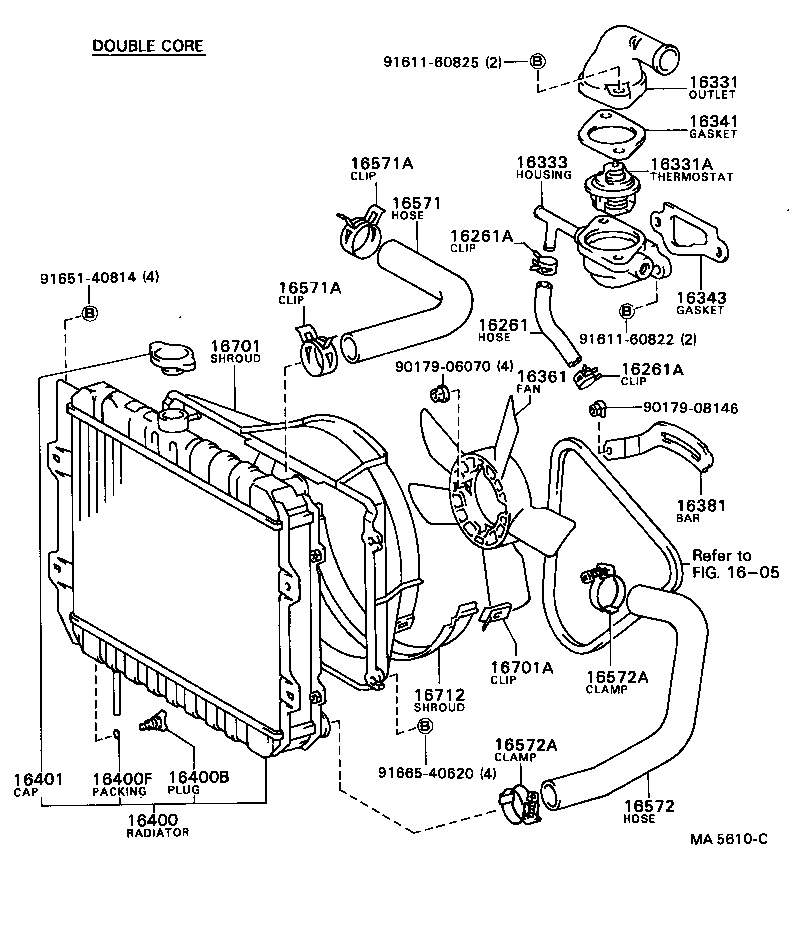

(8201-8508)2T,3T..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-25020 |
2T,3T..TT14# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
2T,3T..TT14# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
2T,3T..TT14# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-26060 |
2T,3T..TT14# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03040 |
2T,3T..TT14# *WAX88-100,KUZEH |
1 | ||
| 90916-03036 |
2T,3T..TT14# *WAX88-100,FUJI-THOMSON |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-25010 |
2T,3T..TT14# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38011 |
2T,3T..TT14# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22011 |
2T,3T..TT14# |
1 | ||
| 16361 - FAN | ||||
| 16361-18010 |
3T..TT141..3FC;3T..TT141..MTM..ME 6 BLADES |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-25010 |
2T,3T..TT14# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28051 |
3T..TT141..3FC..GEN DOUBLE CORE |
1 | ||
| 16400-26340 |
3T..TT141..3FC SINGLE CORE |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
2T,3T..TT14#..GEN DOUBLE CORE |
1 | ||
| 23322-54010 |
2T,3T..TT14# SINGLE CORE |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2T,3T..TT14# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2T,3T..TT14# SINGLE CORE |
1 | ||
| 16401-36011 |
2T,3T..TT14#..GEN DOUBLE CORE |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01143 |
2T,3T..TT14# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2T,3T..TT14# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2T,3T..TT14# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-26090 |
2T,3T..TT14# RADIATOR SINGLE CORE |
1 | ||
| 16571-28020 |
3T..TT141..GEN RADIATOR DOUBLE CORE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
2T,3T..TT14# RADIATOR SIDE |
1 | ||
| 96111-10490 |
2T,3T..TT14# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
2T,3T..TT14# RADIATOR SIDE |
1 | ||
| 96111-10490 |
2T,3T..TT14# WATER PUMP SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-28090 |
2T..TT140..WG..LHD;2T,3T..TT14#..3FC,4H;2T,3T..TT14#..(4F,5F)..ME RADIATOR SINGLE CORE |
1 | ||
| 16711-26080 |
3T..TT141..3FC..GEN RADIATOR DOUBLE CORE |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06006 |
2T,3T..TT14#..GEN RADIATOR DOUBLE CORE,W/COOLER |
2 | ||
| 90468-06013 |
2T,3T..TT14# RADIATOR SINGLE CORE,W/COOLER |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-44040 |
2T,3T..TT14# RADIATOR SINGLE CORE,W/COOLER |
1 | ||
| 16712-28011 |
2T,3T..TT14#..GEN RADIATOR DOUBLE CORE,W/COOLER |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91651-40814 | ||||
| 91665-40620 | ||||
| Linked diagrams | ||||
| 1605 | ||||
