TT141L-TEHDS (1982)
Toyota Corona Fr
Production
Jan 1982
-
Aug 1985
Engine
3T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8508)TT141..3FC ; (8304- )4FC

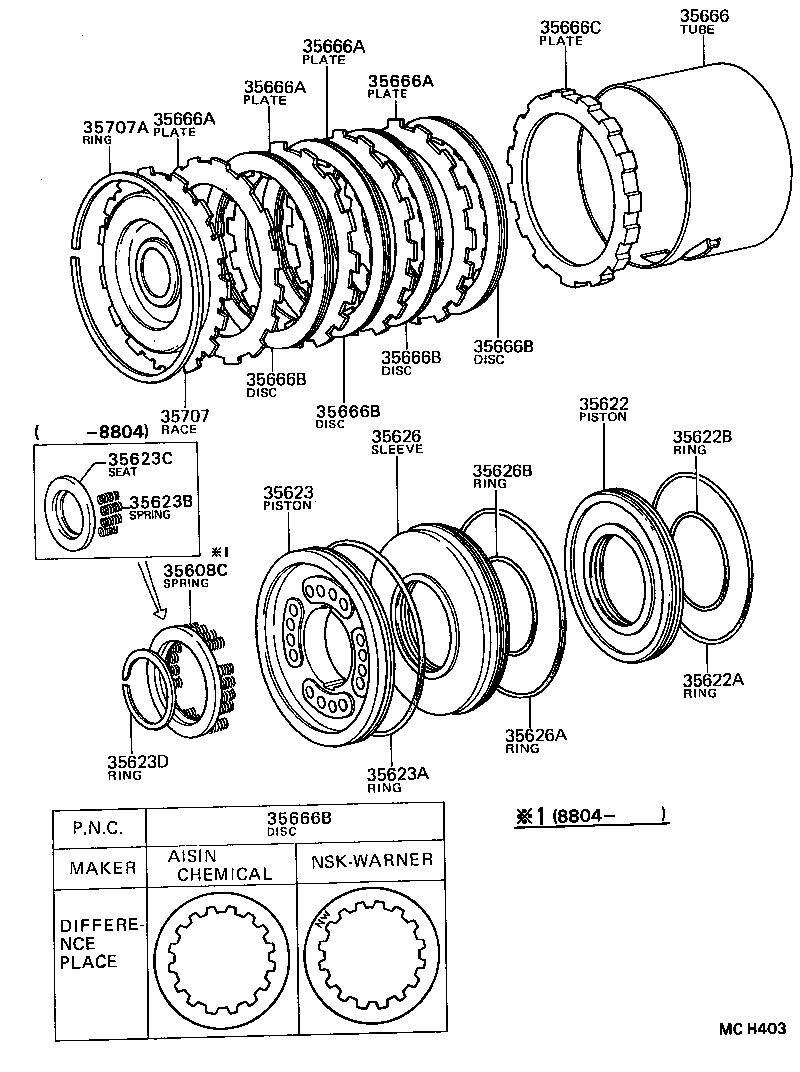

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-22010 |
TT141..3FC |
1 | ||
| 35622A - RING (FOR BRAKE PISTON OUTER) | ||||
| 90301-99193 |
TT141..3FC |
1 | ||
| 35622B - RING (FOR BRAKE PISTON INNER) | ||||
| 90301-57188 |
TT141..3FC |
1 | ||
| 35623 - PISTON, BRAKE, NO.3 | ||||
| 35623-22010 |
TT141..3FC |
1 | ||
| 35623A - RING, O (FOR BRAKE PISTON NO.3 ) | ||||
| 90301-99192 |
TT141..3FC |
1 | ||
| 35623B - SPRING (FOR BRAKE PISTON RETURN) | ||||
| 90501-10671 |
TT141..3FC |
16 | ||
| 35623C - SEAT, BRAKE RETURN SPRING | ||||
| 35627-22010 |
TT141..3FC |
1 | ||
| 35623D - RING, SHAFT SNAP (FOR BRAKE) | ||||
| 90520-52262 |
TT141..3FC |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-22010 |
TT141..3FC |
1 | ||
| 35626A - RING (FOR BRAKE REACTION SLEEVE OUTER) | ||||
| 90301-99200 |
TT141..3FC |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
TT141..3FC |
1 | ||
| 35666 - TUBE, BRAKE APPLY | ||||
| 35666-22010 |
TT141..3FC |
1 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22080 |
TT141..3FC |
4 | ||
| 35634-22050 |
TT141..3FC |
4 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22080 |
TT141..3FC |
4 | ||
| 35634-22050 |
TT141..3FC |
4 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22080 |
TT141..3FC |
4 | ||
| 35634-22050 |
TT141..3FC |
4 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22080 |
TT141..3FC |
4 | ||
| 35634-22050 |
TT141..3FC |
4 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22030 |
TT141..3FC NSK-WARNER |
4 | ||
| 35633-30030 |
TT141..3FC |
4 | ||
| 35633-22050 |
TT141..3FC AISIN CHEMICAL |
4 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22030 |
TT141..3FC NSK-WARNER |
4 | ||
| 35633-30030 |
TT141..3FC |
4 | ||
| 35633-22050 |
TT141..3FC AISIN CHEMICAL |
4 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22030 |
TT141..3FC NSK-WARNER |
4 | ||
| 35633-30030 |
TT141..3FC |
4 | ||
| 35633-22050 |
TT141..3FC AISIN CHEMICAL |
4 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22030 |
TT141..3FC NSK-WARNER |
4 | ||
| 35633-30030 |
TT141..3FC |
4 | ||
| 35633-22050 |
TT141..3FC AISIN CHEMICAL |
4 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22030 |
TT141..3FC NSK-WARNER |
4 | ||
| 35633-30030 |
TT141..3FC |
4 | ||
| 35633-22050 |
TT141..3FC AISIN CHEMICAL |
4 | ||
| 35666C - PLATE, CLUTCH PRESSURE (FOR BRAKE) | ||||
| 35639-22010 |
TT141..3FC |
1 | ||
| 35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER | ||||
| 35707-30010 |
TT141..3FC |
1 | ||
| 35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE) | ||||
| 90521-99140 |
TT141..3FC |
1 | ||
