TT140RG-TWKRS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )TT14#,YT140..MTM

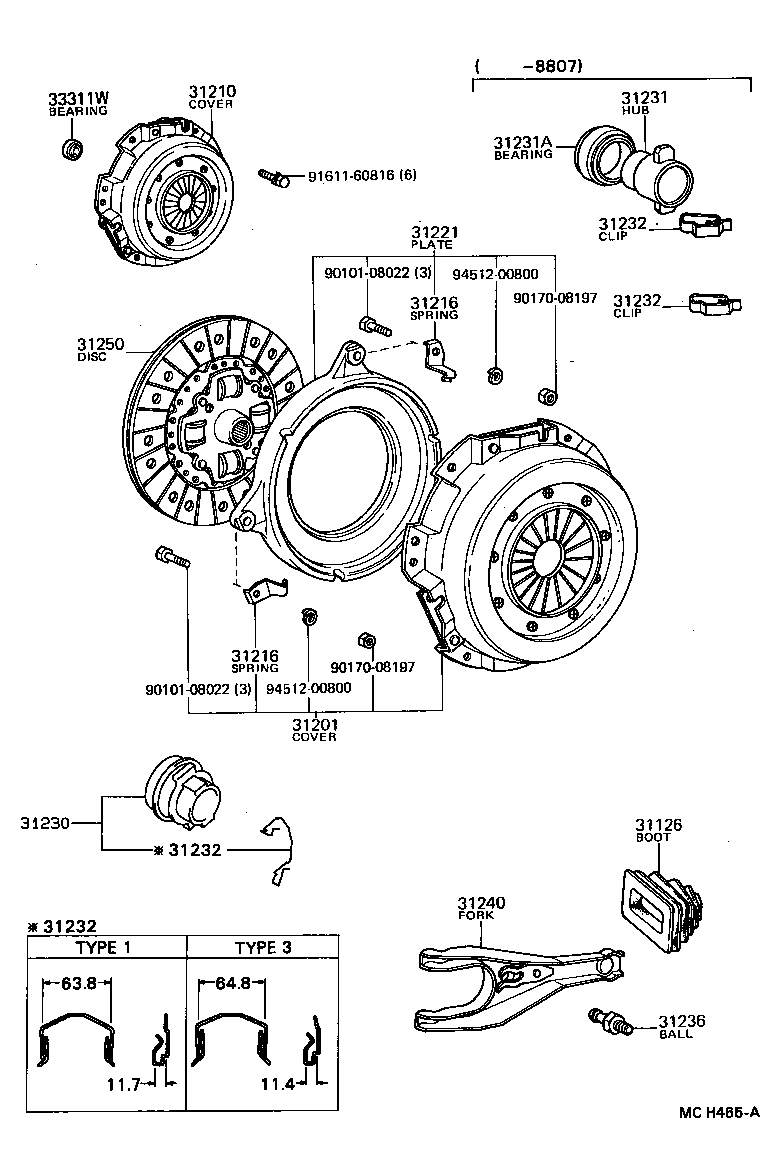

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31230 31231 31231A 31232 31232 31232 31232 31236 31240 31250 33311W 9010108022 9010108022 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

CT14#,ST141,TT14#..MTM..(GEN,ME)

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-19065

RT140,TT140..4F,5F

 1
31210 - COVER ASSY, CLUTCH
31210-14070

TT140..4F,5F

 1
31216 - SPRING, CLUTCH RETRACTING
31216-20020

RT140,TT14#..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-20020

RT140,TT14#..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-19015

TT140..4F,5F

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-20081

TT14#..4F,5F

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

CT14#,RT14#,ST141,TT14#,YT140..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

CT14#,RT14#,ST141,TT14#,YT140..MTM

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

CT14#,RT14#,ST141,TT14#,YT140..MTM

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

CT14#,RT14#,ST141,TT14#,YT140..MTM

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

CT14#,RT14#,ST141,TT14#,YT140..MTM

 2
31236 - BALL, RELEASE FORK
31236-30060

CT14#,RT14#,ST141,TT14#,YT140..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20080

TT14#..4F,5F

 1
31250 - DISC ASSY, CLUTCH
31250-14090

TT140..4F,5F

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12003

TT14#..MTM

 1
Common parts
90101-08022
90170-08197
91611-60816
94512-00800
