TT140R-TEYRS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)SED

Click highlighted areas on diagram

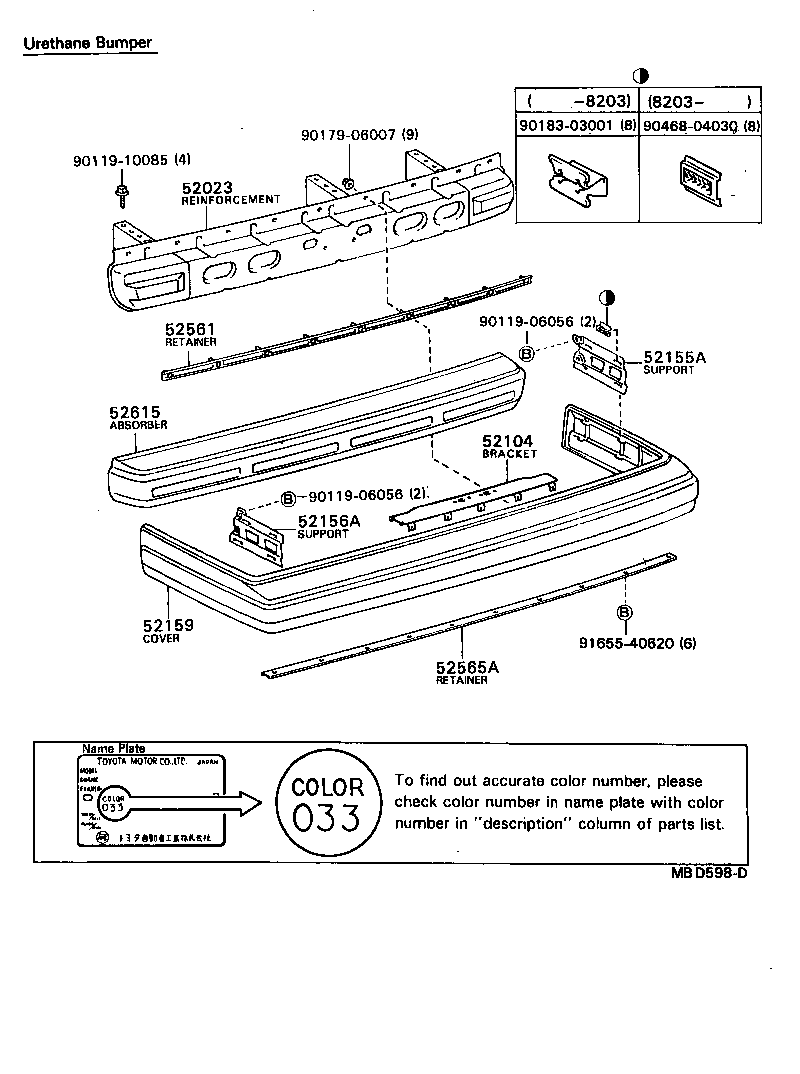

diagram 52023 52104 52155A 52156A 52159 52561 52565A 52615 9011906056 9011906056 9011910085 9017906007 9018303001 9046804030 9165540620
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-20100

CT140,RT140,TT14#..SED

W/P.P.BUMPER

 1
52023-20070

CT140,RT140,TT14#..SED..(GEN,PHL)

W/*UB

 1
52104 - BRACKET SUB-ASSY, REAR BUMPER
52108-20050

CT140,RT140,TT14#..SED

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-20070

CT140,RT140,TT14#..SED

W/*UB

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-20080

CT140,RT140,TT14#..SED

W/*UB

 1
52159 - COVER, REAR BUMPER
52159-20070

CT140,RT140,TT14#..SED

W/*UB

 1
52159-20090

CT140,RT140,TT14#..SED..(DLX,STD,TAX)

W/P.P.BUMPER,W/O MOULDING

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-20030

CT140,RT140,TT14#..SED

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-20020

CT140,RT140,TT14#..SED

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-20020

CT140,RT140,TT14#..SED

 1
Common parts
90119-06056
90119-10085
90179-06007
90183-03001
90468-04030
91655-40620

(8201-8612)SED

Click highlighted areas on diagram

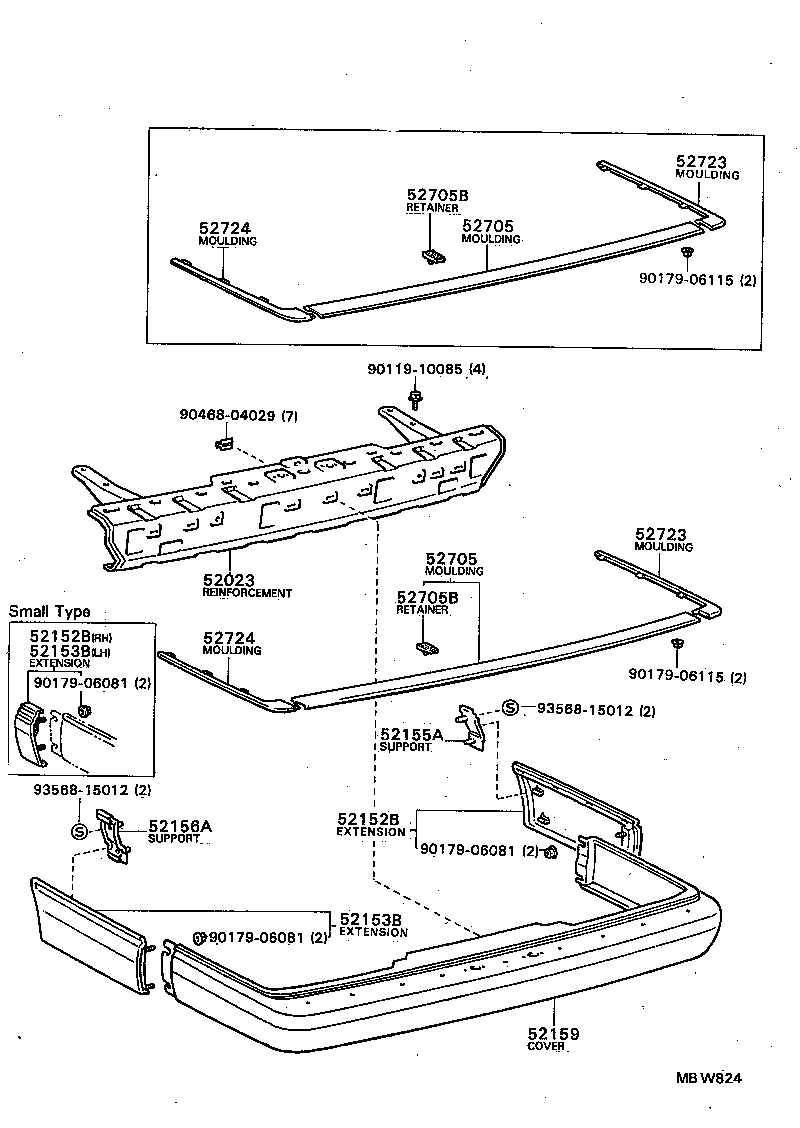

diagram 52023 52152B 52152B 52153B 52153B 52155A 52156A 52159 52705 52705 52705B 52705B 52723 52723 52724 52724 9011910085 9017906081 9017906081 9017906081 9017906115 9017906115 9046804029 9356815012 9356815012
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-20100

CT140,RT140,TT14#..SED

W/P.P.BUMPER

 1
52023-20070

CT140,RT140,TT14#..SED..(GEN,PHL)

W/*UB

 1
52152B - EXTENSION, REAR BUMPER, RH
52106-29105

CT140,RT140,TT14#..SED..(DLX,STD,TAX)

SMALL TYPE

 1
52152B - EXTENSION, REAR BUMPER, RH
52106-29105

CT140,RT140,TT14#..SED..(DLX,STD,TAX)

SMALL TYPE

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-29225

CT140,RT140,TT14#..SED..(DLX,STD,TAX)

SMALL TYPE

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-29225

CT140,RT140,TT14#..SED..(DLX,STD,TAX)

SMALL TYPE

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-20070

CT140,RT140,TT14#..SED

W/*UB

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-20080

CT140,RT140,TT14#..SED

W/*UB

 1
52159 - COVER, REAR BUMPER
52159-20070

CT140,RT140,TT14#..SED

W/*UB

 1
52159-20090

CT140,RT140,TT14#..SED..(DLX,STD,TAX)

W/P.P.BUMPER,W/O MOULDING

 1
52723 - MOULDING, REAR BUMPER EXTENSION, RH
52752-20021

CT140,RT140,TT14#..SED..(DLX,STD,TAX)

SMALL TYPE

 1
52723 - MOULDING, REAR BUMPER EXTENSION, RH
52752-20021

CT140,RT140,TT14#..SED..(DLX,STD,TAX)

SMALL TYPE

 1
52724 - MOULDING, REAR BUMPER EXTENSION, LH
52753-20021

CT140,RT140,TT14#..SED..(DLX,STD,TAX)

SMALL TYPE

 1
52724 - MOULDING, REAR BUMPER EXTENSION, LH
52753-20021

CT140,RT140,TT14#..SED..(DLX,STD,TAX)

SMALL TYPE

 1
Common parts
90119-10085
90179-06081
90179-06115
90468-04029
93568-15012
