TT140R-TEYRS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)TT14#..RHD

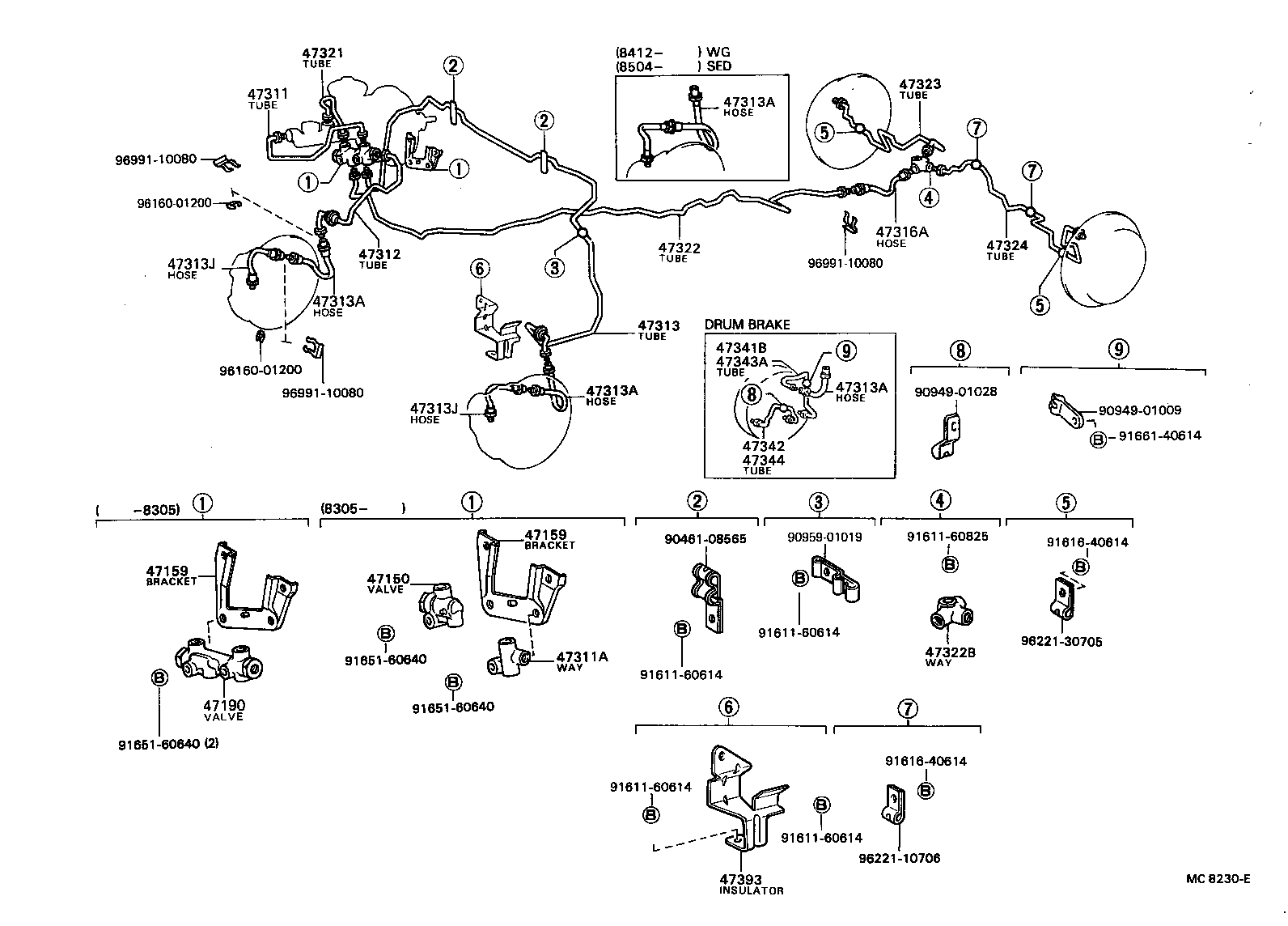

Click highlighted areas on diagram

diagram 47150 47159 47159 47190 47311 47311A 47312 47313 47313A 47313A 47313A 47313A 47313J 47313J 47316A 47321 47322 47322B 47323 47324 47341B 47342 47343A 47344 47393 9046108565 9094901009 9094901028 9095901019 9161160614 9161160614 9161160614 9161160614 9161160825 9161640614 9161640614 9165160640 9165160640 9165160640 9166140614 9616001200 9616001200 9622110706 9622130705 9699110080 9699110080 9699110080
Part # Description Qty Price
47159 - BRACKET, PROPORTIONING VALVE
47159-14020

CT140,TT14#..RHD

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-14020

CT140,TT14#..RHD

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-22030

CT140,TT14#..RHD

FR DISC BRAKE

 1
47190-22040

TT140..3H

FR DRUM BRAKE

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14210

CT140,TT14#..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14110

CT140,TT14#..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20180

CT140,TT14#..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33554

TT140..3H,4H

FR DRUM BRAKE

 2
90947-02426

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33554

TT140..3H,4H

FR DRUM BRAKE

 2
90947-02426

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33554

TT140..3H,4H

FR DRUM BRAKE

 2
90947-02426

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33554

TT140..3H,4H

FR DRUM BRAKE

 2
90947-02426

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

CT140,RT140,TT14#..DLX,GL,STD

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

CT140,RT140,TT14#..DLX,GL,STD

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32855

CT14#,RT140,ST141,TT14#,YT140..SED..(GEN,ME,PHL)

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-14090

TT14#..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20150

TT140..3H

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

CT14#,RT14#,ST141,TT14#,YT140

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-14042

CT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-14052

CT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-20060

TT140..3H,4H

FR DRUM BRAKE

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-20020

TT140..3H,4H

FR DRUM BRAKE

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-20040

TT140..3H,4H

FR DRUM BRAKE

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47344-20020

TT140..3H,4H

FR DRUM BRAKE

 1
Common parts
90461-08565
90949-01009
90949-01028
90959-01019
91611-60614
91611-60825
91616-40614
91651-60640
91661-40614
96160-01200
96221-10706
96221-30705
96991-10080
