TT140R-TEMDS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1984
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )SED

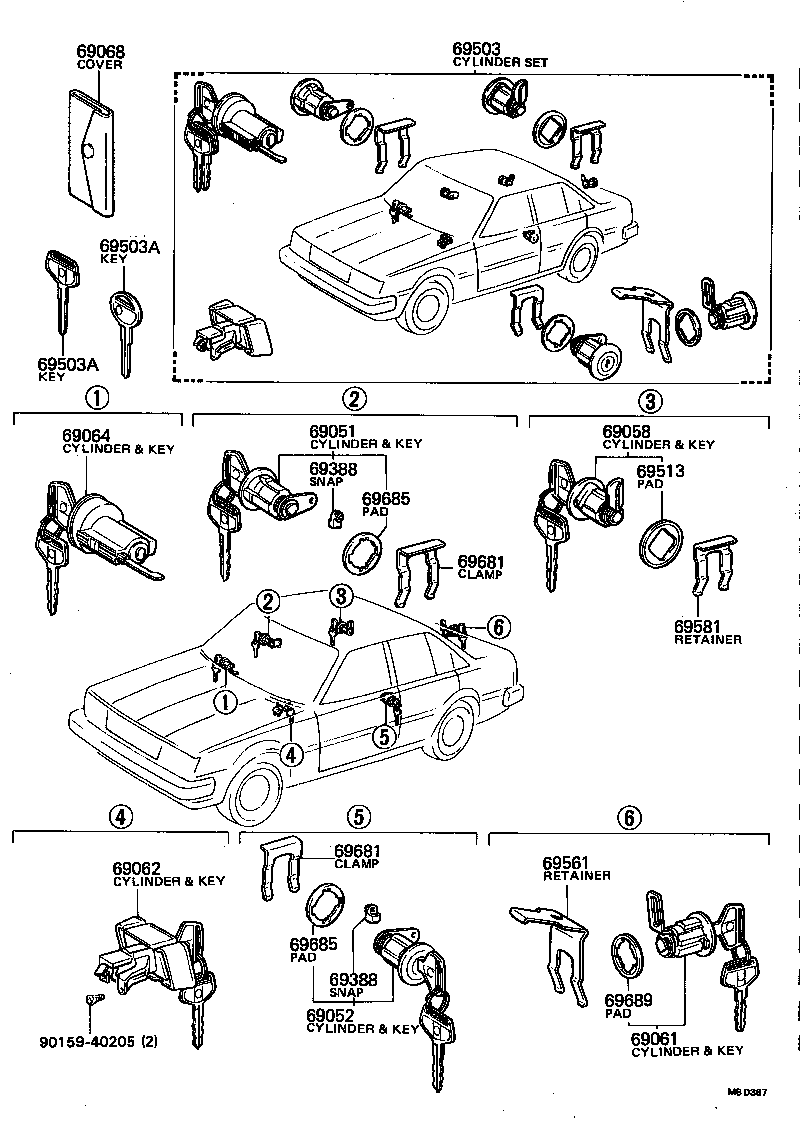

Click highlighted areas on diagram

diagram 69051 69052 69058 69061 69062 69064 69068 69388 69388 69503 69503A 69503A 69513 69561 69581 69681 69681 69685 69685 69689 9015940205
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-20200

CT14#,RT14#,ST141,TT14#..SED

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-20190

CT14#,RT14#,ST141,TT14#..SED

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-14060

CT14#,RT14#,ST141,TT14#..SED

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-19375

CT14#,RT14#,ST141,TT14#..SED

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-1403016

CT140,RT14#,ST141,TT14#..SED

SADDLE BROWN,BROWN

 1
69056-1403001

CT14#,RT14#,ST141,TT14#..SED

BLACK,BLACK

 1
69056-1403004

CT140,RT14#,ST141,TT14#..SED

BLUE,BLUE

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-14050

CT140,RT140,TT14#..SED

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

CT14#,RT14#,ST141,TT14#

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24090

CT14#,RT14#,ST141,TT14#

FR DOOR,BROWN

 2
69759-24080

CT14#,RT14#,ST141,TT14#

FR DOOR,YELLOW

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24090

CT14#,RT14#,ST141,TT14#

FR DOOR,BROWN

 2
69759-24080

CT14#,RT14#,ST141,TT14#

FR DOOR,YELLOW

 1
69503 - CYLINDER SET, LOCK
69005-2014004

CT140,RT14#,ST141,TT14#..SED

BLUE,BLUE

 1
69005-2014006

CT140,RT14#,ST141,TT14#..SED

SADDLE BROWN,BROWN

 1
69005-2014001

CT140,RT14#,ST141,TT14#..SED

BLACK,BLACK

 1
69503A - KEY, BLANK
90999-00068

CT14#,RT14#,ST141,TT14#..SED

SUB KEY,SUB KEY

 1
90999-00066

CT14#,RT14#,ST141,TT14#..SED

MASTER KEY,MASTER KEY

 2
69503A - KEY, BLANK
90999-00068

CT14#,RT14#,ST141,TT14#..SED

SUB KEY,SUB KEY

 1
90999-00066

CT14#,RT14#,ST141,TT14#..SED

MASTER KEY,MASTER KEY

 2
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69513-14010

CT14#,RT14#,ST141,TT14#..SED

 1
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69561-20030

CT14#,RT14#,ST141,TT14#..SED

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69581-14010

CT14#,RT14#,ST141,TT14#

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

CT14#,RT14#,ST141,TT14#

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

CT14#,RT14#,ST141,TT14#

 2
69685 - PAD, LOCK CYLINDER
69513-12020

CT14#,RT14#,ST141,TT14#

 2
69685 - PAD, LOCK CYLINDER
69513-12020

CT14#,RT14#,ST141,TT14#

 2
69689 - PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER
69685-12010

CT14#,RT14#,ST141,TT14#..SED

 1
Common parts
90159-40205
