TT140R-TEMDS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1984
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

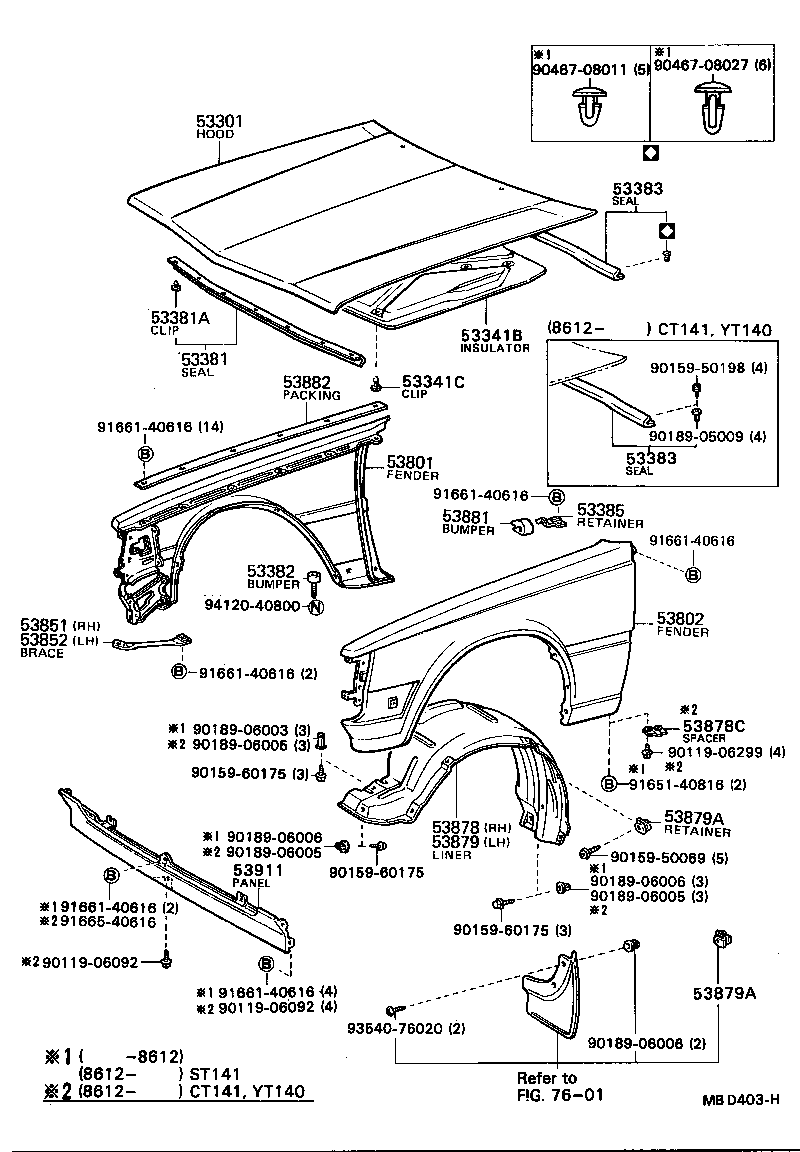

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53382 53383 53383 53385 53801 53802 53851 53852 53878 53878C 53879 53879A 53879A 53881 53882 53911 7601 9011906092 9011906092 9011906299 9015950069 9015950198 9015960175 9015960175 9015960175 9018905009 9018906003 9018906005 9018906005 9018906005 9018906006 9018906006 9018906006 9046708011 9046708027 9165140816 9166140616 9166140616 9166140616 9166140616 9166140616 9166140616 9166540616 9354076020 9412040800
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-20150

CT140,RT140,TT14#

CKD

 1
53301-20140

TT141..SED;TT141..WG..4F;CT140,ST141,TT140

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-14090

CT14#,RT14#,ST141,TT14#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

CT14#,RT14#,ST141,TT14#

 7
53382 - BUMPER, HOOD, FRONT
53382-20011

CT140,RT14#,ST141,TT14#

 2
53383 - SEAL, HOOD TO COWL TOP
53383-14080

CT14#,RT14#,ST141,TT14#

 1
53383 - SEAL, HOOD TO COWL TOP
53383-14080

CT14#,RT14#,ST141,TT14#

 1
53385 - RETAINER, HOOD, BUMPER
53385-14010

CT14#,RT14#,ST141,TT14#

RH

 1
53386-14010

CT14#,RT14#,ST141,TT14#

LH

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-20480

TT141..SED;CT140,TT140;TT141..WG..4F

 1
53801-20570

TT141..SED..RHD;CT140,TT140..RHD;TT141..WG..RHD..4F

W/POLE TYPE ANTENNA

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-20570

TT141..SED;CT140,TT140;TT141..WG..4F

 1
53851 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH
53851-14010

CT14#,RT14#,ST141,TT14#

 1
53852 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH
53852-14010

CT14#,RT14#,ST141,TT14#

 1
53878 - LINER, FRONT FENDER, RH
53875-20040

CT14#,RT14#,ST141,TT14#

 1
53879 - LINER, FRONT FENDER, LH
53876-20050

CT14#,RT14#,ST141,TT14#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

CT14#,RT14#,ST141,TT14#

 10
53879A - RETAINER, FRONT FENDER LINER
53879-14010

CT14#,RT14#,ST141,TT14#

 10
53881 - BUMPER, FENDER TO HOOD
53384-14030

CT14#,RT14#,ST141,TT14#

 2
53882 - PACKING, FRONT FENDER MAIN
53882-14090

CT14#,RT14#,ST141,TT14#

 2
53911 - PANEL, FRONT VALANCE
53911-20080

CT14#,RT14#,ST141,TT14#

 1
Common parts
90119-06092
90119-06299
90159-50069
90159-50198
90159-60175
90189-05009
90189-06003
90189-06005
90189-06006
90467-08011
90467-08027
91651-40816
91661-40616
91665-40616
93540-76020
94120-40800
Linked diagrams
7601
