TT140R-TEMDS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1984
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

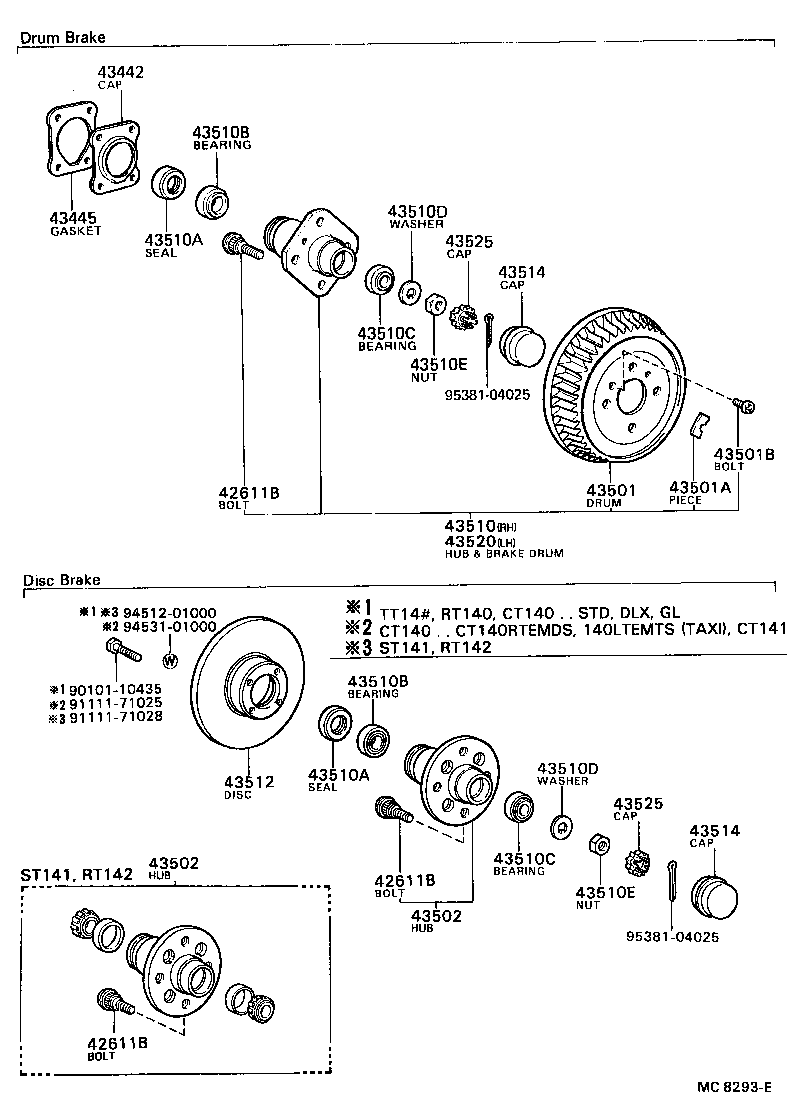

Click highlighted areas on diagram

diagram 42611B 42611B 42611B 43442 43445 43501 43501A 43501B 43502 43502 43510 43510A 43510A 43510B 43510B 43510C 43510C 43510D 43510D 43510E 43510E 43512 43514 43514 43520 43525 43525 9010110435 9111171025 9111171028 9451201000 9453101000 9538104025 9538104025
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02036

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 8
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02036

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 8
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02036

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 8
43502 - HUB SUB-ASSY, FRONT AXLE
43502-14030

CT140,RT140,ST141,TT14#..DLX,GL,STD

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43502-14030

CT140,RT140,ST141,TT14#..DLX,GL,STD

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-41123

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-41123

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-29068

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-29068

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-17017

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-17017

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-16010

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-16010

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-16137

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-16137

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43512 - DISC, FRONT
43512-14070

CT140,RT140,ST141,TT14#..DLX,GL,STD

 2
43514 - CAP, FRONT HUB GREASE
43514-20010

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43514 - CAP, FRONT HUB GREASE
43514-20010

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-20011

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-20011

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
Common parts
90101-10435
91111-71025
91111-71028
94512-01000
94531-01000
95381-04025
