TT140R-TEMDS (1982)
Toyota Corona Fr
(8201-8412)TT140..4F..ME ; (8201-8412)TT140..RHD..4F,5F ; (8201-8508)CT140,TT141..S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-22010 |
CT140,RT140,TT14# |
3 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-14140 |
TT140..4F..ME;TT140..RHD..(4F,5F) 3-JOINT,SHELL |
1 | ||
| 37110-22035 |
TT140..4F..ME;TT140..RHD..(4F,5F) 3-JOINT,SOLID |
1 | ||
| 37110-15030 |
TT140..SED..(4F,5F)..GEN 2-JOINT |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
CT140,RT140,TT14# |
8 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
CT140,RT140,TT14# |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-14130 |
TT140..4F..ME;TT140..RHD..(4F,5F) SHELL |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
TT140..ME;TT140..SED..RHD OD=33.5,T=4.0,T=4,OD=33.5 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
TT140..ME;TT140..SED..RHD OD=33.5,T=4.0,T=4,OD=33.5 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
TT140..ME;TT140..SED..RHD |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
TT140..ME;TT140..SED..RHD |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-24010 |
TT140..ME;TT140..SED..RHD |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
TT140..ME;TT140..SED..RHD |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10010 |
TT140..ME;TT140..SED..RHD T=12.0,T=12.0 |
2 | ||
| 90201-10017 |
TT140..ME;TT140..SED..RHD T=9.0,T=9.0 |
2 | ||
| 90201-10008 |
TT140..ME;TT140..SED..RHD T=4.5,T=4.5 |
2 | ||
| 90201-10033 |
TT140..ME;TT140..SED..RHD T=6.5,T=6.5 |
2 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-14030 |
TT14#..4F,5F |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22012 |
TT140..4F..ME;TT140..RHD..(4F,5F) |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22012 |
TT140..4F..ME;TT140..RHD..(4F,5F) |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-20020 |
CT140,RT140,TT14# |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-20020 |
CT140,RT140,TT14# |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-12010 |
TT14#..4F,5F |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90521-29070 |
CT140,RT140,TT14# T=2.375-2.425,T=2.4 |
12 | ||
| 90521-29072 |
CT140,RT140,TT14# T=2.475-2.525,T=2.5 |
12 | ||
| 90521-29073 |
CT140,RT140,TT14# T=2.525-2.575,T=2.55 |
12 | ||
| 90521-29071 |
CT140,RT140,TT14# T=2.425-2.475,T=2.45 |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-22020 |
CT140,RT140,TT14# |
12 | ||
| Common parts | ||||
| 90170-08007 | ||||
| 90170-08015 | ||||
| 90170-09007 | ||||
| 94512-00800 | ||||

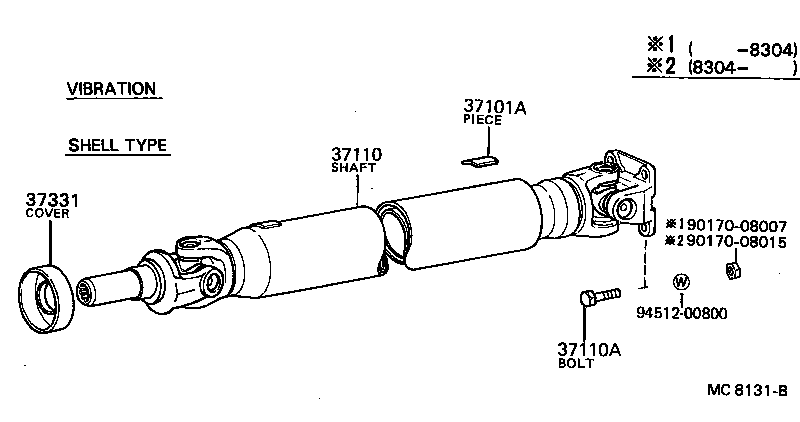

(8201-8412)TT140..GEN ; (8201-8508)TT141..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01140 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 30G,L=62.2,30G |
2 | ||
| 90937-01153 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 16G,L=33.2,16G |
2 | ||
| 90937-01155 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 22G,L=45.6,22G |
2 | ||
| 90937-01136 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 20G,L=41.4,20G |
2 | ||
| 90937-01154 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 18G,L=37.3,18G |
2 | ||
| 90937-01156 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 24G,L=49.7,24G |
2 | ||
| 90937-01148 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 4G,T=2.0,4G |
2 | ||
| 90937-01158 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 28G,L=58.1,28G |
2 | ||
| 90937-01157 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 26G,L=53.9,26G |
2 | ||
| 90937-01147 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 2G,T=2.0,2G |
2 | ||
| 90937-01149 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 6G,L=12.4,6G |
2 | ||
| 90937-01132 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 10G,L=20.7,10G |
2 | ||
| 90937-01151 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 12G,L=24.9,12G |
2 | ||
| 90937-01150 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 8G,L=16.6,8G |
2 | ||
| 90937-01152 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 14G,L=29.0,14G |
2 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-14140 |
TT140..4F..ME;TT140..RHD..(4F,5F) 3-JOINT,SHELL |
1 | ||
| 37110-22035 |
TT140..4F..ME;TT140..RHD..(4F,5F) 3-JOINT,SOLID |
1 | ||
| 37110-15030 |
TT140..SED..(4F,5F)..GEN 2-JOINT |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
CT140,RT140,TT14# |
8 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-12010 |
TT14#..4F,5F |
1 | ||
| Common parts | ||||
| 90170-08007 | ||||
| 90170-08015 | ||||
| 94512-00800 | ||||

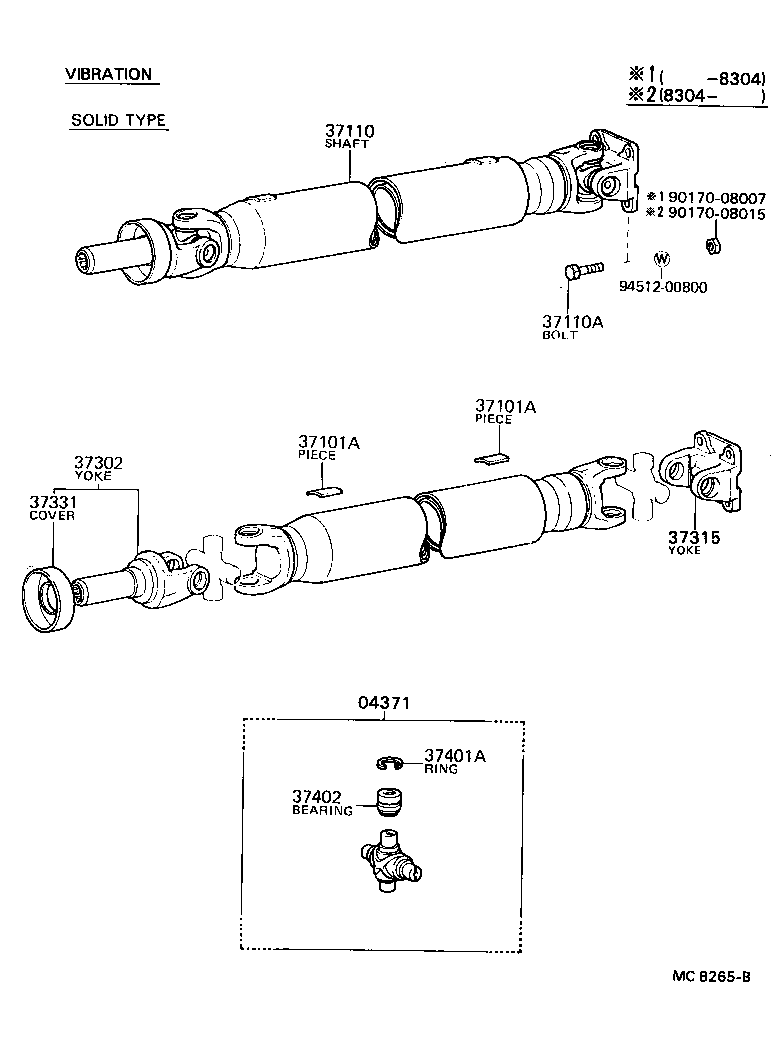

(8201-8412)TT140..GEN ; (8201-8508)TT141..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-22010 |
CT140,RT140,TT14# |
3 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01140 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 30G,L=62.2,30G |
2 | ||
| 90937-01153 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 16G,L=33.2,16G |
2 | ||
| 90937-01155 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 22G,L=45.6,22G |
2 | ||
| 90937-01136 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 20G,L=41.4,20G |
2 | ||
| 90937-01154 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 18G,L=37.3,18G |
2 | ||
| 90937-01156 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 24G,L=49.7,24G |
2 | ||
| 90937-01148 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 4G,T=2.0,4G |
2 | ||
| 90937-01158 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 28G,L=58.1,28G |
2 | ||
| 90937-01157 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 26G,L=53.9,26G |
2 | ||
| 90937-01147 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 2G,T=2.0,2G |
2 | ||
| 90937-01149 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 6G,L=12.4,6G |
2 | ||
| 90937-01132 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 10G,L=20.7,10G |
2 | ||
| 90937-01151 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 12G,L=24.9,12G |
2 | ||
| 90937-01150 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 8G,L=16.6,8G |
2 | ||
| 90937-01152 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 14G,L=29.0,14G |
2 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01140 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 30G,L=62.2,30G |
2 | ||
| 90937-01153 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 16G,L=33.2,16G |
2 | ||
| 90937-01155 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 22G,L=45.6,22G |
2 | ||
| 90937-01136 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 20G,L=41.4,20G |
2 | ||
| 90937-01154 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 18G,L=37.3,18G |
2 | ||
| 90937-01156 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 24G,L=49.7,24G |
2 | ||
| 90937-01148 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 4G,T=2.0,4G |
2 | ||
| 90937-01158 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 28G,L=58.1,28G |
2 | ||
| 90937-01157 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 26G,L=53.9,26G |
2 | ||
| 90937-01147 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 2G,T=2.0,2G |
2 | ||
| 90937-01149 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 6G,L=12.4,6G |
2 | ||
| 90937-01132 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 10G,L=20.7,10G |
2 | ||
| 90937-01151 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 12G,L=24.9,12G |
2 | ||
| 90937-01150 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 8G,L=16.6,8G |
2 | ||
| 90937-01152 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 14G,L=29.0,14G |
2 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-14140 |
TT140..4F..ME;TT140..RHD..(4F,5F) 3-JOINT,SHELL |
1 | ||
| 37110-22035 |
TT140..4F..ME;TT140..RHD..(4F,5F) 3-JOINT,SOLID |
1 | ||
| 37110-15030 |
TT140..SED..(4F,5F)..GEN 2-JOINT |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
CT140,RT140,TT14# |
8 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-14030 |
TT14#..4F,5F |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-20020 |
CT140,RT140,TT14# |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-12010 |
TT14#..4F,5F |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90521-29070 |
CT140,RT140,TT14# T=2.375-2.425,T=2.4 |
12 | ||
| 90521-29072 |
CT140,RT140,TT14# T=2.475-2.525,T=2.5 |
12 | ||
| 90521-29073 |
CT140,RT140,TT14# T=2.525-2.575,T=2.55 |
12 | ||
| 90521-29071 |
CT140,RT140,TT14# T=2.425-2.475,T=2.45 |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-22020 |
CT140,RT140,TT14# |
12 | ||
| Common parts | ||||
| 90170-08007 | ||||
| 90170-08015 | ||||
| 94512-00800 | ||||

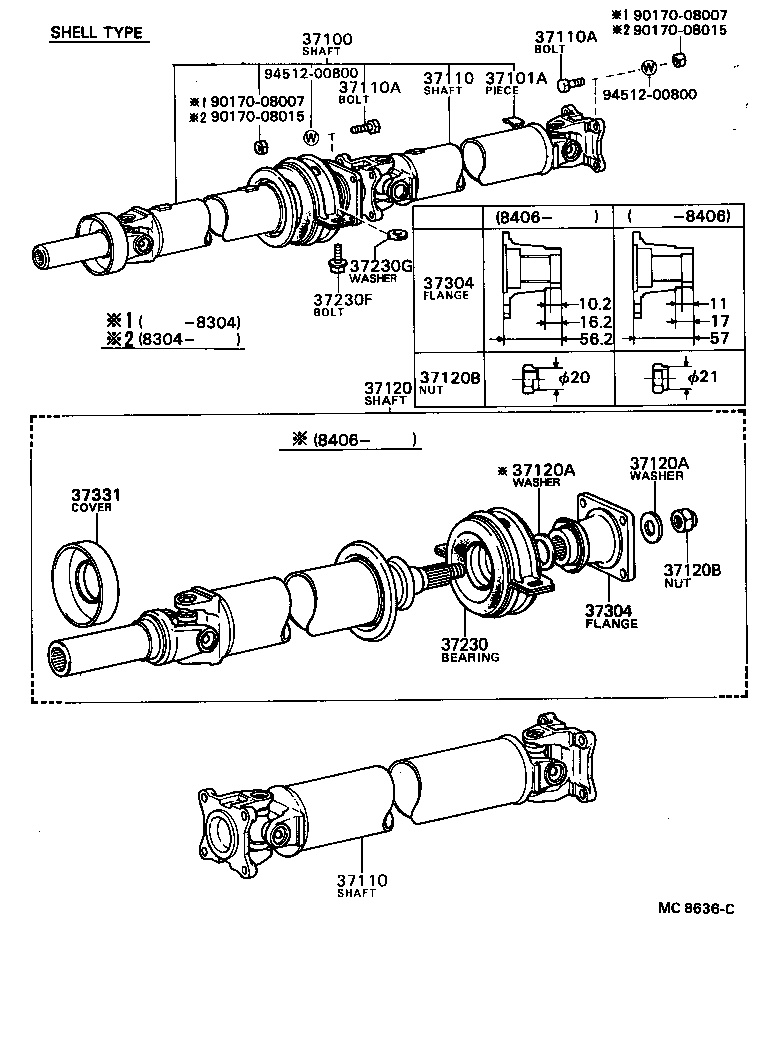

(8201-8412)TT140..4F..ME ; (8201-8508)CT140,TT141..SED ; (8304-8508)TT140..RHD..4F,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-14270 |
TT140..4F..ME;TT140..SED..RHD..(4F,5F) |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01140 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 30G,L=62.2,30G |
2 | ||
| 90937-01153 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 16G,L=33.2,16G |
2 | ||
| 90937-01155 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 22G,L=45.6,22G |
2 | ||
| 90937-01136 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 20G,L=41.4,20G |
2 | ||
| 90937-01154 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 18G,L=37.3,18G |
2 | ||
| 90937-01156 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 24G,L=49.7,24G |
2 | ||
| 90937-01148 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 4G,T=2.0,4G |
2 | ||
| 90937-01158 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 28G,L=58.1,28G |
2 | ||
| 90937-01157 |
CT14#,RT140,ST141,TT14#..GEN,ME,PHL 26G,L=53.9,26G |
2 | ||
| 90937-01147 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 2G,T=2.0,2G |
2 | ||
| 90937-01149 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 6G,L=12.4,6G |
2 | ||
| 90937-01132 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 10G,L=20.7,10G |
2 | ||
| 90937-01151 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 12G,L=24.9,12G |
2 | ||
| 90937-01150 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 8G,L=16.6,8G |
2 | ||
| 90937-01152 |
CT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL 14G,L=29.0,14G |
2 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-14140 |
TT140..4F..ME;TT140..RHD..(4F,5F) 3-JOINT,SHELL |
1 | ||
| 37110-22035 |
TT140..4F..ME;TT140..RHD..(4F,5F) 3-JOINT,SOLID |
1 | ||
| 37110-15030 |
TT140..SED..(4F,5F)..GEN 2-JOINT |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-14140 |
TT140..4F..ME;TT140..RHD..(4F,5F) 3-JOINT,SHELL |
1 | ||
| 37110-22035 |
TT140..4F..ME;TT140..RHD..(4F,5F) 3-JOINT,SOLID |
1 | ||
| 37110-15030 |
TT140..SED..(4F,5F)..GEN 2-JOINT |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
CT140,RT140,TT14# |
8 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
CT140,RT140,TT14# |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-14130 |
TT140..4F..ME;TT140..RHD..(4F,5F) SHELL |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
TT140..ME;TT140..SED..RHD OD=33.5,T=4.0,T=4,OD=33.5 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
TT140..ME;TT140..SED..RHD OD=33.5,T=4.0,T=4,OD=33.5 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
TT140..ME;TT140..SED..RHD |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
TT140..ME;TT140..SED..RHD |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-24010 |
TT140..ME;TT140..SED..RHD |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
TT140..ME;TT140..SED..RHD |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10010 |
TT140..ME;TT140..SED..RHD T=12.0,T=12.0 |
2 | ||
| 90201-10017 |
TT140..ME;TT140..SED..RHD T=9.0,T=9.0 |
2 | ||
| 90201-10008 |
TT140..ME;TT140..SED..RHD T=4.5,T=4.5 |
2 | ||
| 90201-10033 |
TT140..ME;TT140..SED..RHD T=6.5,T=6.5 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22012 |
TT140..4F..ME;TT140..RHD..(4F,5F) |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22012 |
TT140..4F..ME;TT140..RHD..(4F,5F) |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-12010 |
TT14#..4F,5F |
1 | ||
| Common parts | ||||
| 90170-08007 | ||||
| 90170-08015 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
