TT140R-TEMDS (1982)
Toyota Corona Fr
Production
Jan 1982
-
Dec 1984
Engine
2T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8508)2T,3T

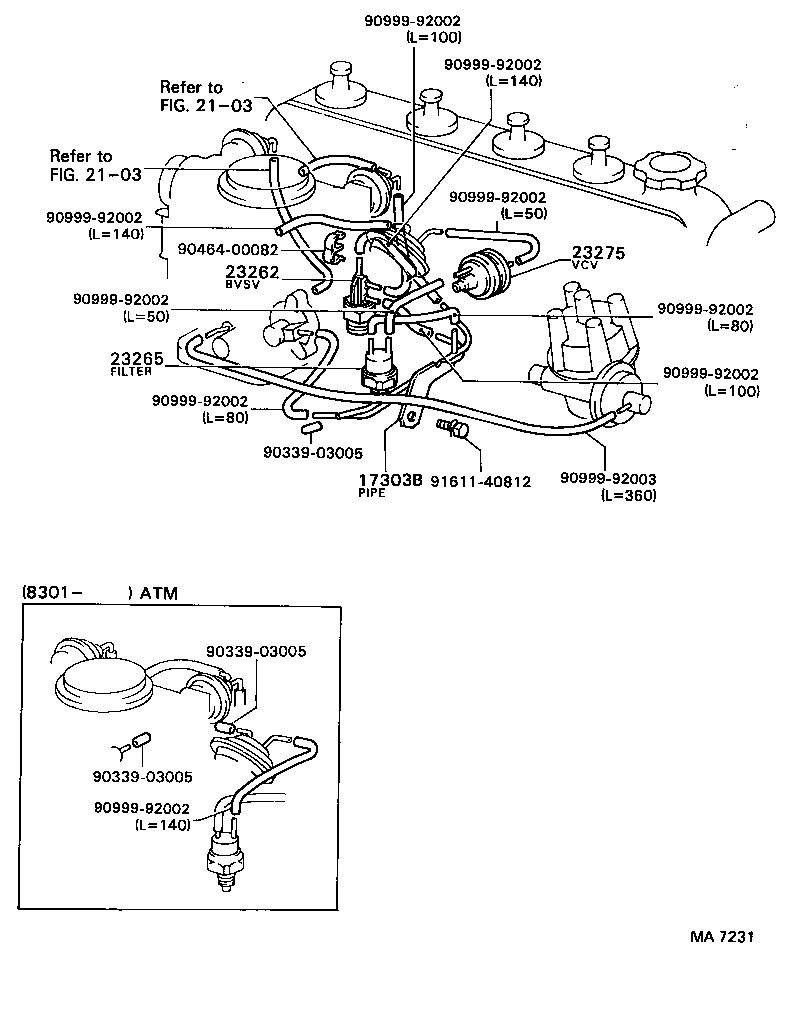

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-26120 |
2T,3T..TT14# |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-15010 |
2T,3T..TT14# |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
2T,3T..TT14# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03074 |
2T,3T..TT14# |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-40812 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(8201- )2T,3T
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
