TT140R-TEMDS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1984
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)2T,3T

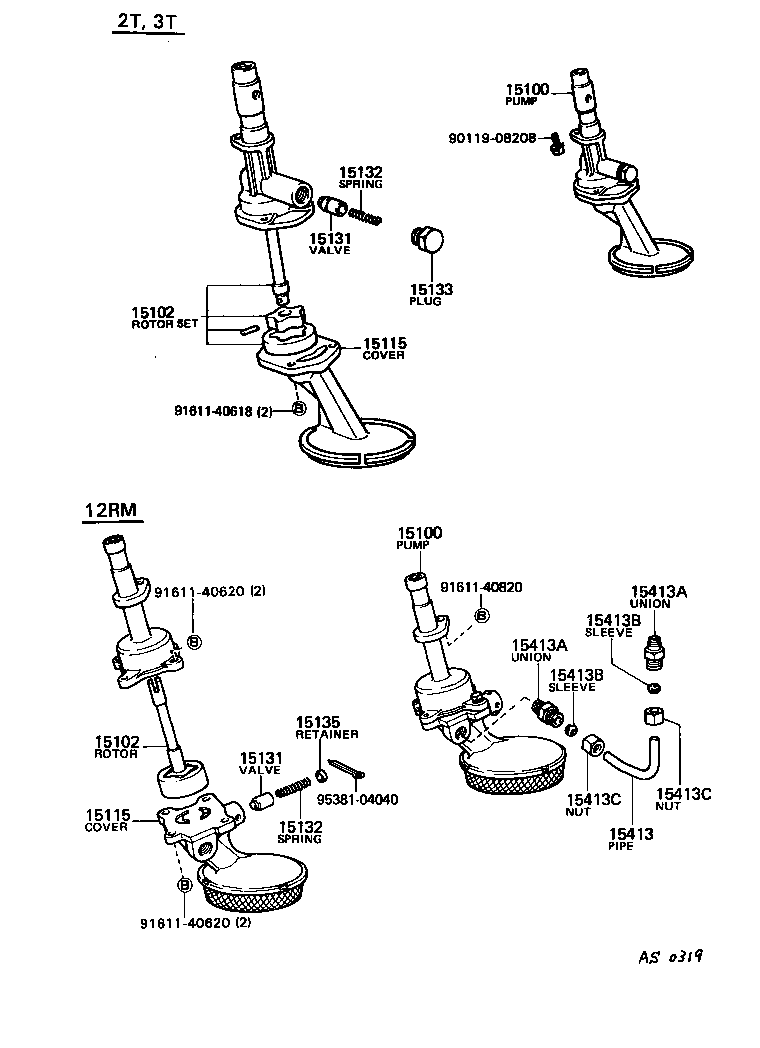

Click highlighted areas on diagram

MA3764D,MA3356A

diagram 15100 15100 15102 15102 15115 15115 15131 15131 15132 15132 15133 15135 15413 15413A 15413A 15413B 15413B 15413C 15413C 9011908208 9161140618 9161140620 9161140620 9161140820 9538104040
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-26020

2T,3T..TT14#

 1
15100 - PUMP ASSY, OIL
15100-26020

2T,3T..TT14#

 1
15102 - ROTOR SET, OIL PUMP
15102-25010

2T,3T..TT14#

 1
15102 - ROTOR SET, OIL PUMP
15102-25010

2T,3T..TT14#

 1
15115 - COVER, OIL PUMP
15012-26020

2T,3T..TT14#

 1
15115 - COVER, OIL PUMP
15012-26020

2T,3T..TT14#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

2T,3T..TT14#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

2T,3T..TT14#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2T,3T..TT14#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2T,3T..TT14#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-41030

2T,3T..TT14#

 1
Common parts
90119-08208
91611-40618
91611-40620
91611-40820
95381-04040
