TT140R-TEKRS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

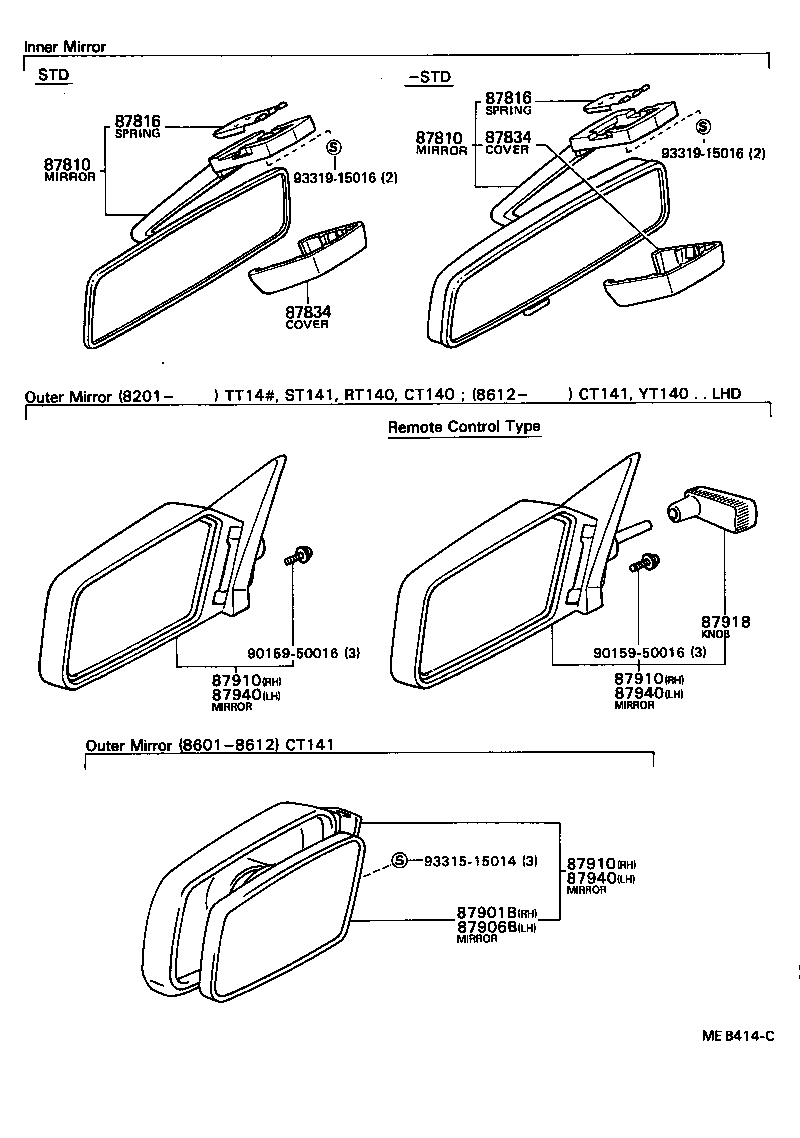

Click highlighted areas on diagram

diagram 87810 87810 87816 87816 87834 87834 87901B 87906B 87910 87910 87910 87918 87940 87940 87940 9015950016 9015950016 9331515014 9331915016 9331915016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1407103

CT140,RT140,TT140..STD

GRAY,GRAY

 1
87810-1901503

CT140,RT14#,ST141,TT14#..CS,CSI,CSX,CXI,DLX,GL,S,TAX

GRAY,GRAY

 1
87810-1901508

CT140,RT14#,ST141,TT14#..CS,CSI,CSX,CXI,DLX,GL,S,TAX

IVORY,IVORY

 1
87810-1407108

CT140,RT140,TT140..STD

IVORY,IVORY

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1407103

CT140,RT140,TT140..STD

GRAY,GRAY

 1
87810-1901503

CT140,RT14#,ST141,TT14#..CS,CSI,CSX,CXI,DLX,GL,S,TAX

GRAY,GRAY

 1
87810-1901508

CT140,RT14#,ST141,TT14#..CS,CSI,CSX,CXI,DLX,GL,S,TAX

IVORY,IVORY

 1
87810-1407108

CT140,RT140,TT140..STD

IVORY,IVORY

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

CT14#,RT14#,ST141,TT14#,YT140

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

CT14#,RT14#,ST141,TT14#,YT140

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008033

CT140,RT14#,ST141,TT14#

GRAY,GRAY

 1
87834-2008008

CT140,RT14#,ST141,TT14#

IVORY,IVORY

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008033

CT140,RT14#,ST141,TT14#

GRAY,GRAY

 1
87834-2008008

CT140,RT14#,ST141,TT14#

IVORY,IVORY

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-14350

CT140,TT14#..RHD..(DLX,STD)

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-14350

CT140,TT14#..RHD..(DLX,STD)

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-14350

CT140,TT14#..RHD..(DLX,STD)

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-14390

CT140,TT14#..RHD..(DLX,STD)

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-14390

CT140,TT14#..RHD..(DLX,STD)

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-14390

CT140,TT14#..RHD..(DLX,STD)

 1
Common parts
90159-50016
93315-15014
93319-15016
