TT140R-TEKRS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

Click highlighted areas on diagram

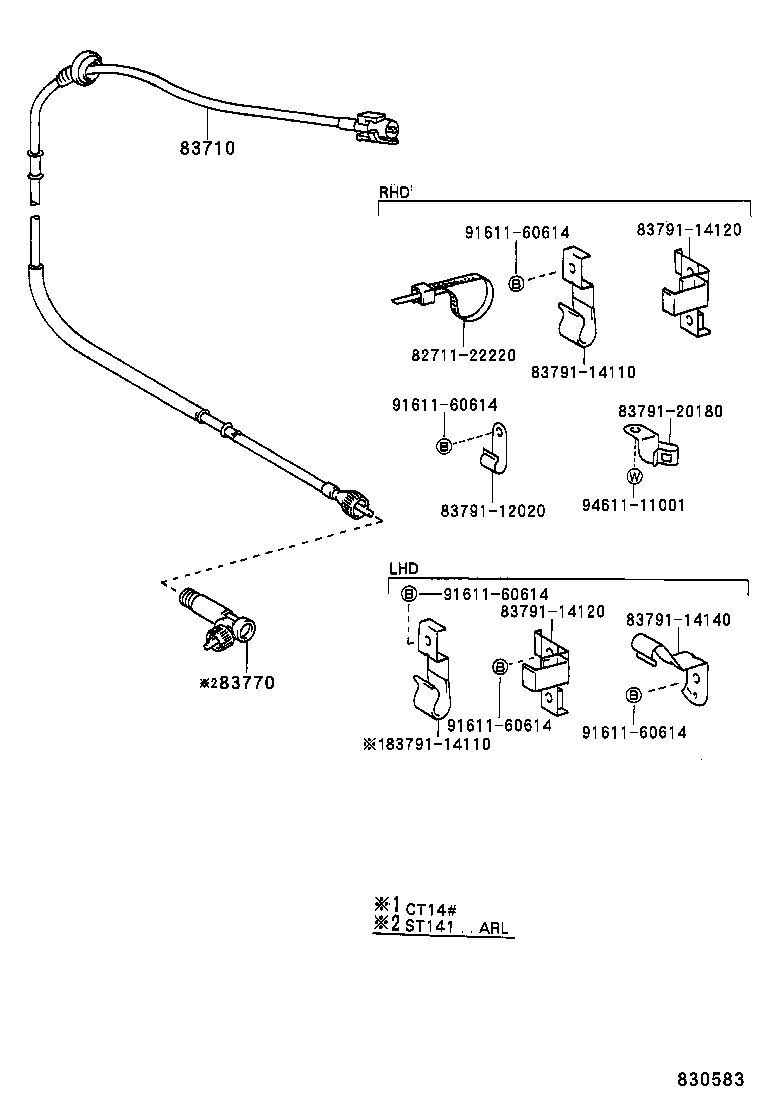

diagram 8271122220 83710 83770 8379112020 8379114110 8379114110 8379114120 8379114120 8379114140 8379120180 9161160614 9161160614 9161160614 9161160614 9161160614 9461111001
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-14310

TT14#..RHD..(4F,5F)

 1
Common parts
82711-22220
83791-12020
83791-14110
83791-14120
83791-14140
83791-20180
91611-60614
94611-11001

(8201-8508)RHD..3FC,4F,5F..DLX,STD ; (8508-8612)CS,S ; (8508-8612)RT142..WG

Click highlighted areas on diagram

diagram 83100B 83100B 83100G 83101 83101 83102 83110 83128 83132 83134 83145 83145 83145A 83145B 83145C 83145D 8316120300 8316120300 8316120380 8316120380 83179 83310 83410 83909 83910 83919 9316120300 9356755016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CT14#,RT14#,ST141,TT14#,YT140

12V 3.4W,12V 3.4W

 11
90981-11018

CT14#,RT14#,ST141,TT14#,YT140

12V 1.2W W/O SOCKET,12V 1.4W

 7
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CT14#,RT14#,ST141,TT14#,YT140

12V 3.4W,12V 3.4W

 11
90981-11018

CT14#,RT14#,ST141,TT14#,YT140

12V 1.2W W/O SOCKET,12V 1.4W

 7
83100G - GLASS, COMBINATION METER
83138-2B080

TT140..RHD..4F..STD

 1
83138-2B100

CT140,TT14#..RHD..(3FC,4F,5F)..(DLX,STD)

W/ANALOGUE CLOCK

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

CT14#,RT14#,ST141,TT14#,YT140

BULB:12V 1.4W(OD=11.3)

 11
83101-20040

CT14#,RT142,ST141,TT14#,YT140..RHD

BULB:12V 3.4W(OD=18)

 10
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

CT14#,RT14#,ST141,TT14#,YT140

BULB:12V 1.4W(OD=11.3)

 11
83101-20040

CT14#,RT142,ST141,TT14#,YT140..RHD

BULB:12V 3.4W(OD=18)

 10
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-2B140

CT140,TT14#..RHD..(3FC,4F,5F)..(DLX,STD)

 1
83110 - SPEEDOMETER ASSY
83110-20770

CT140,TT14#..RHD..(3FC,4F,5F)..(DLX,STD)

MILE & KM,W/ANALOGUE CLOCK

 1
83110-20750

CT140,TT14#..RHD..(3FC,4F,5F)..(DLX,STD)

KM

 1
83128 - KNOB, TRIP COUNTER
83128-20710

CT140,TT14#..RHD..(DLX,STD)

W/O CLOCK OR W/ANALOGUE CLOCK

 1
83132 - CASE, COMBINATION METER
83132-2B060

CT140,TT14#..RHD..(3FC,4F,5F)..(DLX,STD)

W/O CLOCK OR W/ANALOGUE CLOCK

 1
83134 - COVER, COMBINATION METER, NO.1
83134-2B220

CT140,TT14#..RHD..(3FC,4F,5F)

 1
83145 - LENS, METER, NO.1
83145-2B060

CT14#,RT142,TT14#,YT140..RHD

TURN

 2
83145 - LENS, METER, NO.1
83145-2B060

CT14#,RT142,TT14#,YT140..RHD

TURN

 2
83145A - LENS, METER, NO.2
83145-2B080

CT14#,RT142,TT14#,YT140..RHD

BEAM

 1
83145B - LENS, METER, NO.3
83145-2B300

CT140,TT14#..RHD..(3FC,4F,5F)..(DLX,STD)

W/ANALOGUE CLOCK

 1
83145-2B260

TT140..RHD..4F..STD

 1
83145C - LENS, METER, NO.4
83145-2B280

CT140,TT14#..RHD..(3FC,4F,5F)..(DLX,STD)

 1
83145D - LENS, METER, NO.5
83145-2B340

CT140,RT142,TT14#..RHD

W/CLOCK

 1
83179 - COVER, COMBINATION METER, HOLE
83145-2B320

TT140..RHD..4F..STD

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-2B080

CT140,TT14#..RHD..(3FC,4F,5F)..(DLX,STD)

W/CLOCK

 1
83243-2B060

TT140..RHD..4F..STD

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-2B040

CT140,TT14#..RHD..(3FC,4F,5F)..(DLX,STD)

 1
83909 - KNOB, CLOCK
83909-14012

CT140,ST141,TT14#..RHD..(3FC,4F,5F)..(CS,DLX,S,STD)

ANALOGUE

 1
83910 - CLOCK ASSY
83910-20300

CT140,TT14#..RHD..(3FC,4F,5F)..(DLX,STD)

ANALOGUE

 1
83919 - SCREW, CLOCK
83919-14012

CT140,ST141,TT14#..RHD..(3FC,4F,5F)..(CS,DLX,S,STD)

ANALOGUE

 1
Common parts
83161-20300
83161-20380
93161-20300
93567-55016
