TT140R-TEKRS (1982)
Toyota Corona Fr
Production
Jan 1982
-
Dec 1983
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )CT14#,RT142,ST141,TT14#

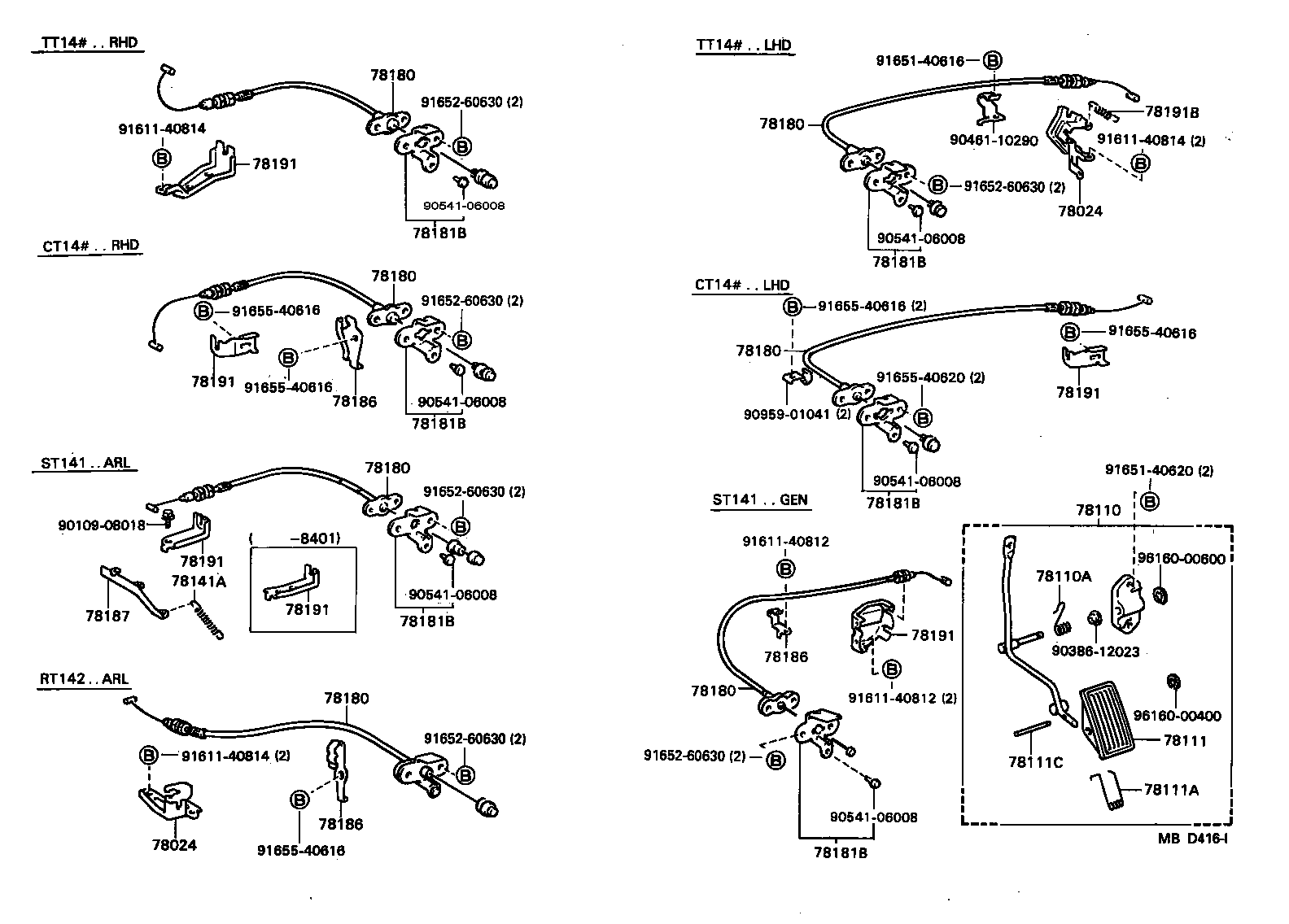

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-14280 |
TT14#..RHD..MTM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26049 |
CT140,TT14#..RHD..MTM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14330 |
TT14#..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14330 |
TT14#..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14330 |
TT14#..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14330 |
TT14#..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14330 |
TT14#..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14330 |
TT14#..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14330 |
TT14#..RHD |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-14060 |
CT14#,ST141,TT14# |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-14060 |
CT14#,ST141,TT14# |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-14060 |
CT14#,ST141,TT14# |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-14060 |
CT14#,ST141,TT14# |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-14060 |
CT14#,ST141,TT14# |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-14060 |
CT14#,ST141,TT14# |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-12050 |
TT14#..RHD |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-12050 |
TT14#..RHD |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-12050 |
TT14#..RHD |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-12050 |
TT14#..RHD |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-12050 |
TT14#..RHD |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-12050 |
TT14#..RHD |
1 | ||
| Common parts | ||||
| 90109-08018 | ||||
| 90386-12023 | ||||
| 90461-10290 | ||||
| 90541-06008 | ||||
| 90959-01041 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| 91652-60630 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
