TT140R-TEKRS (1982)
Toyota Corona Fr
ILLUST NO. 1 OF 2(8201-8508)CT140,RT14#,TT14#..SED ; (8201- )ST141..SED ; (8508- )ST141..SED ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RT140,ST141,TT14# |
1 | ||
| 77023-12050 |
RT140,ST141,TT14# |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
CT140,TT14# |
1 | ||
| 77310-12100 |
CT140,TT14# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 77316-12050 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19095 |
RT140,TT14#..SED |
1 | ||
| 77001-19095 |
RT140,TT14#..SED |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19095 |
RT140,TT14#..SED |
1 | ||
| 77001-19095 |
RT140,TT14#..SED |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
CT140,RT140,TT14#..SED OD=24 |
1 | ||
| 90341-24036 |
CT140,RT140,TT14#..SED OD=24 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
CT140,RT140,TT14#..SED OD=24 |
1 | ||
| 90341-24036 |
CT140,RT140,TT14#..SED OD=24 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
CT140,RT140,TT14#..SED ID=24 |
1 | ||
| 90430-24047 |
CT140,RT140,TT14#..SED ID=24 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
CT140,RT140,TT14#..SED ID=24 |
1 | ||
| 90430-24047 |
CT140,RT140,TT14#..SED ID=24 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-14200 |
CT140,RT140,TT14#..SED |
1 | ||
| 77201-14200 |
CT140,RT140,TT14#..SED |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77213-14090 |
CT140,RT140,TT14#..SED |
1 | ||
| 77213-14090 |
CT140,RT140,TT14#..SED |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77012-14022 |
CT140,RT140,TT14#..SED |
1 | ||
| 77012-14022 |
CT140,RT140,TT14#..SED |
1 | ||
| 77202J - GASKET (FOR BREATHER TUBE) | ||||
| 77179-14030 |
CT140,RT140,TT14#..SED |
1 | ||
| 77179-14030 |
CT140,RT140,TT14#..SED |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-14061 |
RT140,TT14#..SED..(3FC,3H,4F,5F)..(GEN,PHL) W/O FUEL RETURN |
1 | ||
| 77203-14061 |
RT140,TT14#..SED..(3FC,3H,4F,5F)..(GEN,PHL) W/O FUEL RETURN |
1 | ||
| 77203-14061 |
TT141..SED..RHD;TT141..SED..LHD..MTM..GEN;RT140,TT140..SED..(3H,4F,5F)..(GEN,PHL) W/O FUEL RETURN |
1 | ||
| 77203-14061 |
TT141..SED..RHD;TT141..SED..LHD..MTM..GEN;RT140,TT140..SED..(3H,4F,5F)..(GEN,PHL) W/O FUEL RETURN |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
CT140,RT140,TT14#..SED |
1 | ||
| 77169-14020 |
CT140,RT140,TT14#..SED |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-20050 |
CT140,RT14#,ST141,TT14#..SED |
1 | ||
| 77277-20050 |
CT140,RT14#,ST141,TT14#..SED |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77034-14010 |
CT140,RT140,TT14#..SED |
1 | ||
| 77034-14010 |
CT140,RT140,TT14#..SED |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-14040 |
CT140,RT140,ST141,TT14#..SED |
1 | ||
| 77350-14040 |
CT140,RT140,ST141,TT14#..SED |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05009 |
CT140,RT140,TT14#..SED |
2 | ||
| 90541-05009 |
CT140,RT140,TT14#..SED |
2 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 77360-24010 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 77360-24010 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
CT140,RT140,TT14#..SED |
1 | ||
| 77391-14020 |
CT140,RT140,TT14#..SED |
1 | ||
| 77606E - PROTECTOR, FUEL TANK, NO.4 | ||||
| 77641-14080 |
CT140,RT140,TT14#..SED |
1 | ||
| 77641-14080 |
CT140,RT140,TT14#..SED |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-14040 |
CT140,TT14#..SED |
2 | ||
| 77601-14040 |
CT140,TT14#..SED |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-14040 |
CT140,TT14#..SED |
2 | ||
| 77601-14040 |
CT140,TT14#..SED |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
CT140,RT140,TT14#..SED |
2 | ||
| 90240-08020 |
CT140,RT140,TT14#..SED |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77613-14022 |
CT140,RT140,TT14#..SED |
1 | ||
| 77613-14022 |
CT140,RT140,TT14#..SED |
1 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77614-14021 |
CT140,RT140,TT14#..SED |
1 | ||
| 77614-14021 |
CT140,RT140,TT14#..SED |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-14080 |
CT140,RT140,TT14#..SED |
6 | ||
| 77652-14080 |
CT140,RT140,TT14#..SED |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-14080 |
CT140,RT140,TT14#..SED |
6 | ||
| 77652-14080 |
CT140,RT140,TT14#..SED |
6 | ||
| Common parts | ||||
| 90119-06165 | ||||
| 90159-50093 | ||||
| 90159-50099 | ||||
| 90159-50160 | ||||
| 90159-60055 | ||||
| 90159-60135 | ||||
| 90159-60152 | ||||
| 90179-05020 | ||||
| 90179-06039 | ||||
| 90179-10074 | ||||
| 90179-12016 | ||||
| 90183-06006 | ||||
| 90183-06065 | ||||
| 90460-63008 | ||||
| 90463-05004 | ||||
| 90463-12005 | ||||
| 90467-12009 | ||||
| 90468-14004 | ||||
| 91615-60820 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 96111-10630 | ||||
| Linked diagrams | ||||
| 6105 | ||||

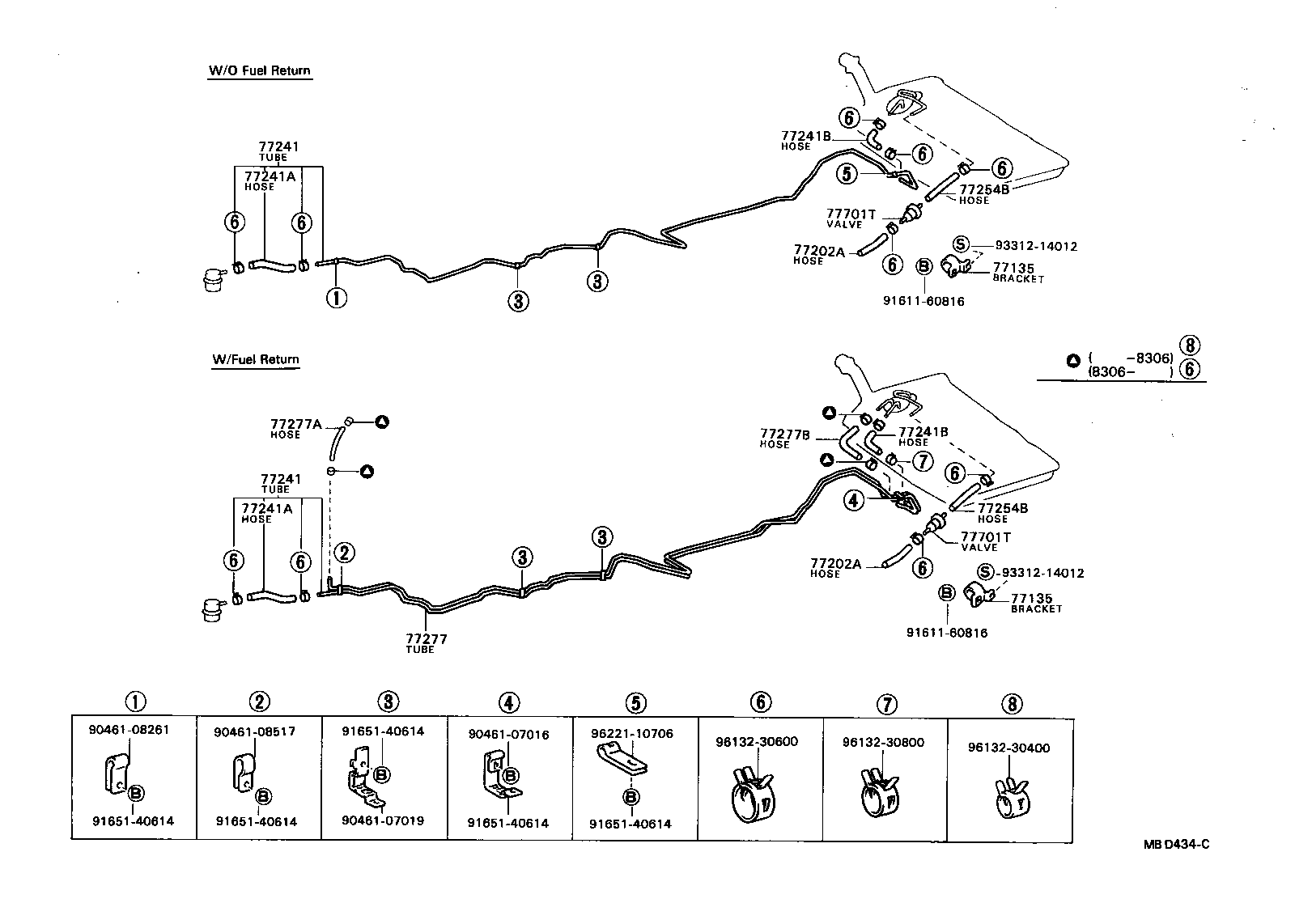

ILLUST NO. 2 OF 2(8201-8508)RT140,TT14#..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-14021 |
CT140,RT140,TT14#..SED |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-14021 |
CT140,RT140,TT14#..SED |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95332-06010 |
CT140,RT140,TT14#..SED *H,L=70 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95332-06010 |
CT140,RT140,TT14#..SED *H,L=70 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14171 |
RT140,TT14#..SED |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14171 |
RT140,TT14#..SED |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RT140,TT14# *H,L=150 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RT140,TT14# *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
RT140,TT14#..SED *H,L=300 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
RT140,TT14#..SED *H,L=300 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
CT140,RT140,TT14#..SED *H,L=180 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
CT140,RT140,TT14#..SED *H,L=180 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
CT140,RT140,TT14# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
CT140,RT140,TT14# |
1 | ||
| Common parts | ||||
| 90461-07016 | ||||
| 90461-07019 | ||||
| 90461-08261 | ||||
| 90461-08517 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
| 93312-14012 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96221-10706 | ||||
