TT140R-TEKRS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )SED

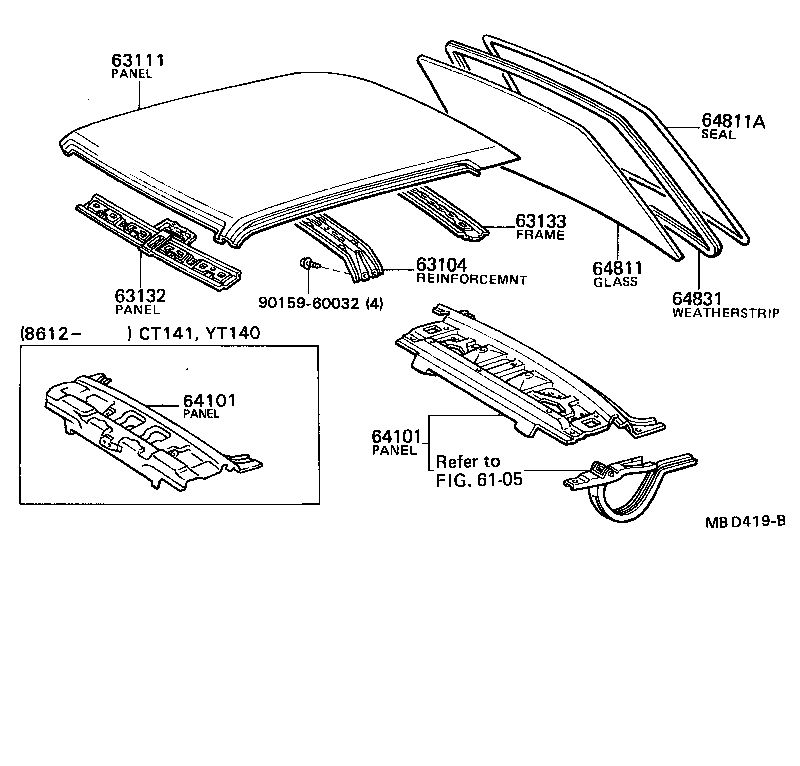

Click highlighted areas on diagram

diagram 6105 63104 63111 63132 63133 64101 64101 64811 64811A 64831 9015960032
Part # Description Qty Price
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63103-20020

CT140,RT140,ST141,TT14#..SED..(ARL,GEN,PHL)

W/SUSPENDED HEADLINING

 1
63141-20030

CT140,TT14#..SED

W/MOULDED HEADLINING

 1
63111 - PANEL, ROOF
63111-20120

CT14#,RT14#,ST141,TT14#..SED

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-14030

CT140,RT14#,ST141,TT14#

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-20080

CT14#,RT14#,ST141,TT14#..SED

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20160

CT140,RT140,TT14#..SED

W/O RECLINING RR SEAT

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20160

CT140,RT140,TT14#..SED

W/O RECLINING RR SEAT

 1
64811 - GLASS, BACK WINDOW
64811-20380

TT140..SED..STD

*TEM,T=3.5,*TEM,T=3.5

 1
64801-20010

CT140,RT140,TT14#..SED

*EHTT,T=3.5,*EHTT,T=3.5

 1
64811A - SEAL, BACK WINDOW GLASS WEATHERSTRIP
64814-14020

CT14#,RT14#,ST141,TT14#..SED

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-20010

CT14#,RT14#,ST141,TT14#..SED

 1
Common parts
90159-60032
Linked diagrams
6105
