TT140R-TEKRS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

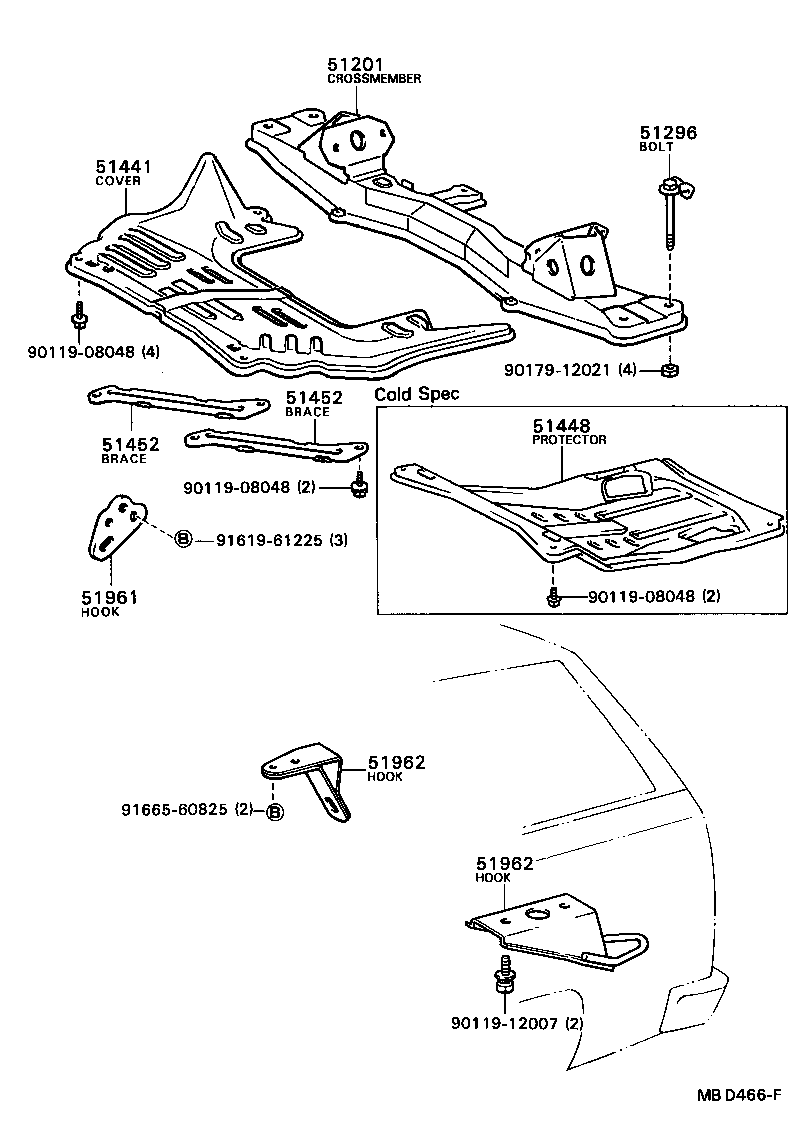

ILLUST NO. 1 OF 2(8201- )

Click highlighted areas on diagram

diagram 51201 51296 51441 51448 51452 51452 51961 51962 51962 9011908048 9011908048 9011908048 9011912007 9017912021 9161961225 9166560825
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-14140

TT14#..SED..RHD..(3FC,4F,5F)

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-24010

TT14#..SED..(3FC,4F,5F)

 4
51441 - COVER, ENGINE UNDER, NO.1
51441-14060

TT14#

 1
51961 - HOOK, NO.1
51963-14060

CT140,RT140,TT14#

 2
Common parts
90119-08048
90119-12007
90179-12021
91619-61225
91665-60825
