TT140R-TEKDS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1984
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

Click highlighted areas on diagram

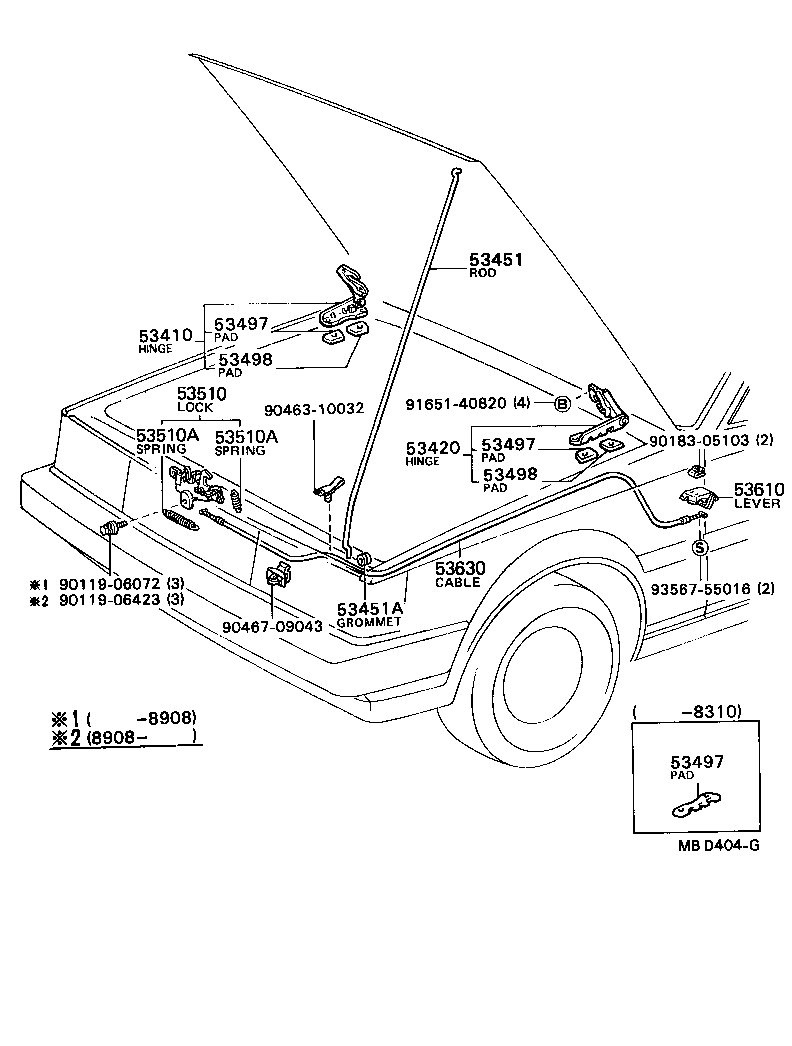

diagram 53410 53420 53451 53451A 53497 53497 53497 53498 53498 53510 53510A 53510A 53610 53630 9011906072 9011906423 9018305103 9046310032 9046709043 9165140820 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-14060

CT14#,RT14#,ST141,TT14#

 1
53420 - HINGE ASSY, HOOD, LH
53420-14040

CT14#,RT14#,ST141,TT14#

 1
53451 - ROD, HOOD SUPPORT
53451-14040

CT14#,RT14#,ST141,TT14#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15011

CT14#,RT14#,ST141,TT14#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-14010

CT140,RT140,ST141,TT14#

 2
53497 - PAD, HOOD HINGE, NO.1
53497-14010

CT140,RT140,ST141,TT14#

 2
53497 - PAD, HOOD HINGE, NO.1
53497-14010

CT140,RT140,ST141,TT14#

 2
53510 - LOCK ASSY, HOOD
53510-20110

CT140,ST141,TT14#..RHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

CT14#,RT14#,ST141,TT14#

WD=2.0,CW=17,WD=2.0

 1
90506-09008

CT14#,RT14#,ST141,TT14#

WD=0.9,CW=21.25,WD=0.9,L=34.4

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

CT14#,RT14#,ST141,TT14#

WD=2.0,CW=17,WD=2.0

 1
90506-09008

CT14#,RT14#,ST141,TT14#

WD=0.9,CW=21.25,WD=0.9,L=34.4

 1
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-1401001

CT140,RT14#,ST141,TT14#

BLACK,BLACK

 1
53601-1401004

CT140,RT14#,ST141,TT14#..SED

BLUE,BLUE

 1
53601-1401016

CT140,RT14#,ST141,TT14#

SADDLE BROWN,BROWN

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-14230

CT140,TT14#..RHD

 1
Common parts
90119-06072
90119-06423
90183-05103
90463-10032
90467-09043
91651-40820
93567-55016
