TT140R-TEKDS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1984
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

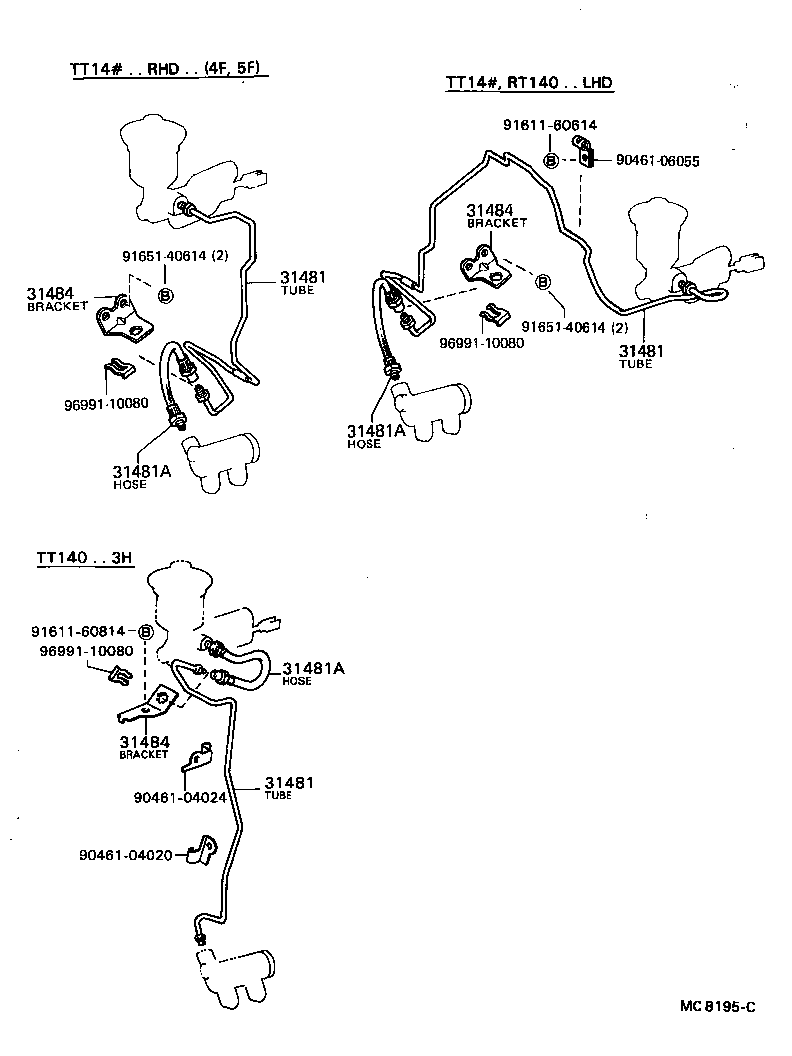

ILLUST NO. 2 OF 2(8201-8508)RT140,TT14#..MTM

Click highlighted areas on diagram

diagram 31481 31481 31481 31481A 31481A 31481A 31484 31484 31484 9046104020 9046104024 9046106055 9161160614 9161160814 9165140614 9165140614 9699110080 9699110080 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14090

TT14#..RHD..(4F,5F)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14090

TT14#..RHD..(4F,5F)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14090

TT14#..RHD..(4F,5F)

 1
31481A - HOSE, CLUTCH, NO.1
96940-32404

TT14#..4F,4H,5F

 1
31481A - HOSE, CLUTCH, NO.1
96940-32404

TT14#..4F,4H,5F

 1
31481A - HOSE, CLUTCH, NO.1
96940-32404

TT14#..4F,4H,5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-14050

CT14#,RT14#,ST141,TT14#..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-14050

CT14#,RT14#,ST141,TT14#..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-14050

CT14#,RT14#,ST141,TT14#..MTM

 1
Common parts
90461-04020
90461-04024
90461-06055
91611-60614
91611-60814
91651-40614
96991-10080

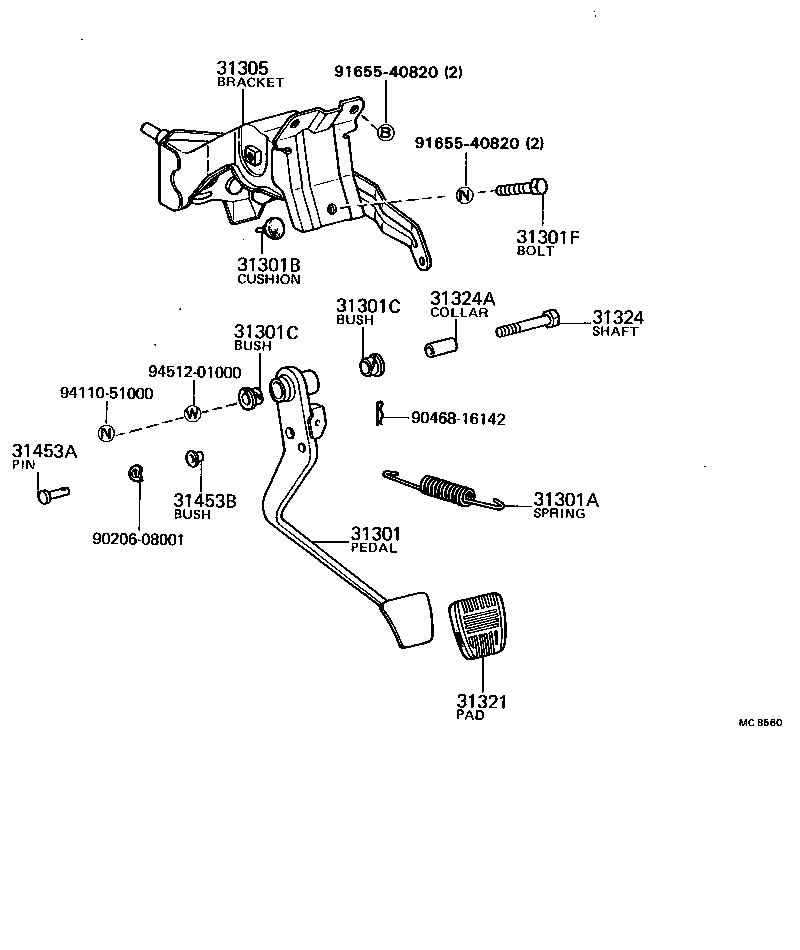

ILLUST NO. 1 OF 2(8201- )MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31453A 31453B 9020608001 9046816142 9165540820 9165540820 9411051000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-14050

CT140,TT14#..RHD..(4F,5F)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14002

CT14#,RT14#,ST141,TT14#,YT140..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

CT14#,RT14#,ST141,TT14#,YT140..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

CT140,RT14#,ST141,TT14#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

CT140,RT14#,ST141,TT14#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

CT14#,RT14#,ST141,TT14#,YT140..MTM

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-24010

CT140,ST141,TT14#..RHD..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

CT140,RT140,TT14#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

CT14#,RT14#,ST141,TT14#,YT140..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10021

CT14#,RT142,ST141,TT14#,YT140..RHD..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

RT140,TT14#..MTM

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

CT14#,RT142,ST141,TT14#,YT140..RHD..MTM

 1
Common parts
90206-08001
90468-16142
91655-40820
94110-51000
94512-01000
