TT140LG-TWKRS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8203)

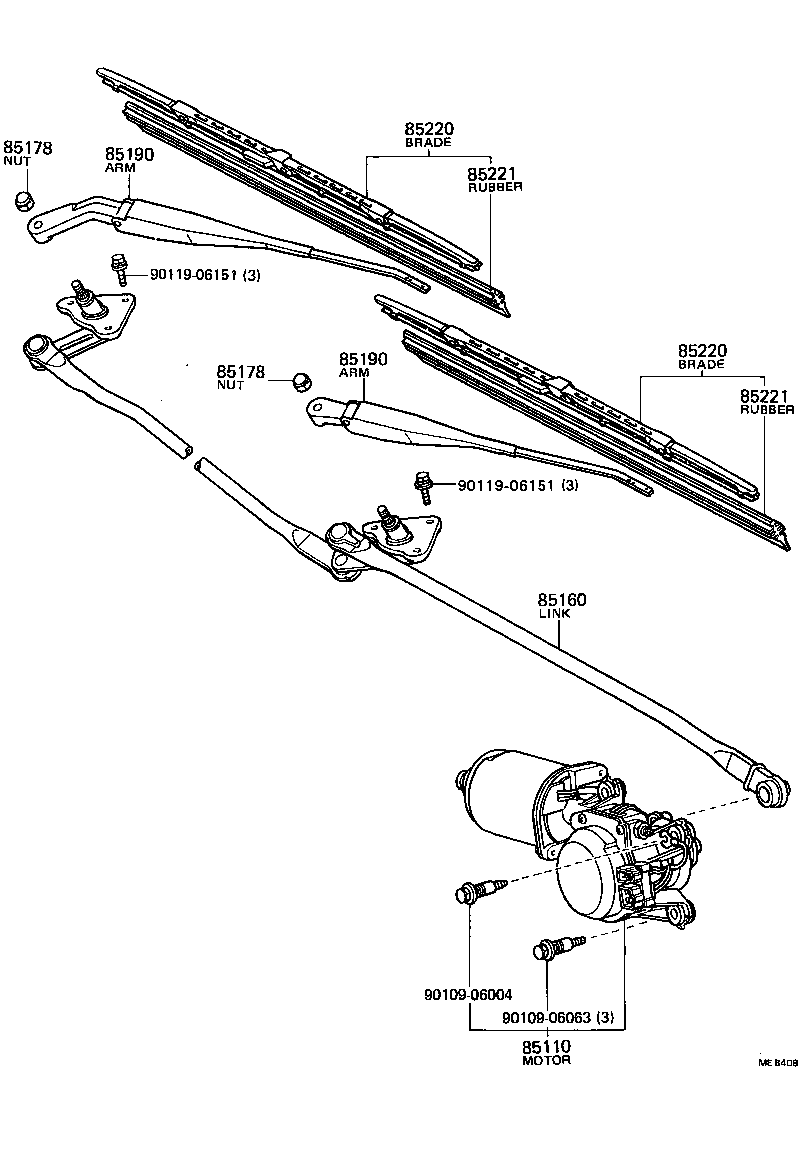

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85220 85220 85221 85221 9010906004 9010906063 9011906151 9011906151
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-14170

CT140,RT140,TT14#..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-14230

CT140,RT140,ST141,TT14#..LHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08029

CT140,RT14#,ST141,TT14#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08029

CT140,RT14#,ST141,TT14#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-14350

CT140,RT140,TT14#..LHD

RH

 1
85210-14080

CT140,RT140,TT14#..LHD

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-14350

CT140,RT140,TT14#..LHD

RH

 1
85210-14080

CT140,RT140,TT14#..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-14370

CT140,RT140,TT14#..LHD

RH

 1
85220-14320

CT140,RT140,TT14#..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-14370

CT140,RT140,TT14#..LHD

RH

 1
85220-14320

CT140,RT140,TT14#..LHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-12120

CT140,RT140,TT14#..LHD

 2
85221 - BLADE, WINDSHIELD WIPER
85221-12120

CT140,RT140,TT14#..LHD

 2
Common parts
90109-06004
90109-06063
90119-06151

(8203- )CT140,RT14#,ST141,TT14#

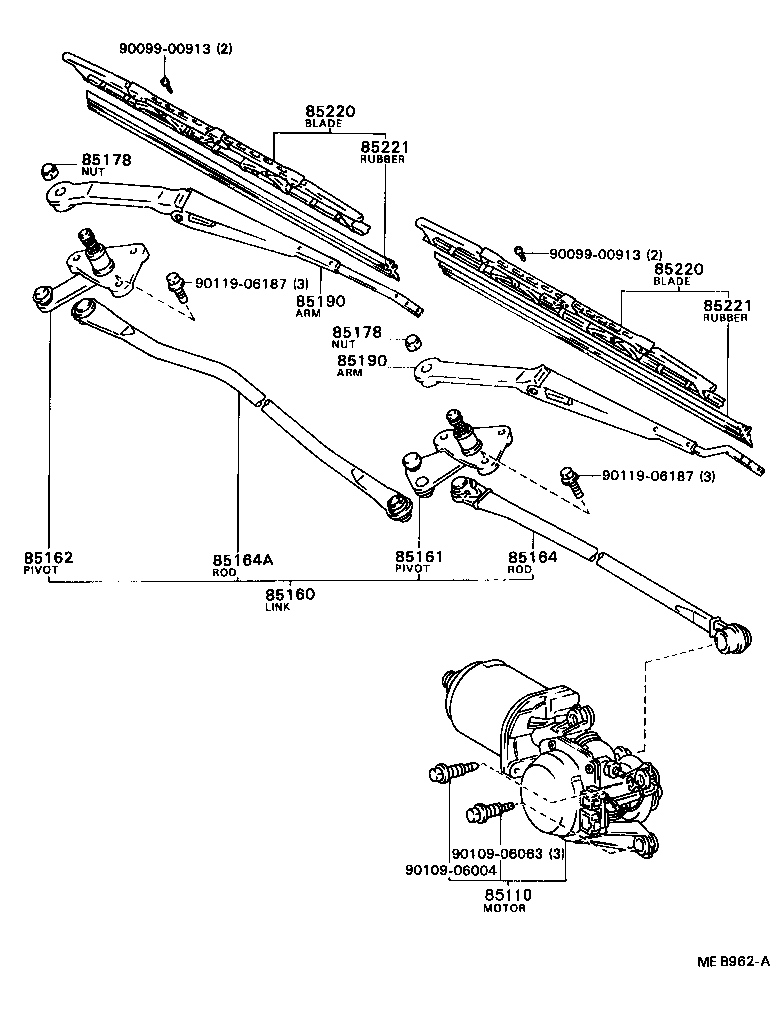

Click highlighted areas on diagram

diagram 85110 85160 85161 85162 85164 85164A 85178 85178 85190 85190 85220 85220 85221 85221 9009900913 9009900913 9010906004 9010906063 9011906187 9011906187
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-14170

CT140,RT140,TT14#..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-14230

CT140,RT140,ST141,TT14#..LHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08029

CT140,RT14#,ST141,TT14#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08029

CT140,RT14#,ST141,TT14#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-14350

CT140,RT140,TT14#..LHD

RH

 1
85210-14080

CT140,RT140,TT14#..LHD

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-14350

CT140,RT140,TT14#..LHD

RH

 1
85210-14080

CT140,RT140,TT14#..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-14370

CT140,RT140,TT14#..LHD

RH

 1
85220-14320

CT140,RT140,TT14#..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-14370

CT140,RT140,TT14#..LHD

RH

 1
85220-14320

CT140,RT140,TT14#..LHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-12120

CT140,RT140,TT14#..LHD

 2
85221 - BLADE, WINDSHIELD WIPER
85221-12120

CT140,RT140,TT14#..LHD

 2
Common parts
90099-00913
90109-06004
90109-06063
90119-06187
