TT140LG-TWKRS (1982)
Toyota Corona Fr
(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20370 |
CT140,RT140,TT14#..GEN,PHL CKD |
1 | ||
| 67001-20340 |
CT140,TT14#..GEN |
1 | ||
| 67001-20370 |
CT140,TT14#..GEN *GIS |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
CT14#,RT14#,ST141,TT14# |
4 | ||
| 67001C - GROMMET(FOR FRONT DOOR PANEL) | ||||
| 90541-07011 |
CT14#,RT14#,ST141,TT14# |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-20340 |
CT140,TT14#..GEN *GIS |
1 | ||
| 67002-20310 |
CT140,TT14#..GEN |
1 | ||
| 67002-20340 |
CT140,RT140,TT14#..GEN,PHL CKD |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-20180 |
CT140,RT140,TT14# *GIS |
1 | ||
| 67111-20140 |
CT140,TT14# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-20200 |
CT140,RT140,TT14# *GIS |
1 | ||
| 67112-20160 |
CT140,TT14# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-14120 |
CT140,RT14#,ST141,TT14# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-14120 |
CT140,RT14#,ST141,TT14# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-14030 |
CT140,RT140,TT14# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-14030 |
CT140,RT140,TT14# |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67496-14030 |
CT140,RT140,TT14# LH |
1 | ||
| 67495-14030 |
CT140,RT140,TT14# RH |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-30010 |
CT14#,RT14#,ST141,TT14# |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2B25001 |
CT140,TT140..STD BLACK,BLACK |
1 | ||
| 67610-2B25006 |
CT140,TT140..STD SADDLE BROWN,BROWN |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2B25001 |
CT140,TT140..STD BLACK,BLACK |
1 | ||
| 67610-2B25006 |
CT140,TT140..STD SADDLE BROWN,BROWN |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
CT140,RT140,TT14# TYPE A |
20 | ||
| 67771-14010 |
CT140,RT140,TT14# TYPE B |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
CT140,RT140,TT14# TYPE A |
20 | ||
| 67771-14010 |
CT140,RT140,TT14# TYPE B |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 67772-22010 |
CT140,RT140,TT14# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2089001 |
CT140,TT140..STD BLACK,BLACK |
1 | ||
| 67620-2089006 |
CT140,TT140..STD SADDLE BROWN,BROWN |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2089001 |
CT140,TT140..STD BLACK,BLACK |
1 | ||
| 67620-2089006 |
CT140,TT140..STD SADDLE BROWN,BROWN |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-2003101 |
CT140,RT140,TT140..STD BLACK,BLACK |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-2003101 |
CT140,RT140,TT140..STD BLACK,BLACK |
2 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67139-20010 |
CT14#,RT140,ST141,TT14#..GEN,PHL |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-14100 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-14030 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-14230 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
CT14#,RT14#,ST141,TT14# |
42 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-14230 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-14260 |
CT140,RT140,TT14# *TT,T=4.0,*TT,T=4.0 |
1 | ||
| 68111-20280 |
CT140,RT140,ST141,TT140..S,STD *TEM,T=4.0,*TEM,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-20200 |
CT140,RT140,ST141,TT140..S,STD *TEM,T=4.0,*TEM,T=4.0 |
1 | ||
| 68112-14270 |
CT140,RT140,TT14# *TT,T=4.0,*TT,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-91C02 |
CT140,RT140,TT14#..WG L=1845 |
2 | ||
| 68143-91C02 |
CT140,RT140,TT14#..WG L=450 |
2 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68210-20090 |
CT140,RT140,TT140..STD LH |
1 | ||
| 68160-20120 |
CT140,RT140,TT140..STD RH |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-14100 |
CT140,RT140,TT140..STD |
10 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20180 |
CT140,RT140,TT140..STD RH |
1 | ||
| 68220-20120 |
CT140,RT140,TT140..STD LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20180 |
CT140,RT140,TT140..STD RH |
1 | ||
| 68220-20120 |
CT140,RT140,TT140..STD LH |
1 | ||
| 68194 - SEAL, FRONT DOOR BELT, RH | ||||
| 68192-20010 |
CT140,RT140,TT140..STD |
1 | ||
| 68195 - SEAL, FRONT DOOR BELT, LH | ||||
| 68192-20010 |
CT140,RT140,TT140..STD |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-20020 |
CT14#,RT14#,ST141,TT14# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-22010 |
CT140,RT140,ST141,TT14# |
2 | ||
| Common parts | ||||
| 90164-60010 | ||||
| 90164-60020 | ||||
| 90168-40025 | ||||
| 90179-06070 | ||||
| 91661-40612 | ||||
| 93520-14010 | ||||
| 93540-15016 | ||||
| 93560-14008 | ||||

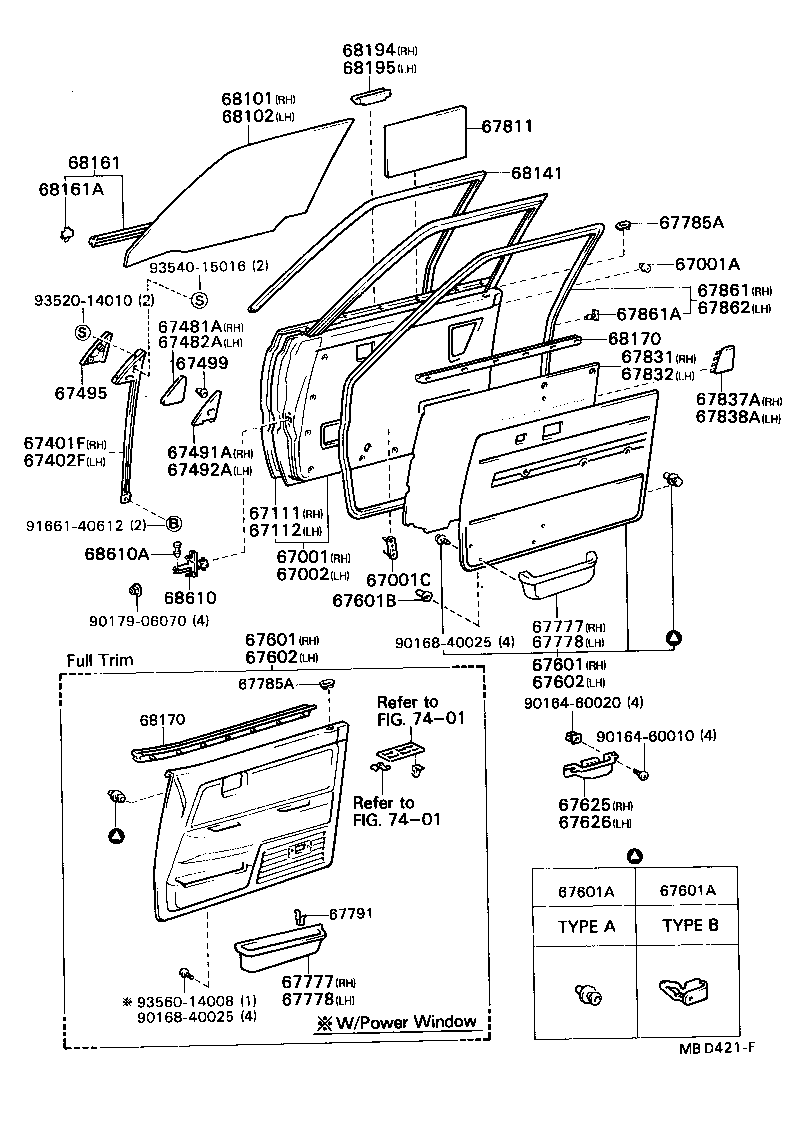

| Linked diagrams | ||||
| 7401 | ||||
