TT140L-TEKRS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )SED

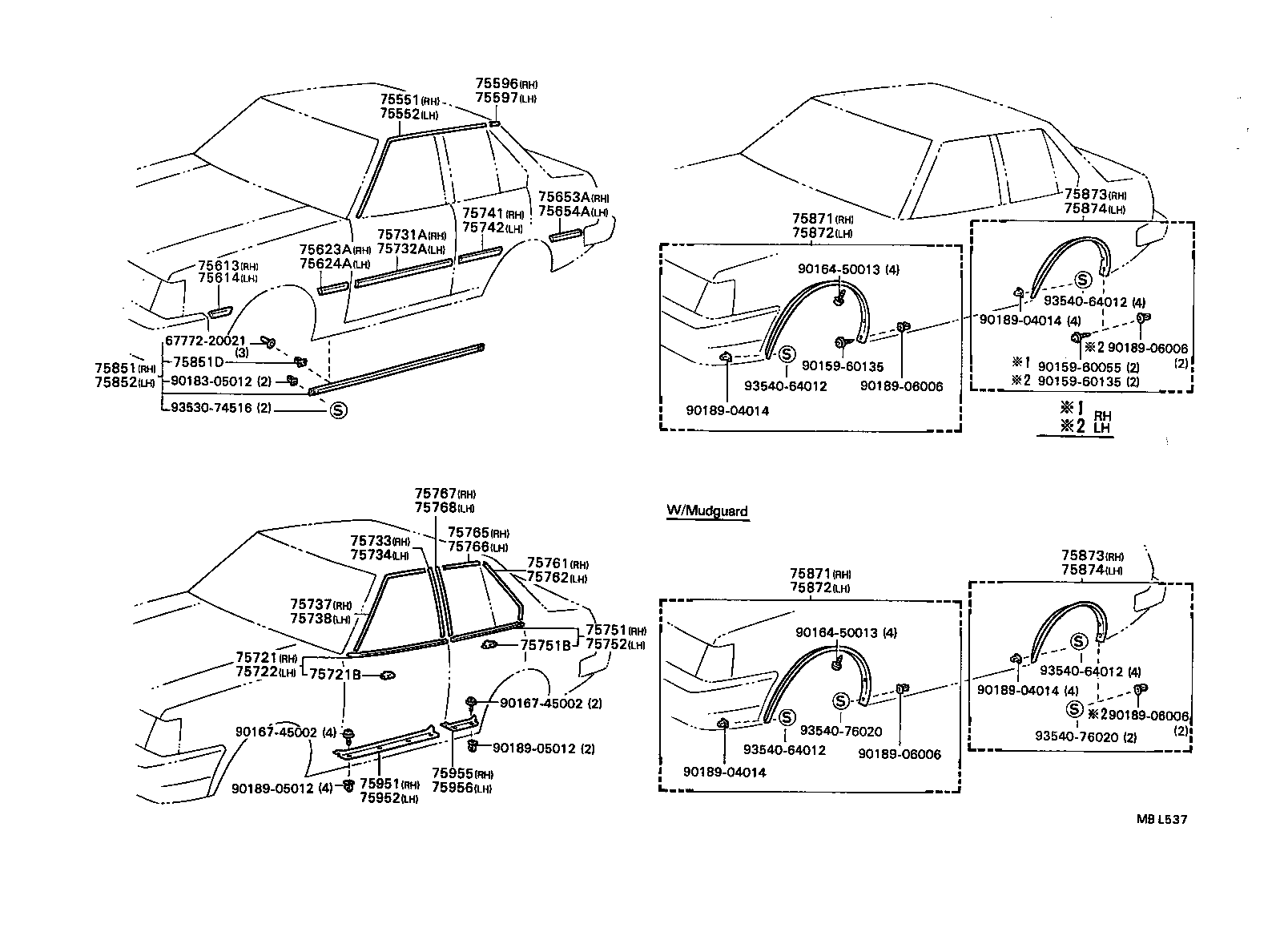

Click highlighted areas on diagram

diagram 6777220021 75551 75552 75596 75597 75613 75614 75623A 75624A 75653A 75654A 75721 75721B 75722 75731A 75732A 75733 75734 75737 75738 75741 75742 75751 75751B 75752 75761 75762 75765 75766 75767 75768 75851 75851D 75852 75871 75871 75872 75872 75873 75873 75874 75874 75951 75952 75955 75956 9015960055 9015960135 9015960135 9016450013 9016450013 9016745002 9016745002 9018305012 9018904014 9018904014 9018904014 9018904014 9018905012 9018905012 9018906006 9018906006 9018906006 9018906006 9353074516 9354064012 9354064012 9354064012 9354064012 9354076020 9354076020
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-20190

CT14#,RT14#,ST141,TT14#..SED

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-20190

CT14#,RT14#,ST141,TT14#..SED

 1
75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75596-20020

CT14#,RT14#,ST141,TT14#..SED

 1
75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75596-20020

CT14#,RT14#,ST141,TT14#..SED

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-20030

CT140,RT140,TT14#

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-20030

CT140,RT140,TT14#

 1
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-20060

CT140,RT140,TT14#..SED

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75654-20060

CT140,RT140,TT14#..SED

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-20090

CT140,RT140,TT14#

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-20090

CT140,RT140,TT14#

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-20120

CT140,RT140,TT14#

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-20100

CT140,RT140,TT14#

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-1409016

CT140,RT14#,ST141,TT14#

SADDLE BROWN,BROWN

 1
67913-1409004

CT140,RT14#,ST141,TT14#..SED

BLUE,BLUE

 1
67913-1409001

CT140,RT14#,ST141,TT14#

BLACK,BLACK

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-1408004

CT140,RT14#,ST141,TT14#..SED

BLUE,BLUE

 1
67914-1408016

CT140,RT14#,ST141,TT14#

SADDLE BROWN,BROWN

 1
67914-1408001

CT140,RT14#,ST141,TT14#

BLACK,BLACK

 1
75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67917-1403004

CT140,RT140,ST141,TT14#..SED

BLUE,BLUE

 1
67917-1403001

CT140,RT140,TT14#..SED

BLACK,BLACK

 1
67917-1403016

CT140,RT140,TT14#..SED

SADDLE BROWN,BROWN

 1
75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67918-1403016

CT140,RT140,TT14#..SED

SADDLE BROWN,BROWN

 1
67918-1403004

CT140,RT140,ST141,TT14#..SED

BLUE,BLUE

 1
67918-1403001

CT140,RT140,TT14#..SED

BLACK,BLACK

 1
Common parts
67772-20021
90159-60055
90159-60135
90164-50013
90167-45002
90183-05012
90189-04014
90189-05012
90189-06006
93530-74516
93540-64012
93540-76020
