TT140L-TEKDSV (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)

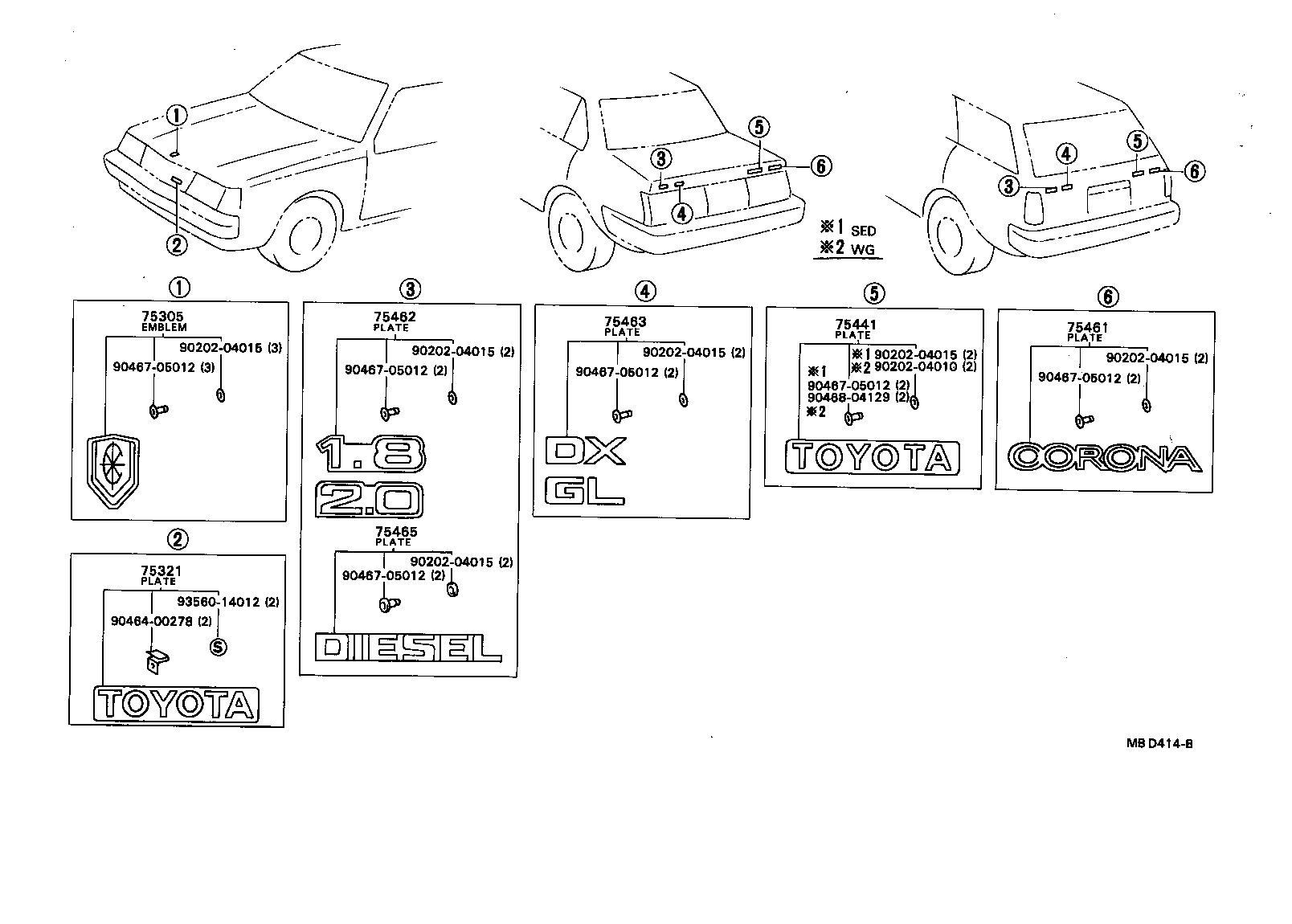

Click highlighted areas on diagram

diagram 75305 75321 75441 75461 75462 75463 75465 9020204010 9020204015 9020204015 9020204015 9020204015 9020204015 9020204015 9046400278 9046705012 9046705012 9046705012 9046705012 9046705012 9046705012 9046804129 9356014012
Part # Description Qty Price
75305 - EMBLEM, HOOD
75331-20010

CT140,RT140,ST141,TT14#

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-29565

CT140,RT140,ST141,TT14#

TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75443-14190

CT14#,RT14#,ST141,TT14#..SED

TOYOTA,TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-20180

CT140,RT14#,ST141,TT14#

CORONA,CORONA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-14190

RT140,TT14#..DLX

DX,DX

 1
Common parts
90202-04010
90202-04015
90464-00278
90467-05012
90468-04129
93560-14012
