TT140L-TEKDSV (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

Click highlighted areas on diagram

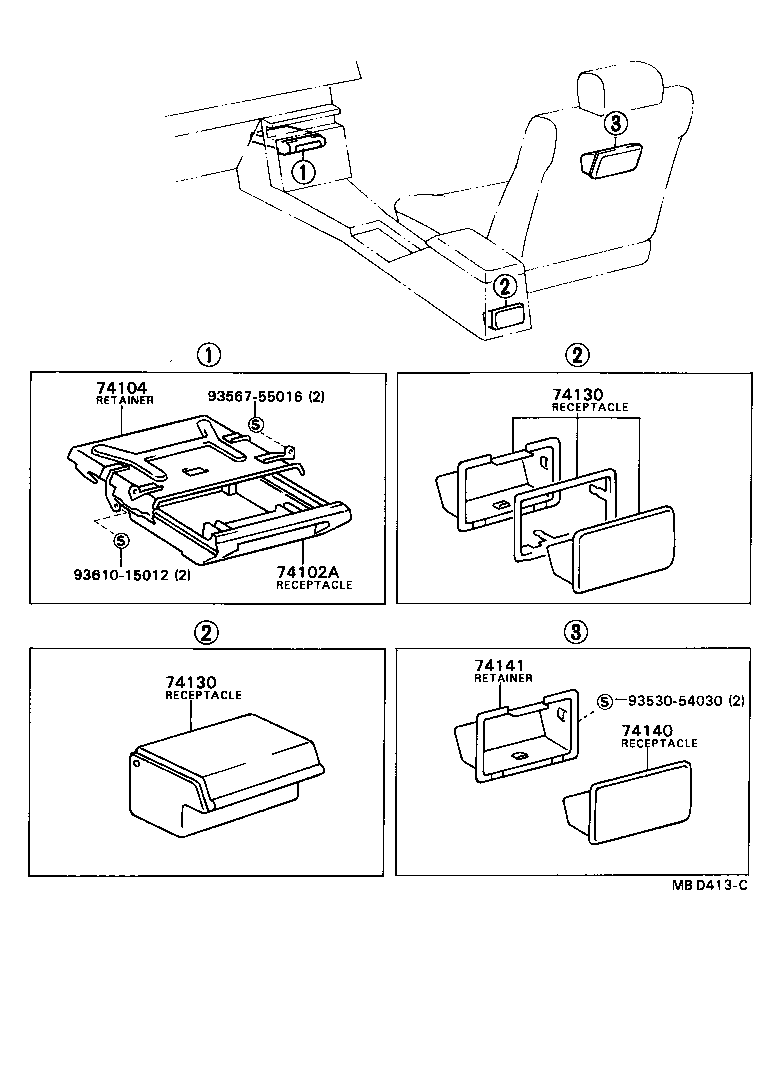

diagram 74102A 74104 74130 74130 74140 74141 9353054030 9356755016 9361015012
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-2006004

CT140,RT140,TT14#..SED..LHD

BLUE,BLUE

 1
74102-2006001

CT140,RT140,ST141,TT14#..LHD

BLACK,BLACK

 1
74102-2006006

CT140,RT140,ST141,TT14#..LHD

SADDLE BROWN,BROWN

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-20150

CT140,RT140,ST141,TT14#..LHD

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-1204016

CT140,RT14#,ST141,TT14#..3FC,4F,4FC,5F

W/FULL CONSOLE,SADDLE BROWN,BROWN

 1
74130-1204014

CT140,RT14#,ST141,TT14#..SED..(3FC,4F,4FC,5F)

W/FULL CONSOLE,BLUE,BLUE

 1
74130-1204001

CT140,RT14#,ST141,TT14#..3FC,4F,4FC,5F

W/FULL CONSOLE,BLACK,BLACK

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-1204016

CT140,RT14#,ST141,TT14#..3FC,4F,4FC,5F

W/FULL CONSOLE,SADDLE BROWN,BROWN

 1
74130-1204014

CT140,RT14#,ST141,TT14#..SED..(3FC,4F,4FC,5F)

W/FULL CONSOLE,BLUE,BLUE

 1
74130-1204001

CT140,RT14#,ST141,TT14#..3FC,4F,4FC,5F

W/FULL CONSOLE,BLACK,BLACK

 1
Common parts
93530-54030
93567-55016
93610-15012
