TT140L-TEKDSV (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

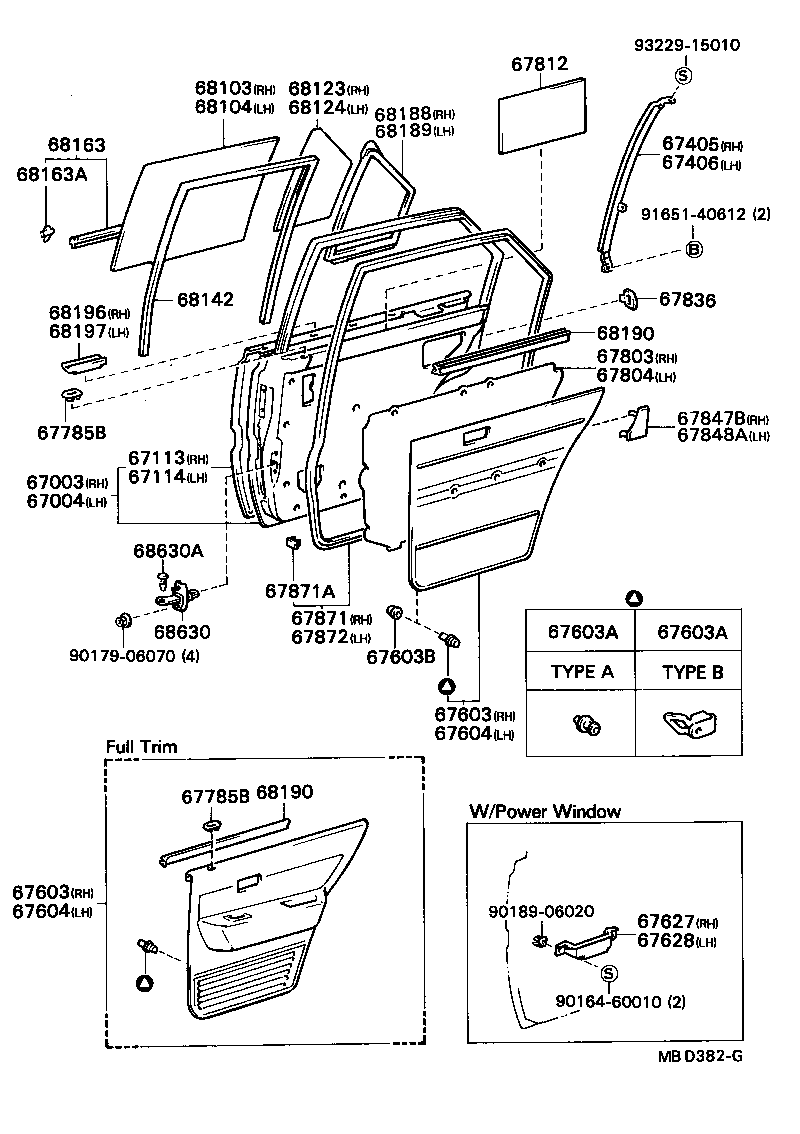

Click highlighted areas on diagram

diagram 67003 67004 67113 67114 67405 67406 67603 67603 67603A 67603A 67603B 67604 67604 67627 67628 67785B 67785B 67803 67804 67812 67836 67847B 67848A 67871 67871A 67872 68103 68104 68123 68124 68142 68163 68163A 68188 68189 68190 68190 68196 68197 68630 68630A 9016460010 9017906070 9018906020 9165140612 9322915010
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-20240

TT14#..ME

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-20240

TT14#..ME

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-20120

CT140,RT140,TT14#

*GIS

 1
67113-20080

CT140,TT14#..SED

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-20120

CT140,RT140,TT14#

*GIS

 1
67114-20080

CT140,TT14#..SED

 1
67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-20090

CT14#,RT14#,ST141,TT14#..SED

 1
67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-20080

CT14#,RT14#,ST141,TT14#..SED

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-2060006

CT140,TT14#..SED..(DLX,TAX)

SADDLE BROWN,BROWN

 1
67630-2060004

CT140,TT14#..SED..(DLX,TAX)

BLUE,BLUE

 1
67630-2060001

CT140,TT14#..SED..(DLX,TAX)

BLACK,BLACK

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-2060006

CT140,TT14#..SED..(DLX,TAX)

SADDLE BROWN,BROWN

 1
67630-2060004

CT140,TT14#..SED..(DLX,TAX)

BLUE,BLUE

 1
67630-2060001

CT140,TT14#..SED..(DLX,TAX)

BLACK,BLACK

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12010

CT140,RT140,TT14#

TYPE A

 20
67771-14010

CT140,RT140,TT14#

TYPE B

 2
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12010

CT140,RT140,TT14#

TYPE A

 20
67771-14010

CT140,RT140,TT14#

TYPE B

 2
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
67772-22010

CT14#,RT140,TT14#

 2
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-2060001

CT140,TT14#..SED..(DLX,TAX)

BLACK,BLACK

 1
67640-2060006

CT140,TT14#..SED..(DLX,TAX)

SADDLE BROWN,BROWN

 1
67640-2060004

CT140,TT14#..SED..(DLX,TAX)

BLUE,BLUE

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-2060001

CT140,TT14#..SED..(DLX,TAX)

BLACK,BLACK

 1
67640-2060006

CT140,TT14#..SED..(DLX,TAX)

SADDLE BROWN,BROWN

 1
67640-2060004

CT140,TT14#..SED..(DLX,TAX)

BLUE,BLUE

 1
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-2004001

CT140,TT14#..DLX,GL,TAX

BLACK

 2
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-2004001

CT140,TT14#..DLX,GL,TAX

BLACK

 2
67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67841-14070

CT14#,RT14#,ST141,TT14#

 1
67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67842-14020

CT14#,RT14#,ST141,TT14#

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-20030

CT140,RT140,TT14#

 2
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-20130

CT14#,RT14#,ST141,TT14#..SED

 1
67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP)
67868-30040

CT14#,RT14#,ST141,TT14#..SED

 36
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-20130

CT14#,RT14#,ST141,TT14#..SED

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-14060

CT140,RT140,TT14#..SED

*TT,T=3.5,*TT,T=3.5

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-14060

CT140,RT140,TT14#..SED

*TT,T=3.5,*TT,T=3.5

 1
68123 - GLASS, REAR DOOR WINDOW, RH
68123-20280

CT140,RT140,TT14#..SED

*TT,T=3.5,*TT,T=3.5

 1
68124 - GLASS, REAR DOOR WINDOW, LH
68124-20200

CT140,RT140,TT14#..SED

*TT,T=3.5,*TT,T=3.5

 1
68142 - RUN, REAR DOOR GLASS
68142-14030

CT140,RT14#,ST141,TT14#

 2
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-20070

CT14#,RT14#,ST141,TT14#..SED

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-20070

CT14#,RT14#,ST141,TT14#..SED

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-14080

CT140,RT140,TT14#..DLX,GL,TAX

 2
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-14080

CT140,RT140,TT14#..DLX,GL,TAX

 2
68630 - CHECK ASSY, REAR DOOR
68630-20010

CT14#,RT14#,ST141,TT14#

 2
68630A - PIN(FOR REAR DOOR CHECK)
68617-22010

CT140,ST141,TT14#

 2
Common parts
90164-60010
90179-06070
90189-06020
91651-40612
93229-15010
