TT140L-TEKDS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

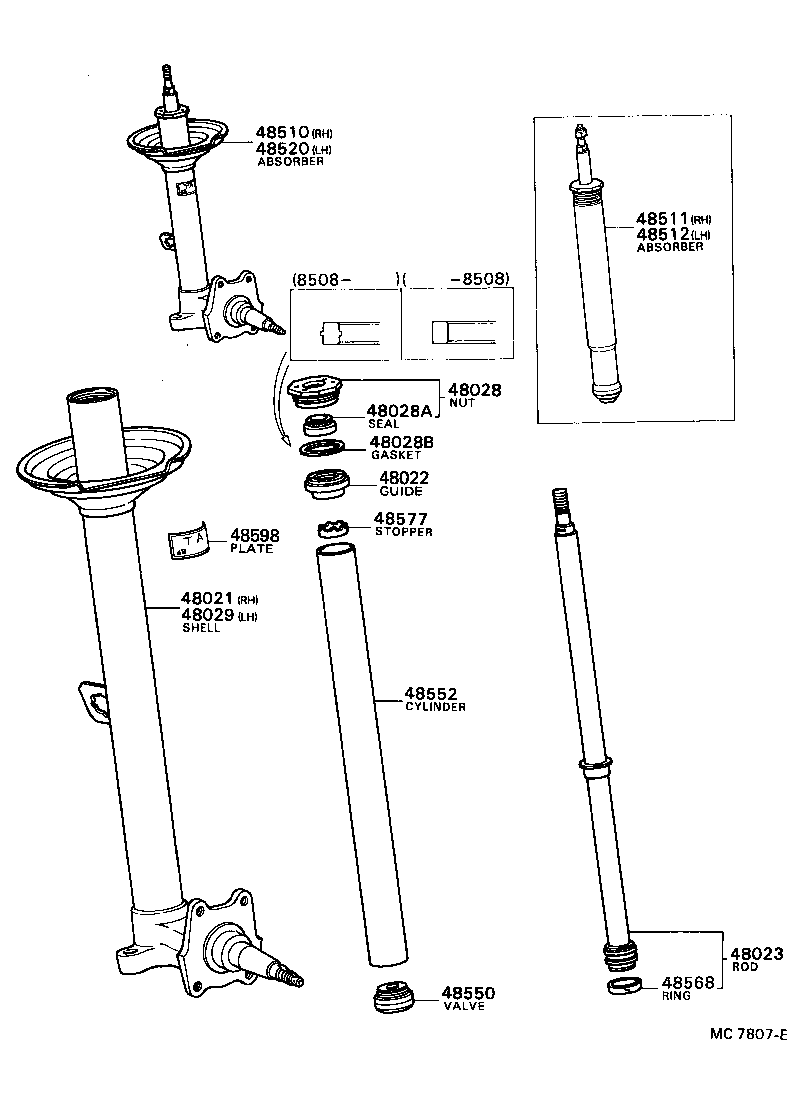

ILLUST NO. 1 OF 2(8201- )

Click highlighted areas on diagram

diagram 48021 48022 48023 48028 48028A 48028B 48029 48510 48511 48512 48520 48550 48552 48568 48577 48598
Part # Description Qty Price
48021 - SHELL SUB-ASSY, W/STEERING KNUCKLE, RH
48021-14060

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 1
48022 - GUIDE SUB-ASSY, SHOCK ABSORBER ROD
48022-14010

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
48023 - ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)
48023-20100

CT140,RT140,TT14#..SED..(DLX,GL,STD)

FR DISC BRAKE

 2
48028 - NUT SUB-ASSY, SHOCK ABSORBER RING
48028-14011

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT)
90316-22001

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
48028B - GASKET(FOR SHOCK ABSORBER RING NUT)
90430-43206

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
48029 - SHELL SUB-ASSY, W/STEERING KNUCKLE, LH
48029-14010

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-20150

CT140,RT140,TT14#..SED..(DLX,GL,STD)

FR DISC BRAKE

 1
48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48511-20110

CT140,RT140,TT14#..SED..(DLX,GL,STD)

FR DISC BRAKE

 1
48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48511-20110

CT140,RT140,TT14#..SED..(DLX,GL,STD)

FR DISC BRAKE

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-20150

CT140,RT140,TT14#..SED..(DLX,GL,STD)

FR DISC BRAKE

 1
48550 - VALVE ASSY, SHOCK ABSORBER BASE
48550-24010

CT140,RT140,TT14#..SED..(DLX,GL,STD)

FR DISC BRAKE

 2
48552 - CYLINDER, SHOCK ABSORBER(FOR FRONT)
48552-14010

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
48568 - RING, SHOCK ABSORBER PISTON
48568-22020

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
48577 - STOPPER, SHOCK ABSORBER REBOUND
48579-14011

CT140,RT140,ST141,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
48598 - PLATE, ABSORBER NAME
48598-20030

CT140,RT140,TT14#..SED..(DLX,GL,STD)

RH

 1
48598-20040

CT140,RT140,TT14#..SED..(DLX,GL,STD)

LH

 1

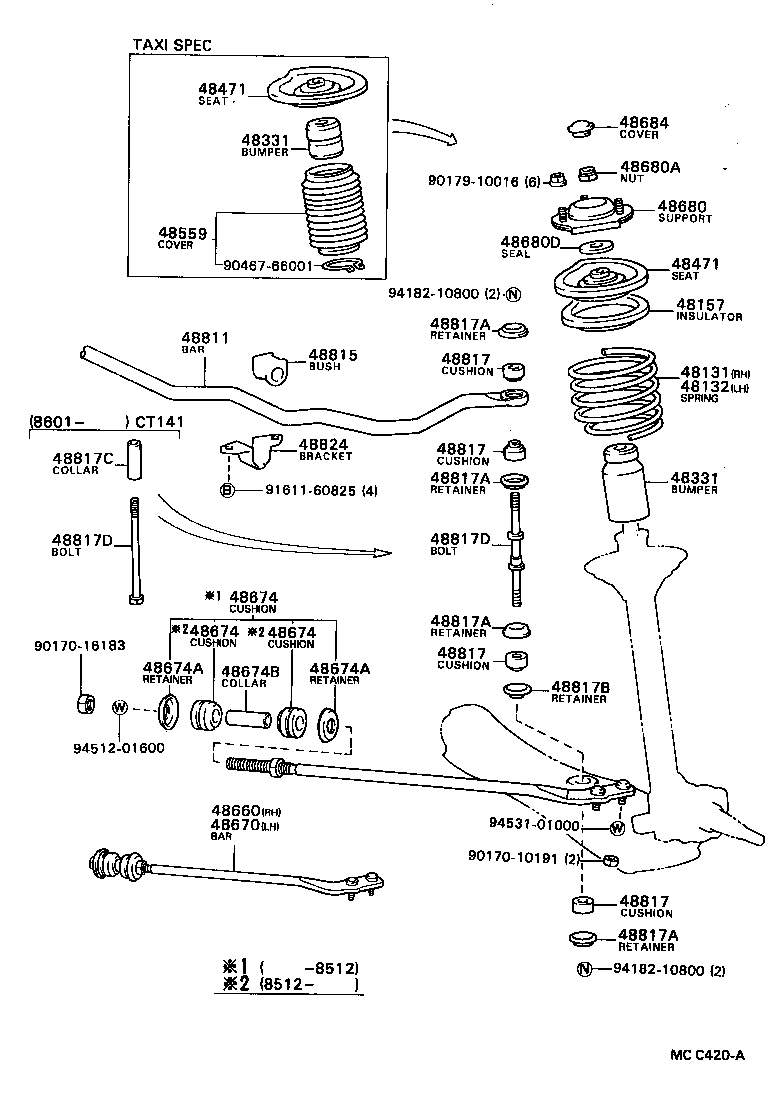

ILLUST NO. 2 OF 2(8201- )

Click highlighted areas on diagram

diagram 48131 48132 48157 48331 48331 48471 48471 48559 48660 48670 48674 48674 48674 48674A 48674A 48674B 48680 48680A 48680D 48684 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817C 48817D 48817D 48824 9017010191 9017016183 9017910016 9046766001 9161160825 9418210800 9418210800 9451201600 9453101000
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-1B110

RT140,ST141,TT14#..LHD..(GEN,PHL)

 1
48132 - SPRING, FRONT COIL, LH
48131-1B130

RT140,ST141,TT14#..LHD..(GEN,PHL)

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-14010

CT140,RT14#,ST141,TT14#..CS,CSI,CSX,CXI,DLX,GL,S,STD

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-14020

CT140,RT14#,ST141,TT14#..CS,CSI,CSX,CXI,DLX,GL,S,STD

FR DISC BRAKE

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-14020

CT140,RT14#,ST141,TT14#..CS,CSI,CSX,CXI,DLX,GL,S,STD

FR DISC BRAKE

 2
48471 - SEAT, FRONT SPRING, UPPER
48044-14030

CT140,RT14#,ST141,TT14#..CS,CSI,CSX,CXI,DLX,GL,S,STD

FR DISC BRAKE

 2
48471 - SEAT, FRONT SPRING, UPPER
48044-14030

CT140,RT14#,ST141,TT14#..CS,CSI,CSX,CXI,DLX,GL,S,STD

FR DISC BRAKE

 2
48660 - BAR ASSY, STRUT, RH
48660-19135

TT14#..SED;CT140,ST141..CS,CSX,DLX,S

FR DISC BRAKE

 1
48670 - BAR ASSY, STRUT, LH
48670-19115

CT14#,RT14#,ST141,TT14#,YT140

 1
48674 - CUSHION, STRUT BAR
48674-19085

TT14#..SED;CT140,ST141..CS,CSX,DLX,S

FR DISC BRAKE,RH

 1
48674-19058

TT14#..SED;CT140,RT142,ST141..CS,CSI,CSX,CXI,DLX,S

FR DISC BRAKE,LH

 1
48674 - CUSHION, STRUT BAR
48674-19085

TT14#..SED;CT140,ST141..CS,CSX,DLX,S

FR DISC BRAKE,RH

 1
48674-19058

TT14#..SED;CT140,RT142,ST141..CS,CSI,CSX,CXI,DLX,S

FR DISC BRAKE,LH

 1
48674 - CUSHION, STRUT BAR
48674-19085

TT14#..SED;CT140,ST141..CS,CSX,DLX,S

FR DISC BRAKE,RH

 1
48674-19058

TT14#..SED;CT140,RT142,ST141..CS,CSI,CSX,CXI,DLX,S

FR DISC BRAKE,LH

 1
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02036

CT14#,RT14#,ST141,TT14#,YT140

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02036

CT14#,RT14#,ST141,TT14#,YT140

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-16108

CT14#,RT14#,ST141,TT14#,YT140

 2
48680 - SUPPORT ASSY, FRONT SUSPENSION
48609-14040

CT140,RT14#,ST141,TT14#..CS,CSI,CSX,CXI,DLX,GL,S,STD

MARUYASU,FR DISC BRAKE

 2
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400

CT14#,RT14#,ST141,TT14#,YT140

 2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

CT14#,RT14#,ST141,TT14#,YT140

 2
48684 - COVER, BEARING DUST
48684-10010

CT140,RT140,ST141,TT14#..GEN,ME,PHL

 2
48811 - BAR, STABILIZER, FRONT
48811-14220

RT140,ST141,TT14#

OD=21

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-14140

CT140,RT140,ST141,TT14#

ID=21

 2
48817 - CUSHION, FRONT STABILIZER
48817-20020

CT14#,RT14#,ST141,TT14#,YT140

 8
48817 - CUSHION, FRONT STABILIZER
48817-20020

CT14#,RT14#,ST141,TT14#,YT140

 8
48817 - CUSHION, FRONT STABILIZER
48817-20020

CT14#,RT14#,ST141,TT14#,YT140

 8
48817 - CUSHION, FRONT STABILIZER
48817-20020

CT14#,RT14#,ST141,TT14#,YT140

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

CT14#,RT14#,ST141,TT14#,YT140

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

CT14#,RT14#,ST141,TT14#,YT140

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

CT14#,RT14#,ST141,TT14#,YT140

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02038

CT14#,RT14#,ST141,TT14#,YT140

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02037

CT14#,RT14#,ST141,TT14#,YT140

 2
48817D - BOLT(FOR FRONT STABILIZER)
48819-20010

CT140,RT14#,TT14#..CSI,CXI,DLX,GL,STD

FR DISC BRAKE

 2
48817D - BOLT(FOR FRONT STABILIZER)
48819-20010

CT140,RT14#,TT14#..CSI,CXI,DLX,GL,STD

FR DISC BRAKE

 2
48824 - BRACKET, STABILIZER, FRONT
48824-24010

CT14#,RT14#,ST141,TT14#,YT140

 2
Common parts
90170-10191
90170-16183
90179-10016
90467-66001
91611-60825
94182-10800
94512-01600
94531-01000
