TT140L-TEJRSV (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )SED

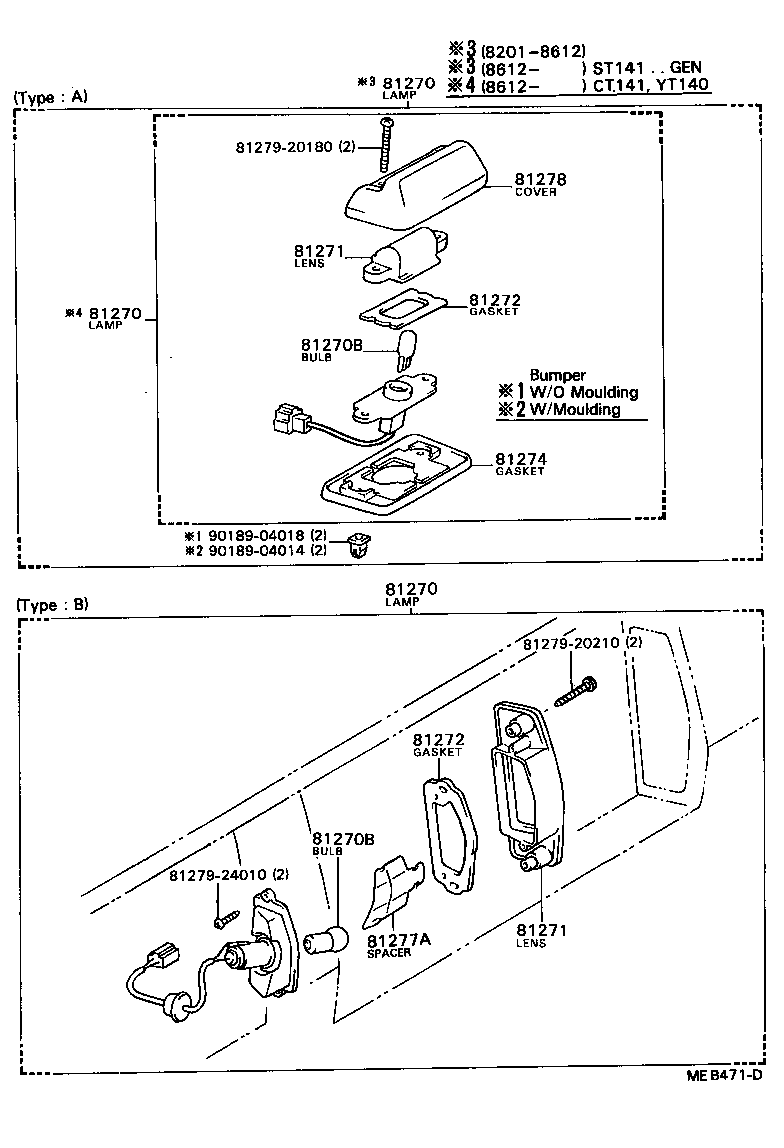

Click highlighted areas on diagram

diagram 81270 81270 81270 81270B 81270B 81271 81271 81272 81272 81274 81277A 81278 8127920180 8127920210 8127924010 9018904014 9018904018
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-29545

CT140,RT140,TT14#..SED

TYPE:A

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-29545

CT140,RT140,TT14#..SED

TYPE:A

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-29545

CT140,RT140,TT14#..SED

TYPE:A

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

CT14#,RT140,ST141,TT14#,YT140..SED..(GEN,ME,PHL)

12V 5W,12V 5W,TYPE:A

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

CT14#,RT140,ST141,TT14#,YT140..SED..(GEN,ME,PHL)

12V 5W,12V 5W,TYPE:A

 2
81271 - LENS, LICENSE PLATE LAMP
81271-22110

CT14#,RT140,ST141,TT14#,YT140..SED..(GEN,ME,PHL)

TYPE:A

 2
81271 - LENS, LICENSE PLATE LAMP
81271-22110

CT14#,RT140,ST141,TT14#,YT140..SED..(GEN,ME,PHL)

TYPE:A

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-22110

CT14#,RT140,ST141,TT14#,YT140..SED..(GEN,ME,PHL)

TYPE:A

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-22110

CT14#,RT140,ST141,TT14#,YT140..SED..(GEN,ME,PHL)

TYPE:A

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-22110

CT14#,RT140,ST141,TT14#,YT140..SED..(GEN,ME,PHL)

TYPE:A

 2
81278 - COVER, LICENSE PLATE LAMP
81276-10101

CT14#,RT140,ST141,TT14#,YT140..SED..(GEN,ME,PHL)

TYPE:A

 2
Common parts
81279-20180
81279-20210
81279-24010
90189-04014
90189-04018
