TT140L-TEJRSV (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)

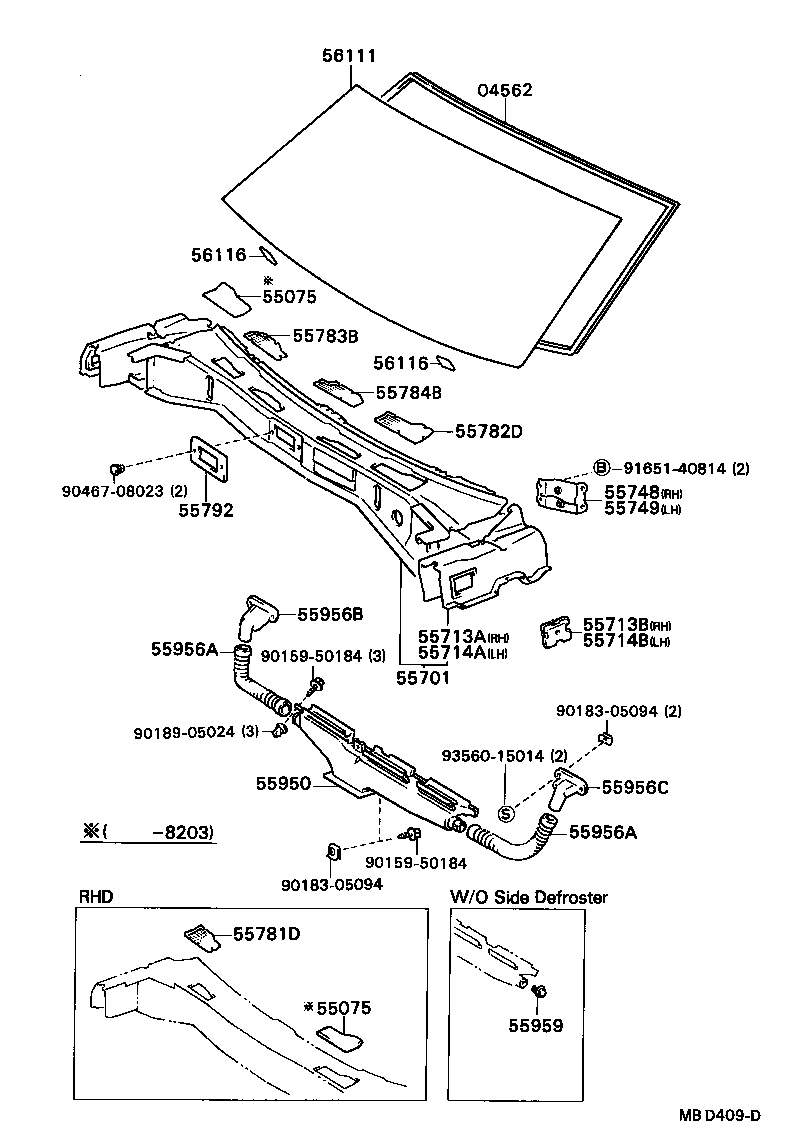

Click highlighted areas on diagram

diagram 04562 55075 55075 55701 55713A 55713B 55714A 55714B 55748 55749 55781D 55782D 55783B 55784B 55792 55950 55956A 55956A 55956B 55956C 55959 56111 56116 56116 9015950184 9015950184 9018305094 9018305094 9018905024 9046708023 9165140814 9356015014
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30030

CT140,RT140,ST141,TT14#

 1
55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55791-14020

CT140,TT14#..LHD

 1
55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55791-14020

CT140,TT14#..LHD

 1
55701 - PANEL SUB-ASSY, COWL
55700-20270

TT140..4H

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-14060

CT140,RT140,TT14#

 1
55713B - COVER, COWL SIDE PANEL HOLE, RH
62161-14010

CT14#,RT14#,ST141,TT14#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-14060

CT140,RT140,TT14#

 1
55714B - COVER, COWL SIDE PANEL HOLE, LH
62162-14010

CT140,RT140,ST141,TT14#

 1
55748 - BRACE, COWL TOP TO PILLAR, RH
55748-14020

CT14#,RT14#,ST141,TT14#

 1
55749 - BRACE, COWL TOP TO PILLAR, LH
55749-14050

CT14#,RT14#,ST141,TT14#

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-14030

CT140,RT140,ST141,TT14#..LHD

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-14070

CT14#,RT14#,ST141,TT14#

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-14090

CT14#,RT14#,ST141,TT14#

 1
55792 - COVER, WIPER MOTOR SERVICE HOLE
55793-24010

CT14#,RT14#,ST141,TT14#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-14120

CT140,RT140,ST141,TT14#..LHD

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-14010

CT140,RT140,ST141,TT14#

 2
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-14010

CT140,RT140,ST141,TT14#

 2
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-14030

CT140,RT140,ST141,TT14#

 1
55956C - DUCT, SIDE DEFROSTER NOZZLE, NO.3
55973-14020

CT140,RT140,ST141,TT14#

 1
55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1
55959-14010

CT140,RT140,TT14#

 2
56111 - GLASS, WINDSHIELD
56111-14260

CT140,RT140,TT140..STD

*TEM,T=5.0,*TEM,T=5.0

 1
56111-20350

CT140,RT140,TT140..STD

*LAM,T=5.3,*LAM,T=5.3

 1
56111-14270

CT140,RT140,TT14#

*TT,T=5.0,*TZT,T=5.0

 1
56111-14280

CT140,RT140,TT14#

*TL,T=5.3,*TL,T=5.3

 1
56116 - SPACER, WINDSHIELD GLASS
56116-14020

CT14#,RT14#,ST141,TT14#

 2
56116 - SPACER, WINDSHIELD GLASS
56116-14020

CT14#,RT14#,ST141,TT14#

 2
Common parts
90159-50184
90183-05094
90189-05024
90467-08023
91651-40814
93560-15014
