TT140L-TEJRSV (1982)
Toyota Corona Fr
Production
Jan 1982
-
Oct 1983
Engine
2T
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )LHD

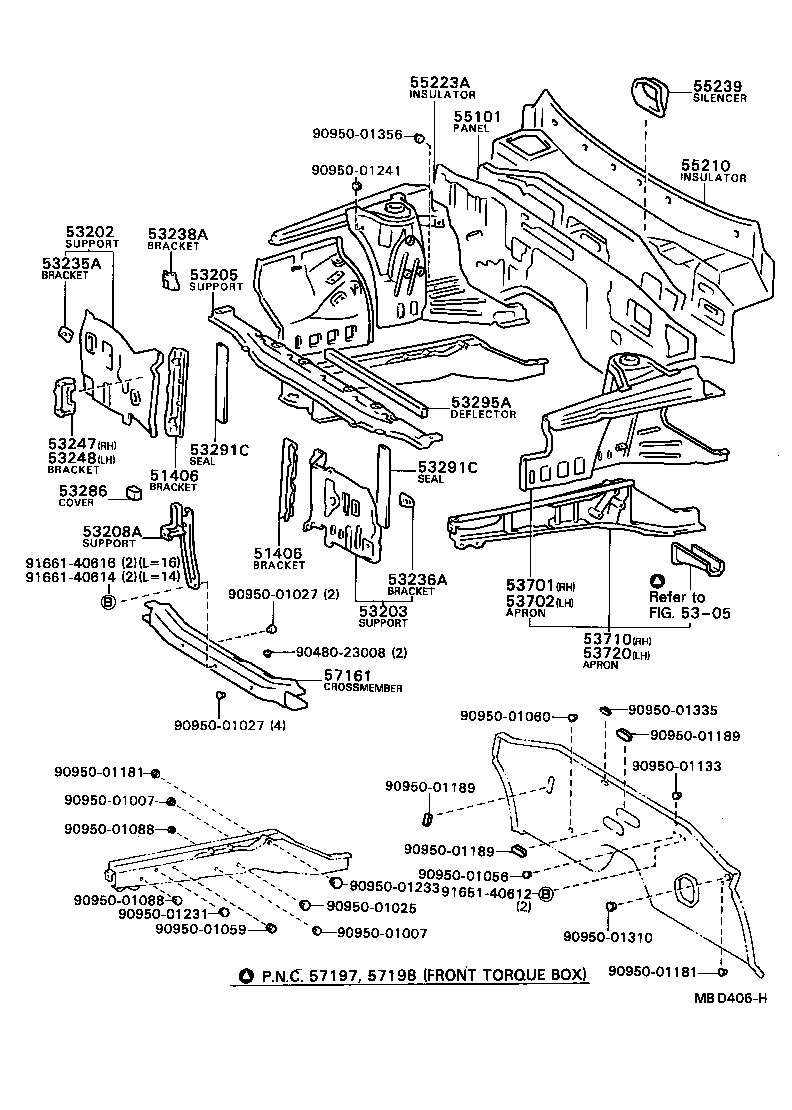

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-14110 |
CT140,RT140,TT14# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-14180 |
TT14# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-14040 |
CT140,RT140,TT14# |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-20040 |
CT140,RT14#,ST141,TT14# |
1 | ||
| 53235A - BRACKET, HORN MOUNTING, RH | ||||
| 53235-14040 |
CT140,RT140,TT14# |
1 | ||
| 53236A - BRACKET, HORN MOUNTING, LH | ||||
| 53236-14030 |
TT14# |
1 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-14060 |
CT14#,RT14#,ST141,TT14# |
2 | ||
| 53247 - BRACKET, HEADLAMP MOUNTING, INNER RH | ||||
| 53247-14060 |
CT140,RT14#,ST141,TT14#..CS,CSI,DLX,S,STD,TAX |
1 | ||
| 53248 - BRACKET, HEADLAMP MOUNTING, INNER LH | ||||
| 53248-14040 |
CT140,RT14#,ST141,TT14#..CS,CSI,DLX,S,STD,TAX |
1 | ||
| 53286 - COVER, FRONT BUMPER ARM HOLE | ||||
| 53285-14040 |
CT14#,RT14#,ST141,TT14# |
2 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53291-14020 |
RT142,TT14# |
2 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53291-14020 |
RT142,TT14# |
2 | ||
| 53295A - DEFLECTOR, RADIATOR UPPER AIR | ||||
| 53293-14040 |
TT14#..MTM |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-14912 |
TT14#..WG;TT140..3H,4H |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-20932 |
TT140..4H |
1 | ||
| 53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH | ||||
| 53710-14901 |
TT14#..WG;TT140..4H |
1 | ||
| 53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH | ||||
| 53720-20900 |
TT140..4H |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-20928 |
TT140..4H |
1 | ||
| 55101-20922 |
TT140..4H |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-20060 |
TT140..4H |
1 | ||
| 55239 - SILENCER, STEERING COLUMN HOLE COVER | ||||
| 55257-20100 |
TT140..3H,4H |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-14090 |
CT140,RT14#,ST141,TT14# |
1 | ||
| Common parts | ||||
| 90480-23008 | ||||
| 90950-01007 | ||||
| 90950-01025 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01059 | ||||
| 90950-01060 | ||||
| 90950-01088 | ||||
| 90950-01133 | ||||
| 90950-01181 | ||||
| 90950-01189 | ||||
| 90950-01231 | ||||
| 90950-01233 | ||||
| 90950-01241 | ||||
| 90950-01310 | ||||
| 90950-01335 | ||||
| 90950-01356 | ||||
| 91651-40612 | ||||
| 91661-40614 | ||||
| 91661-40616 | ||||
| Linked diagrams | ||||
| 5305 | ||||
