TT140L-TEJRSV (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)2T,3T

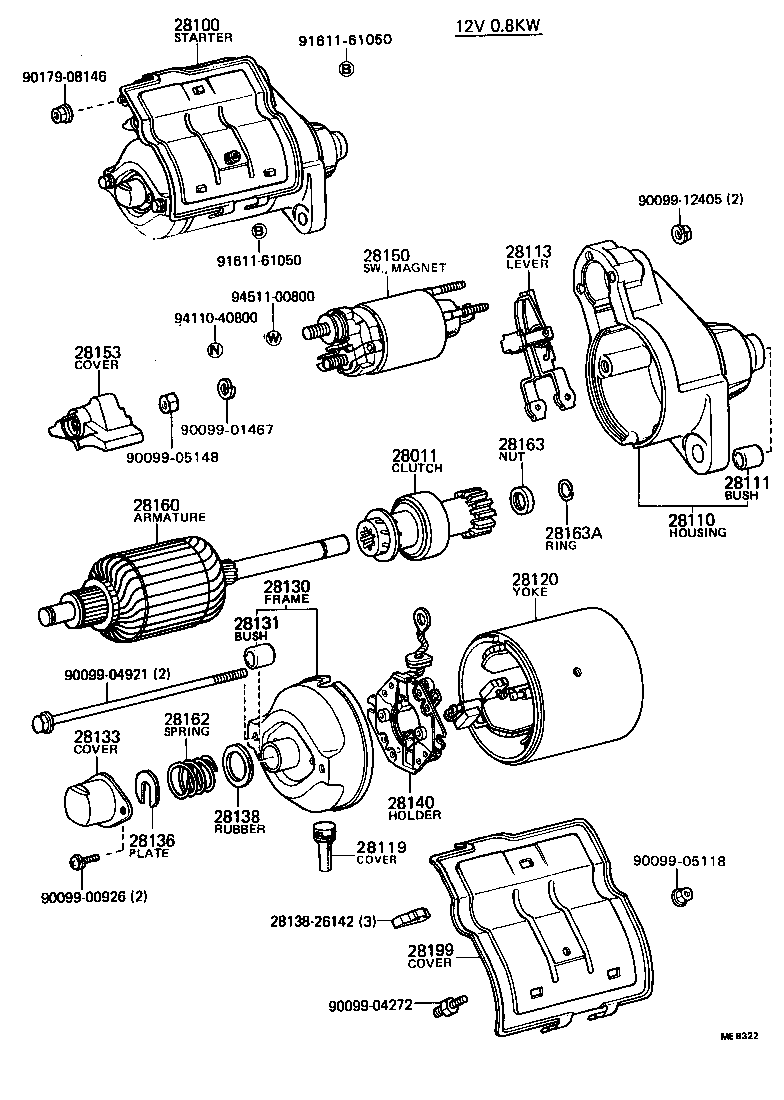

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28119 28120 28130 28131 28133 28136 28138 2813826142 28140 28150 28153 28160 28162 28163 28163A 28199 9009900926 9009901467 9009904272 9009904921 9009905118 9009905148 9009912405 9017908146 9161161050 9161161050 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-15010

2T,3T..TT14#

12V 0.8KW

 1
28100 - STARTER ASSY
28100-27020

2T,3T..TT14#

12V 0.8KW,12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-27020

2T,3T..TT14#

12V 0.8KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

2T,3T..TT14#

12V 0.8KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-15011

2T,3T..TT14#

12V 0.8KW

 1
28119 - COVER, STARTER END FRAME
28199-77090

2T,3T..TT14#

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-26140

2T,3T..TT14#

12V 0.8KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-37010

2T,3T..TT14#

12V 0.8KW

 1
28131 - BUSH, COMMUTATOR END FRAME
90099-10134

2T,3T..TT14#

12V 0.8KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-15010

2T,3T..TT14#

12V 0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-15010

2T,3T..TT14#

12V 0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-15010

2T,3T..TT14#

12V 0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-15010

2T,3T..TT14#

12V 0.8KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-15012

2T,3T..TT14#

12V 0.8KW

 1
28153 - COVER, MAGNET SWITCH
28159-13030

2T,3T..TT14#

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-15010

2T,3T..TT14#

12V 0.8KW

 1
28162 - SPRING, STARTER BRAKE
28162-15010

2T,3T..TT14#

12V 0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

2T,3T..TT14#

12V 0.8KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

2T,3T..TT14#

12V 0.8KW

 1
28199 - COVER, STARTER
28199-26131

2T,3T..TT14#

12V 0.8KW

 1
Common parts
28138-26142
90099-00926
90099-01467
90099-04272
90099-04921
90099-05118
90099-05148
90099-12405
90179-08146
91611-61050
94110-40800
94511-00800
