TT140L-TEJRS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)

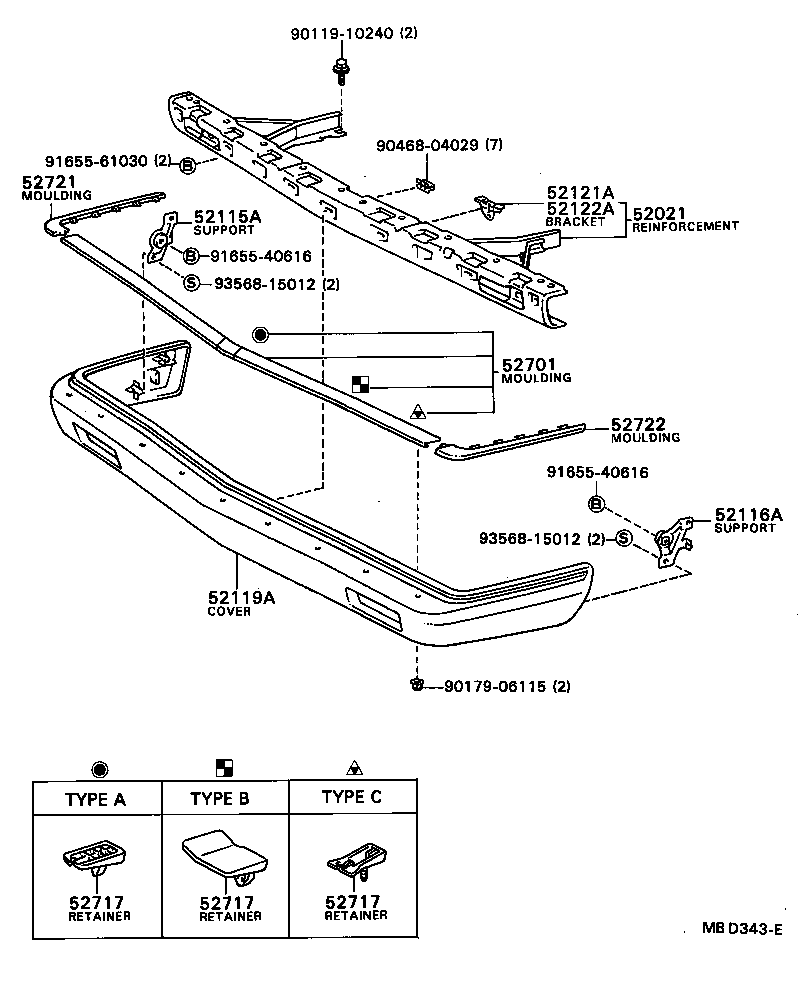

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52121A 52122A 52701 52717 52717 52717 52721 52722 9011910240 9017906115 9046804029 9165540616 9165540616 9165561030 9356815012 9356815012
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20050

CT140,RT140,TT14#..SED

W/*UB

 1
52021-20040

CT140,RT140,TT14#

W/P.P.BUMPER

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20101

CT140,RT140,TT14#

W/P.P.BUMPER

 1
52115-20110

CT140,RT140,TT14#..SED

W/*UB

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20081

CT140,RT140,TT14#

W/P.P.BUMPER

 1
52116-20090

CT140,RT140,TT14#..SED

W/*UB

 1
52119A - COVER, FRONT BUMPER
52119-20080

CT140,RT140,TT14#..SED

W/*UB

 1
52119-20090

CT140,RT140,TT14#..DLX,STD,TAX

W/P.P.BUMPER,W/O MOULDING

 1
52721 - MOULDING, FRONT BUMPER EXTENSION, RH
52712-20021

CT140,RT140,TT14#..DLX,STD,TAX

BLACK

 1
52722 - MOULDING, FRONT BUMPER EXTENSION, LH
52713-20021

CT140,RT140,TT14#..DLX,STD,TAX

BLACK

 1
Common parts
90119-10240
90179-06115
90468-04029
91655-40616
91655-61030
93568-15012

(8201-8612)SED

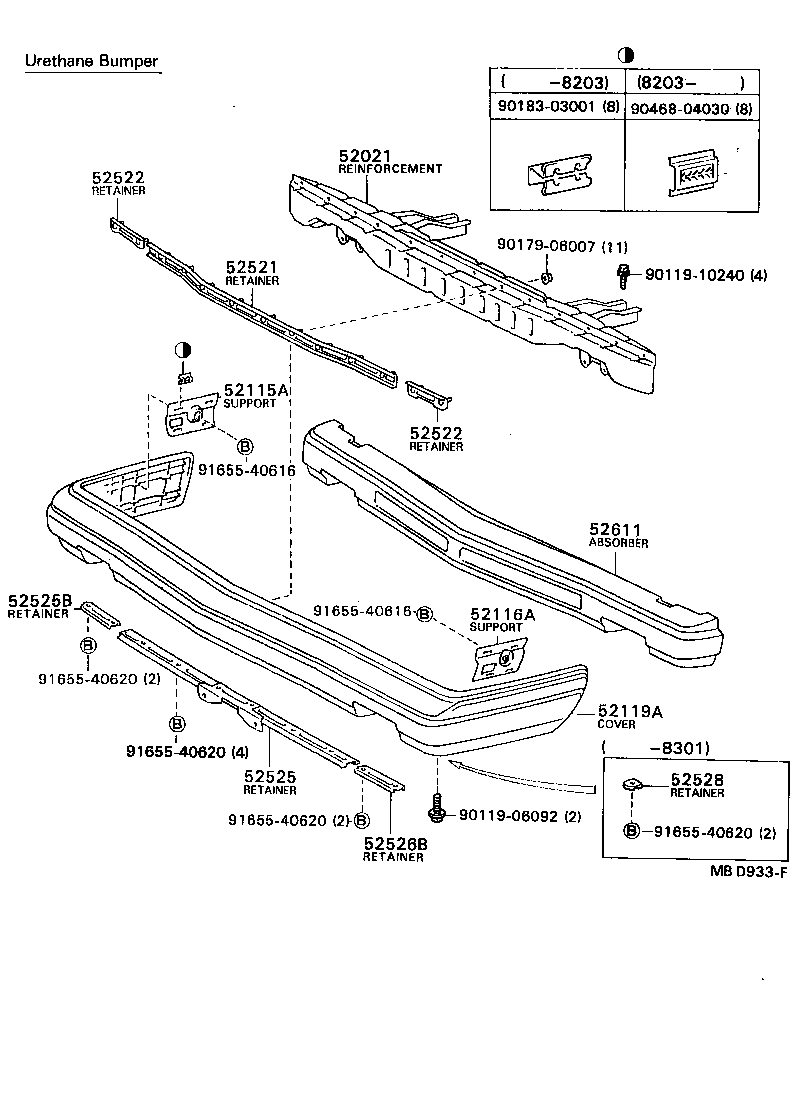

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52521 52522 52522 52525 52525B 52526B 52528 52611 9011906092 9011910240 9017906007 9018303001 9046804030 9165540616 9165540616 9165540620 9165540620 9165540620 9165540620
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20050

CT140,RT140,TT14#..SED

W/*UB

 1
52021-20040

CT140,RT140,TT14#

W/P.P.BUMPER

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20101

CT140,RT140,TT14#

W/P.P.BUMPER

 1
52115-20110

CT140,RT140,TT14#..SED

W/*UB

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20081

CT140,RT140,TT14#

W/P.P.BUMPER

 1
52116-20090

CT140,RT140,TT14#..SED

W/*UB

 1
52119A - COVER, FRONT BUMPER
52119-20080

CT140,RT140,TT14#..SED

W/*UB

 1
52119-20090

CT140,RT140,TT14#..DLX,STD,TAX

W/P.P.BUMPER,W/O MOULDING

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20020

CT140,RT140,TT14#..SED

 1
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-20030

CT140,RT140,TT14#..SED

 2
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-20030

CT140,RT140,TT14#..SED

 2
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-20020

CT140,RT140,TT14#..SED

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-20010

CT140,RT140,TT14#..SED

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-20010

CT140,RT140,TT14#..SED

 1
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-20010

CT140,RT140,TT14#..SED

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20020

CT140,RT140,TT14#..SED

 1
Common parts
90119-06092
90119-10240
90179-06007
90183-03001
90468-04030
91655-40616
91655-40620
