TT140L-TEJRS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )RT142,TT14#..MTM ; (8508- )ST141..5F..GEN

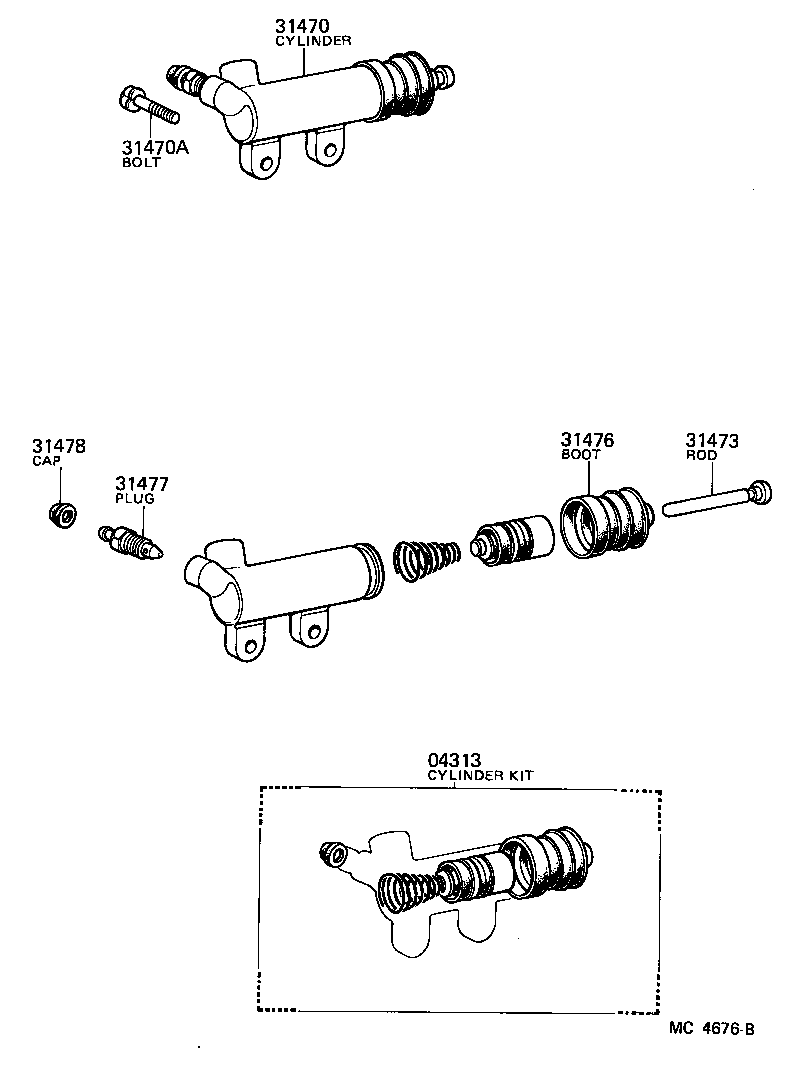

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-22020

CT14#,RT14#,TT14#,YT140..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-14021

TT140..3H,4H

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

CT14#,RT14#,ST141,TT14#,YT140..MTM

*8-1.25PX25-25

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-22010

TT140..3H,4H

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

CT140,RT14#,TT14#..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

CT140,RT14#,TT14#..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

CT14#,RT14#,ST141,TT14#,YT140..MTM

 1
