TT140L-TEJRS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)2T,3T

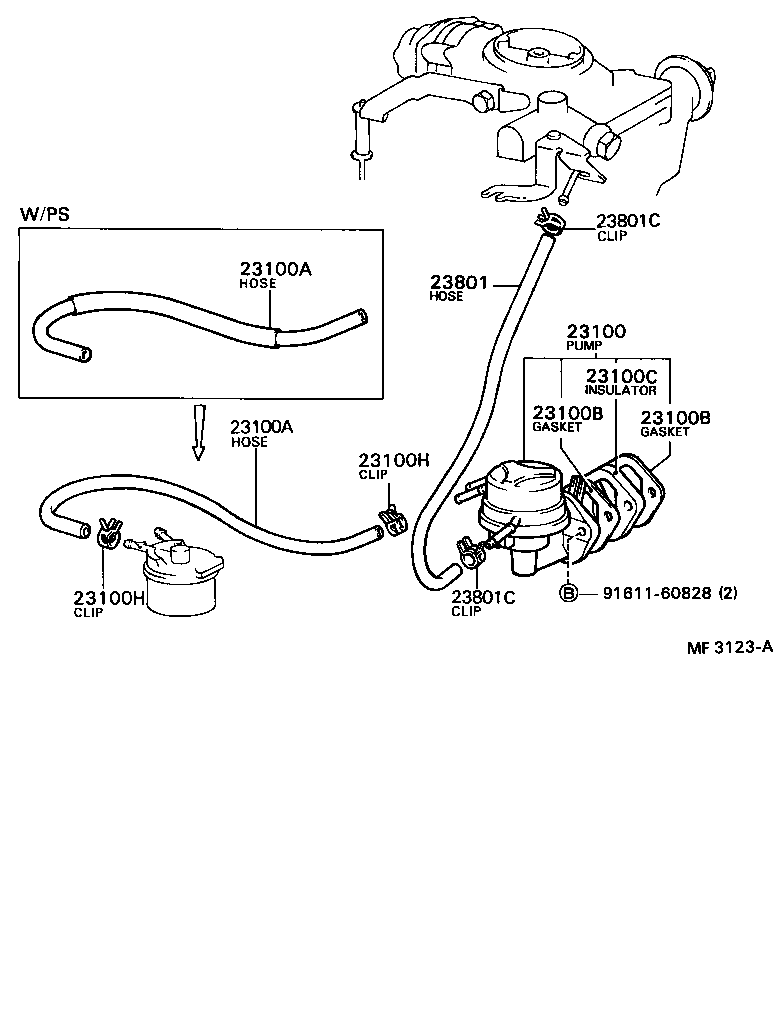

Click highlighted areas on diagram

diagram 23100 23100A 23100A 23100B 23100B 23100C 23100H 23100H 23801 23801C 23801C 9161160828
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-19105

2T..TT140..4H;2T..TT140..WG..LHD;2T,3T..TT14#..(3FC,4F,5F)..ME

 1
23100-19106

2T..TT140..4H;2T..TT140..WG..LHD;3T..TT141..LHD..3FC..GEN;2T,3T..TT14#..(3FC,4F,5F)..ME

 1
23100A - HOSE, FUEL
95332-06030

2T,3T..TT14#

*H,L=280

 1
23100A - HOSE, FUEL
95332-06030

2T,3T..TT14#

*H,L=280

 1
23100B - GASKET, FUEL PUMP
90923-05005

2T,3T..TT14#

 2
23100B - GASKET, FUEL PUMP
90923-05005

2T,3T..TT14#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

2T,3T..TT14#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2T,3T..TT14#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2T,3T..TT14#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06030

2T,3T..TT14#

*H,L=300

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2T,3T..TT14#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2T,3T..TT14#

 2
Common parts
91611-60828
