TT140L-TEJRS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 2T
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)2T,3T

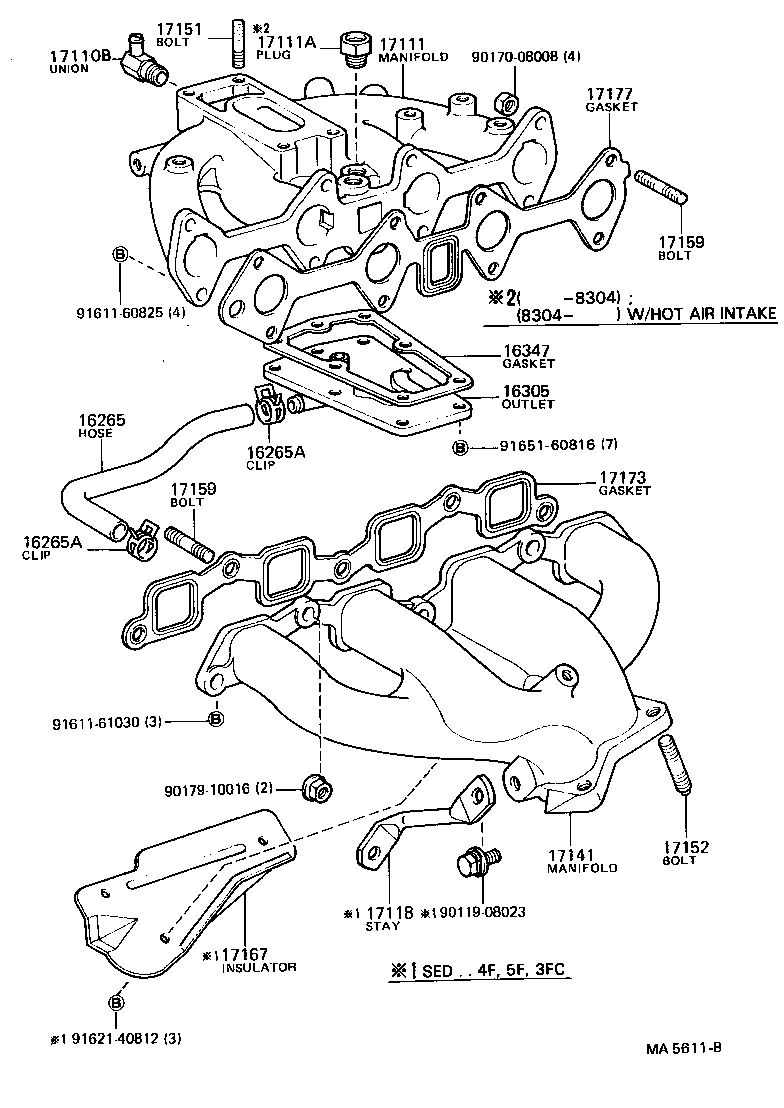

Click highlighted areas on diagram

diagram 16265 16265A 16265A 16305 16347 17110B 17111 17111A 17118 17141 17151 17152 17159 17159 17167 17173 17177 9011908023 9017008008 9017910016 9161160825 9161161030 9162140812 9165160816
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
90445-21611

2T,3T..TT14#

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-20005

2T,3T..TT14#

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-20005

2T,3T..TT14#

 2
16305 - OUTLET SUB-ASSY, WATER BY-PASS
16305-25011

2T,3T..TT14#

 1
16347 - GASKET, WATER BY-PASS
16347-25012

2T,3T..TT14#

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90407-09001

2T..TT140;3T..TT141..RHD;3T..TT141..3FC..ME;3T..TT141..LHD..MTM

 1
90404-53018

2T,3T..TT14#..SED..LHD..GEN;2T,3T..TT14#..RHD..(3FC,4F,5F)

 1
17111 - MANIFOLD, INTAKE
17111-26051

2T,3T..TT14#

 1
17111A - PLUG, NO.1
90345-53002

2T,3T..TT14#

 1
17141 - MANIFOLD, EXHAUST
17141-27011

2T,3T..TT14#..WG;2T..TT140..3H,4H

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08023

2T,3T..TT14#

L=41,S=14&14

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10056

2T,3T..TT14#

L=43,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08035

2T,3T..TT14#

INTAKE MANIFOLD

 4
92122-61025

2T,3T..TT14#

EXHAUST MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08035

2T,3T..TT14#

INTAKE MANIFOLD

 4
92122-61025

2T,3T..TT14#

EXHAUST MANIFOLD

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-25012

2T,3T..TT14#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-25030

2T,3T..TT14#

 1
Common parts
90119-08023
90170-08008
90179-10016
91611-60825
91611-61030
91621-40812
91651-60816
