ST141RG-TWMDCQ (1983)

Toyota Corona Fr

Production Apr 1983 - Dec 1986
Engine 2SC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8612)2S#

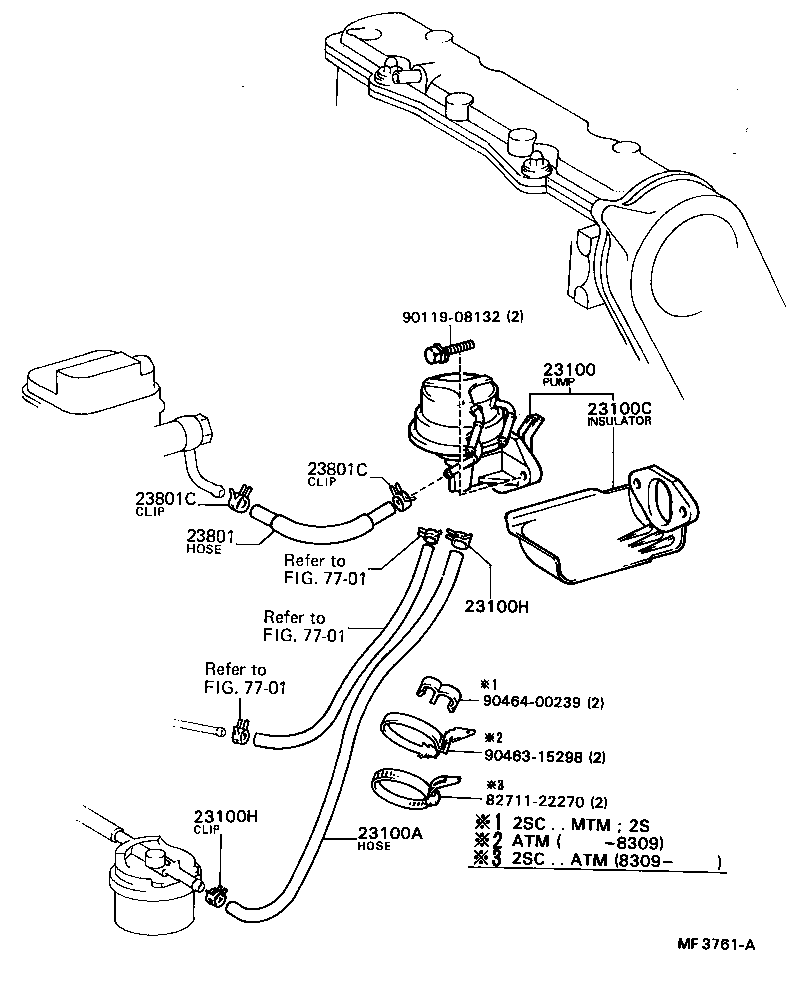

Click highlighted areas on diagram

diagram 23100 23100A 23100C 23100H 23100H 23801 23801C 23801C 7701 7701 7701 8271122270 9011908132 9046315298 9046400239
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-69075

2SC..ST141

 1
23100-79045

2S#..ST141

 1
23100A - HOSE, FUEL
23271-74080

2S..ST141

 1
95332-06060

2SC..ST141..MTM

*H,L=500

 1
23100C - INSULATOR, FUEL PUMP
23915-63010

2S#..ST141

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2S#..ST141

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2S#..ST141

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23271-74050

2S#..ST141

 1
95332-06020

2SC..ST141

*H,L=140

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2S#..ST141

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2S#..ST141

 2
Common parts
82711-22270
90119-08132
90463-15298
90464-00239
Linked diagrams
7701
