ST141RG-TWMDCQ (1983)

Toyota Corona Fr

Production Apr 1983 - Dec 1986
Engine 2SC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8612)2SC

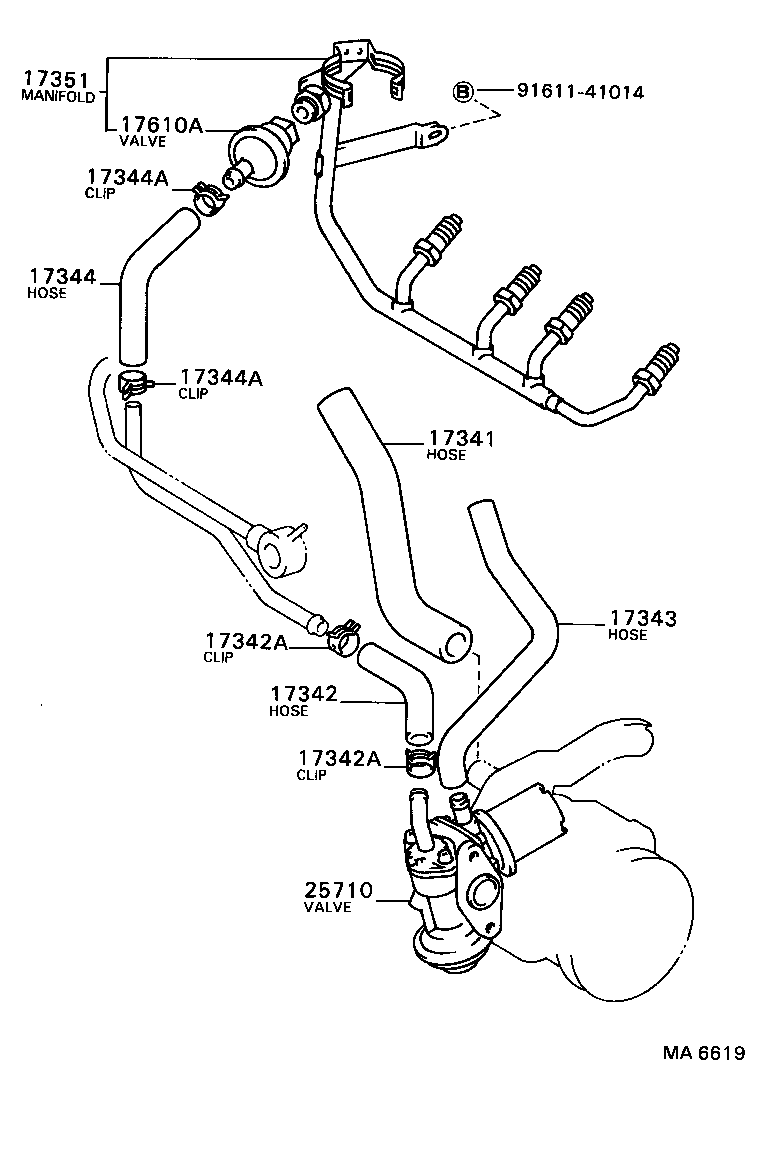

Click highlighted areas on diagram

diagram 17341 17342 17342A 17342A 17343 17344 17344A 17344A 17351 17610A 25710 9161141014
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-74030

2SC..ST141

 1
17341-74020

2SC..ST141

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-74020

2SC..ST141

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-23003

2SC..ST141

 2
90467-21001

2SC..ST141

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-23003

2SC..ST141

 2
90467-21001

2SC..ST141

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-74020

2SC..ST141

 1
17343-74030

2SC..ST141

 1
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17342-74020

2SC..ST141

 1
17344A - CLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4
90467-23003

2SC..ST141

 2
90467-21001

2SC..ST141

 2
17344A - CLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4
90467-23003

2SC..ST141

 2
90467-21001

2SC..ST141

 2
17351 - MANIFOLD, AIR INJECTION
17351-74010

2SC..ST141

 1
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10045

2SC..ST141

 1
25710 - VALVE ASSY, AIR SWITCHING
25710-74010

2SC..ST141

 1
Common parts
91611-41014
