ST141RG-TWMDCQ (1983)

Toyota Corona Fr

Production Apr 1983 - Dec 1986
Engine 2SC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8612)2S#

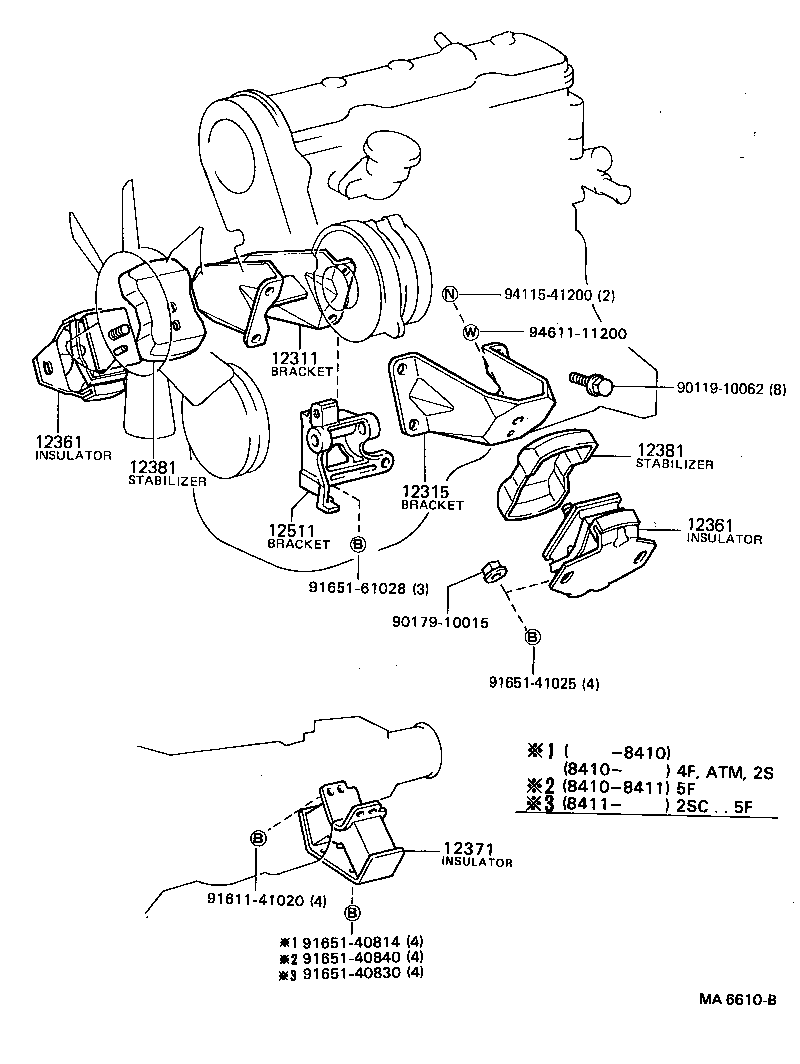

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12511 9011910062 9017910015 9161141020 9165140814 9165140830 9165140840 9165141025 9165161028 9411541200 9461111200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-63010

2S#..ST141

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-63010

2S#..ST141

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-63010

2S#..ST141

TOYO

 2
12361-63020

2S#..ST141

MARUYASU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-63010

2S#..ST141

TOYO

 2
12361-63020

2S#..ST141

MARUYASU

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-74010

2S#..ST141

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-63020

2S#..ST141

MARUYASU

 2
12381-63010

2S#..ST141

TOYO

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-63020

2S#..ST141

MARUYASU

 2
12381-63010

2S#..ST141

TOYO

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-63010

2S#..ST141

 1
Common parts
90119-10062
90179-10015
91611-41020
91651-40814
91651-40830
91651-40840
91651-41025
91651-61028
94115-41200
94611-11200
