ST141RG-TWKRCQ (1983)
Toyota Corona Fr

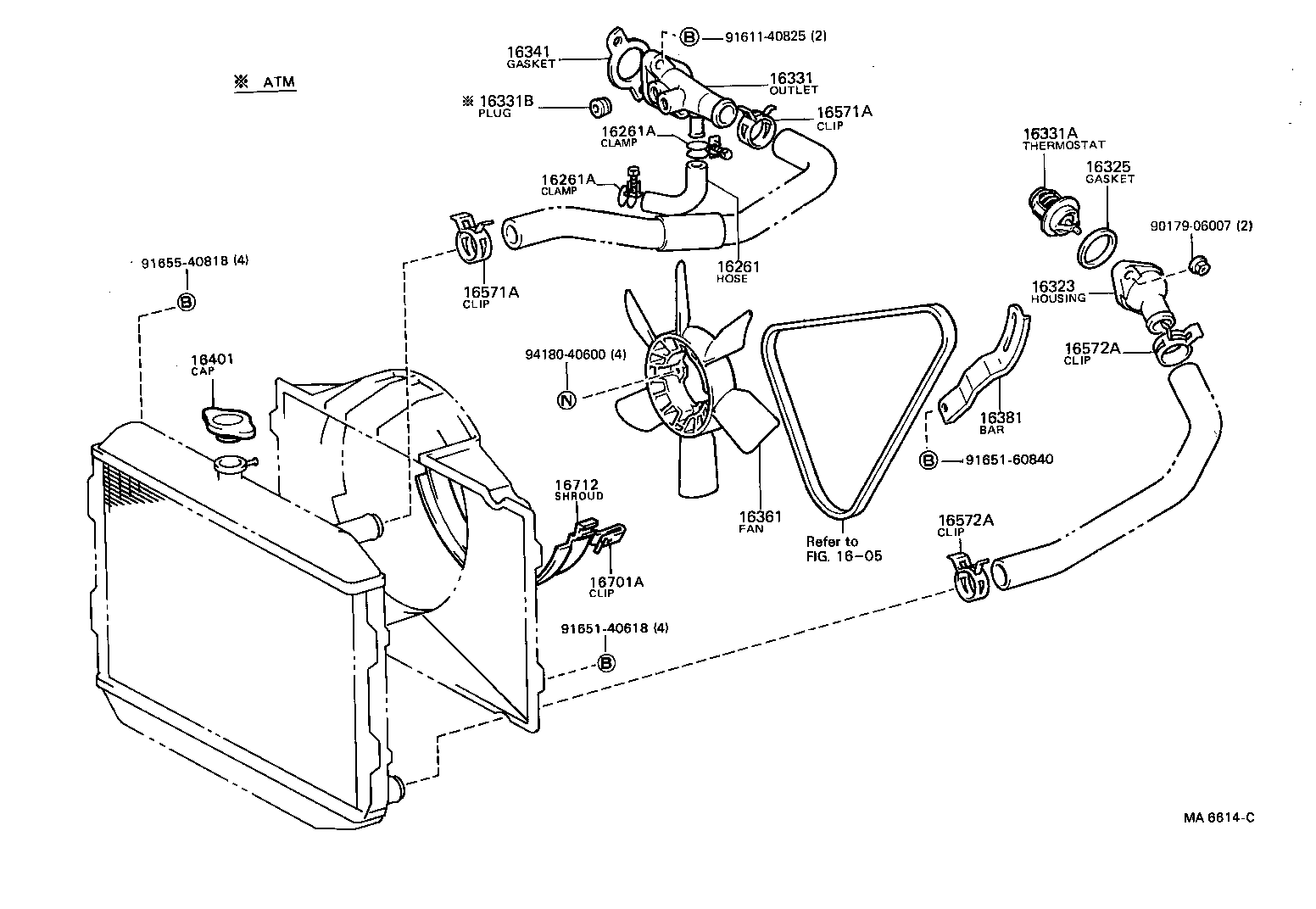

(8304-8612)2SC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-63010 |
2S#..ST141 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
2SC..ST141 |
2 | ||
| 90467-21001 |
2S..ST141 |
2 | ||
| 96111-10250 |
2SC..ST141 |
2 | ||
| 96112-10250 |
2SC..ST141 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
2SC..ST141 |
2 | ||
| 90467-21001 |
2S..ST141 |
2 | ||
| 96111-10250 |
2SC..ST141 |
2 | ||
| 96112-10250 |
2SC..ST141 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-63010 |
2S#..ST141 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
2S#..ST141 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-63010 |
2S#..ST141..MTM |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2S#..ST141 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-63010 |
2S#..ST141 |
1 | ||
| 16361 - FAN | ||||
| 16361-45020 |
2S#..ST141 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-63010 |
2S#..ST141 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
2S#..ST141 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
2SC..ST141 |
2 | ||
| 90467-34001 |
2S..ST141 RADIATOR SIDE |
1 | ||
| 90467-37001 |
2S..ST141 ENGINE SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
2SC..ST141 |
2 | ||
| 90467-34001 |
2S..ST141 RADIATOR SIDE |
1 | ||
| 90467-37001 |
2S..ST141 ENGINE SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34001 |
2SC..ST141 |
2 | ||
| 90467-34001 |
2S..ST141 RADIATOR SIDE |
1 | ||
| 90467-37001 |
2S..ST141 ENGINE SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34001 |
2SC..ST141 |
2 | ||
| 90467-34001 |
2S..ST141 RADIATOR SIDE |
1 | ||
| 90467-37001 |
2S..ST141 ENGINE SIDE |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2S#..ST141 RADIATOR SINGLE CORE,W/COOLER |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54050 |
2S#..ST141 W/COOLER |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 91611-40825 | ||||
| 91651-40618 | ||||
| 91651-60840 | ||||
| 91655-40818 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1605 | ||||

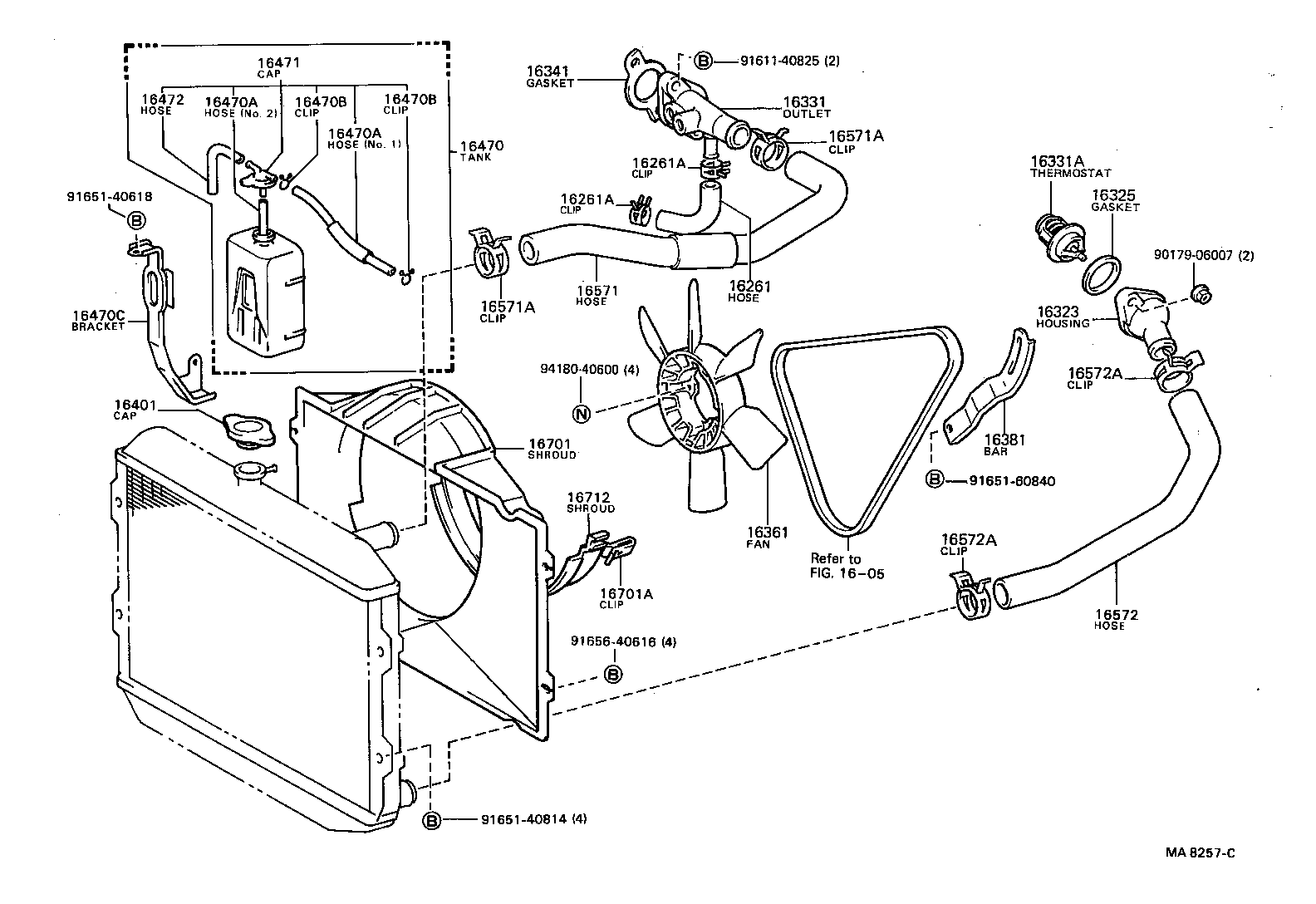

(8508-8612)2S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-63010 |
2S#..ST141 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
2SC..ST141 |
2 | ||
| 90467-21001 |
2S..ST141 |
2 | ||
| 96111-10250 |
2SC..ST141 |
2 | ||
| 96112-10250 |
2SC..ST141 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
2SC..ST141 |
2 | ||
| 90467-21001 |
2S..ST141 |
2 | ||
| 96111-10250 |
2SC..ST141 |
2 | ||
| 96112-10250 |
2SC..ST141 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-63010 |
2S#..ST141 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
2S#..ST141 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-63010 |
2S#..ST141..MTM |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2S#..ST141 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-63010 |
2S#..ST141 |
1 | ||
| 16361 - FAN | ||||
| 16361-45020 |
2S#..ST141 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-63010 |
2S#..ST141 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
2S#..ST141 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74020 |
2S..ST141 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2S..ST141 *H,L=470,NO.1,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2S..ST141 *H,L=470,NO.1,NO.2 |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-74020 |
2S..ST141 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74020 |
2S..ST141 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-30010 |
2S..ST141 |
1 | ||
| 85338-70100 |
2S..ST141 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74040 |
2S..ST141 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
2SC..ST141 |
2 | ||
| 90467-34001 |
2S..ST141 RADIATOR SIDE |
1 | ||
| 90467-37001 |
2S..ST141 ENGINE SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
2SC..ST141 |
2 | ||
| 90467-34001 |
2S..ST141 RADIATOR SIDE |
1 | ||
| 90467-37001 |
2S..ST141 ENGINE SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74040 |
2S..ST141 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34001 |
2SC..ST141 |
2 | ||
| 90467-34001 |
2S..ST141 RADIATOR SIDE |
1 | ||
| 90467-37001 |
2S..ST141 ENGINE SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34001 |
2SC..ST141 |
2 | ||
| 90467-34001 |
2S..ST141 RADIATOR SIDE |
1 | ||
| 90467-37001 |
2S..ST141 ENGINE SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74060 |
2S..ST141 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2S#..ST141 RADIATOR SINGLE CORE,W/COOLER |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54050 |
2S#..ST141 W/COOLER |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 91611-40825 | ||||
| 91651-40618 | ||||
| 91651-40814 | ||||
| 91651-60840 | ||||
| 91656-40616 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1605 | ||||
