CORONA FR
ST141RG-TWHRCQ (1983)
4505 - FRONT STEERING GEAR & LINK

ST141RG-TWHRCQ (1983)

Toyota Corona Fr

Production Apr 1983 - Dec 1986

Engine 2SC

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8201-8508)TT14#..3FC,4F,5F ; (8201-8508)CT140..LHD..DLX,STD ; (8304- )RT142,ST1

Click highlighted areas on diagram

Part #	Description	Period	Qty
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CT14#,RT14#,ST141,TT14#	01/1982 - 07/1999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CT14#,RT14#,ST141,TT14#	01/1982 - 07/1999	2
45460 - ROD ASSY, TIE, RH
45460-29225	RT142,ST141..ARL	04/1983 - 12/1986	1
45466 - CLAMP, TIE ROD END
45466-22010	CT14#,RT14#,ST141,TT14#,YT140	01/1982 - 07/1999	4
45466 - CLAMP, TIE ROD END
45466-22010	CT14#,RT14#,ST141,TT14#,YT140	01/1982 - 07/1999	4
45470 - ROD ASSY, TIE, LH
45460-29225	RT142,ST141..ARL	04/1983 - 12/1986	1
45611 - ARM, STEERING KNUCKLE, RH
45611-14090	RT142,ST141..ARL	04/1983 - 12/1986	1
45611A - BOLT, KNUCKLE STOPPER
90106-10032	CT14#,RT14#,ST141,TT14#,YT140 L=34	01/1982 - 07/1999	2
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-12491	CT14#,RT14#,ST141,TT14#,YT140 L=42	01/1982 - 07/1999	4
90101-12295	CT14#,RT14#,ST141,TT14#,YT140 L=35	01/1982 - 07/1999	4
90101-12379	CT14#,RT14#,ST141,TT14#,YT140 L=39	01/1982 - 07/1999	4
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-12491	CT14#,RT14#,ST141,TT14#,YT140 L=42	01/1982 - 07/1999	4
90101-12295	CT14#,RT14#,ST141,TT14#,YT140 L=35	01/1982 - 07/1999	4
90101-12379	CT14#,RT14#,ST141,TT14#,YT140 L=39	01/1982 - 07/1999	4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-15016	CT14#,RT14#,ST141,TT14#,YT140	01/1982 - 07/1999	4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-15016	CT14#,RT14#,ST141,TT14#,YT140	01/1982 - 07/1999	4
45612 - ARM, STEERING KNUCKLE, LH
45612-14090	RT142,ST141..ARL	04/1983 - 12/1986	1
45619 - COVER, KNUCKLE STOPPER
45619-14020	CT14#,RT14#,ST141,TT14#,YT140	01/1982 - 07/1999	2
Common parts
90101-08265
90170-08125
90170-10082
94511-00800
94512-01200
94531-01000
95381-03020

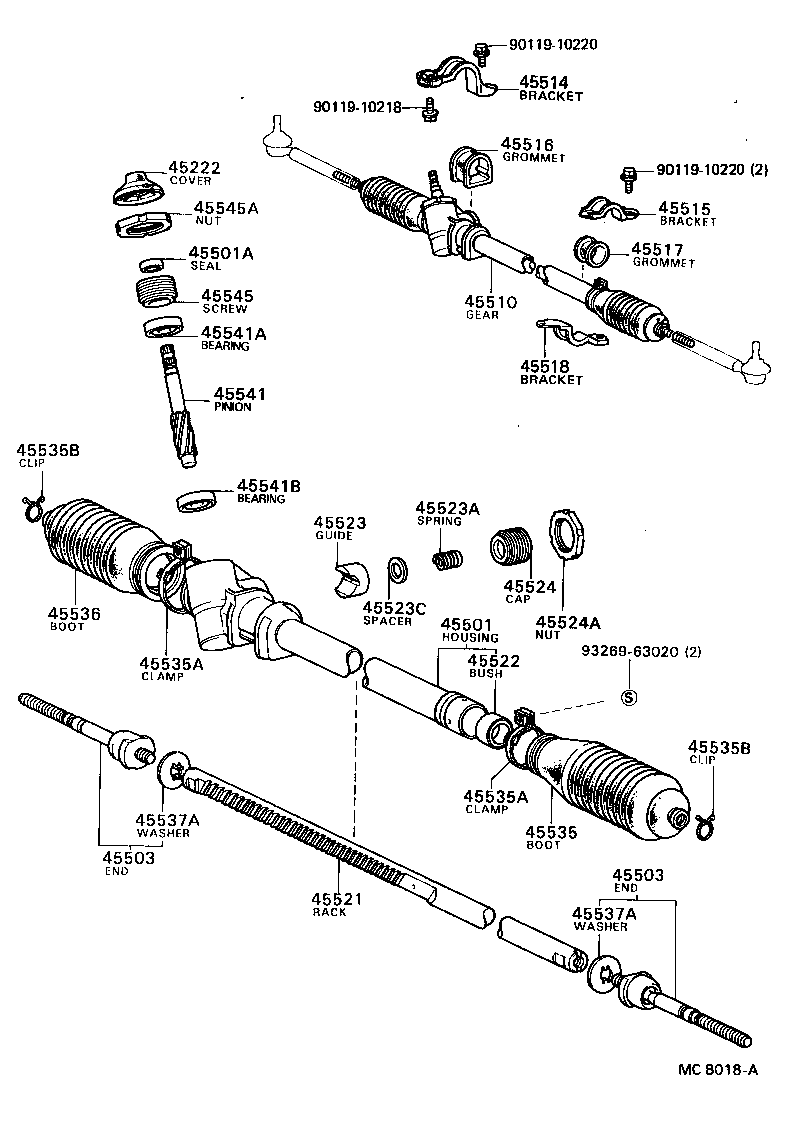

ILLUST NO. 2 OF 3(8201-8412)TT14#..SED..RHD..3FC,4F,5F ; (8304-)RT142,ST141

Click highlighted areas on diagram

Part #	Description	Period	Qty
45222 - COVER, STEERING GEAR DUST
45222-20010	RT142,ST141..ARL	04/1983 - 12/1986	1
45501 - HOUSING SUB-ASSY, STEERING RACK
45501-14011	RT142,ST141..ARL	04/1983 - 12/1986	1
45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
90311-15001	RT142,ST141..ARL	04/1983 - 12/1986	1
45503 - END SUB-ASSY, STEERING RACK
45503-29016	RT142,ST141..ARL	04/1983 - 12/1986	2
45503 - END SUB-ASSY, STEERING RACK
45503-29016	RT142,ST141..ARL	04/1983 - 12/1986	2
45510 - GEAR ASSY, STEERING
45510-14020	RT142,ST141..ARL	04/1983 - 12/1986	1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-14012	RT142,ST141..ARL	04/1983 - 12/1986	1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-14040	RT142,ST141..ARL	04/1983 - 12/1986	1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-24010	RT142,ST141..ARL	04/1983 - 12/1986	1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-14020	RT142,ST141..ARL	04/1983 - 12/1986	1
45518 - BRACKET, STEERING RACK HOUSING, NO.3
45518-14010	RT142,ST141..ARL	04/1983 - 12/1986	1
45521 - RACK, STEERING
45521-14021	RT142,ST141..ARL	04/1983 - 12/1986	1
45522 - BUSH, STEERING RACK
45522-22010	RT142,ST141..ARL	04/1983 - 12/1986	1
45523 - GUIDE, RACK(FOR STEERING GEAR)
45523-16011	RT142,ST141..ARL	04/1983 - 12/1986	1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90501-23007	RT142,ST141..ARL	04/1983 - 12/1986	1
45523C - SPACER(FOR RACK GUIDE)
90560-23003	RT142,ST141..ARL	04/1983 - 12/1986	1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-16010	RT142,ST141..ARL	04/1983 - 12/1986	1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
90179-36001	ST141	04/1983 - 10/1983	1
90179-36002	RT142,ST141..ARL	10/1983 - 12/1986	1
45535 - BOOT, STEERING RACK, NO.1
45535-22010	ST141	04/1983 - 05/1983	1
45535-22011	RT142,ST141..ARL	05/1983 - 12/1986	1
45535A - CLAMP(FOR STEERING RACK BOOT)
90461-10273	RT142,ST141..ARL ID=41.5	04/1983 - 12/1986	1
90461-10524	RT142,ST141..ARL ID=61.5	04/1983 - 12/1986	1
45535A - CLAMP(FOR STEERING RACK BOOT)
90461-10273	RT142,ST141..ARL ID=41.5	04/1983 - 12/1986	1
90461-10524	RT142,ST141..ARL ID=61.5	04/1983 - 12/1986	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-18003	RT142,ST141..ARL	04/1983 - 12/1986	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-18003	RT142,ST141..ARL	04/1983 - 12/1986	2
45536 - BOOT, STEERING RACK, NO.2
45536-14020	RT142,ST141..ARL	04/1983 - 12/1986	1
45537A - WASHER, CLAW(FOR STEERING RACK END LOCK)
90214-14005	RT142,ST141..ARL	04/1983 - 12/1986	2
45537A - WASHER, CLAW(FOR STEERING RACK END LOCK)
90214-14005	RT142,ST141..ARL	04/1983 - 12/1986	2
45541 - PINION, STEERING
45541-22010	RT142,ST141..ARL	04/1983 - 12/1986	1
45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER)
90363-15006	RT142,ST141..ARL	04/1983 - 12/1986	1
45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER)
90363-15005	RT142,ST141..ARL	04/1983 - 12/1986	1
45545 - SCREW, PINION BEARING ADJUSTING
45545-22010	RT142,ST141..ARL	04/1983 - 12/1986	1
45545A - NUT(FOR PINION BEARING ADJUSTING SCREW)
90179-42001	RT142,ST141..ARL	04/1983 - 12/1986	1
Common parts
90119-10218
90119-10220
93269-63020

ILLUST NO. 2 OF 3(8201-8508)RT140 ; (8201-8508)4H,5F..STD,TAX ; (8201-8508)TT14#..WG..LHD ; (8508-

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90101-12017
90101-12033
90105-12103
90201-12452
91611-60820
93381-16008
94115-41200
94120-41000
94511-02000
94512-01200
95381-03020

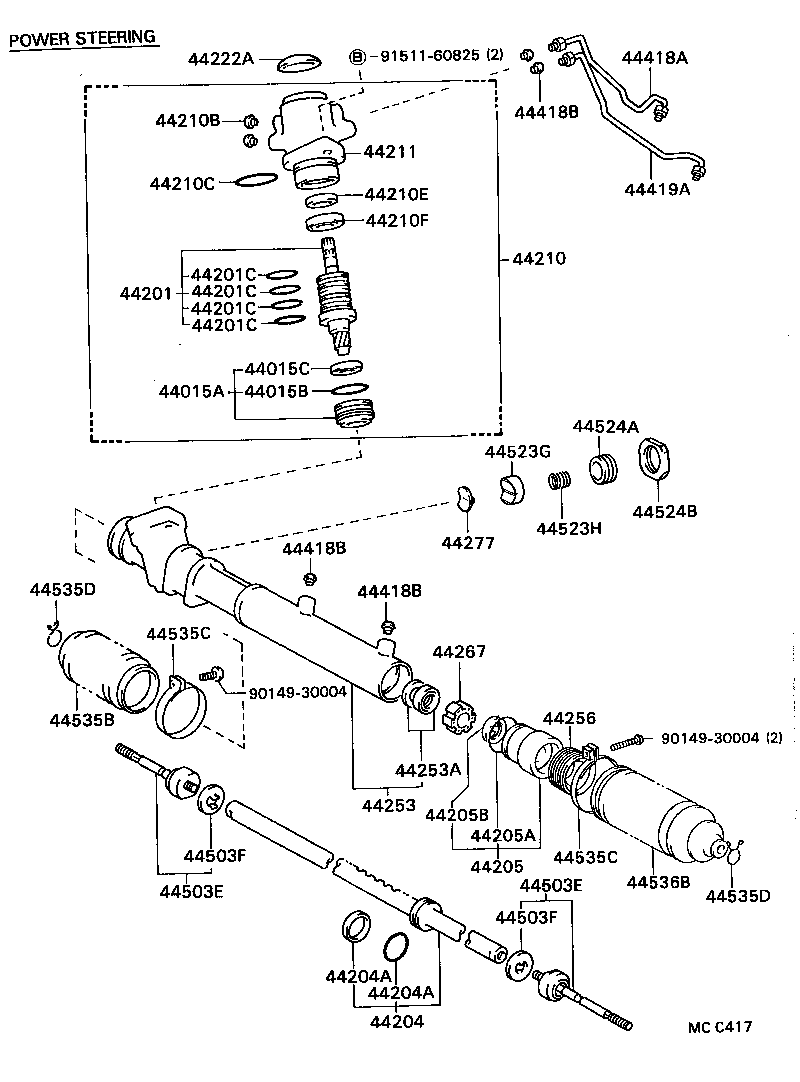

ILLUST NO. 2 OF 3(8508- )RT142,ST141

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90149-30004
91511-60825

ILLUST NO. 1 OF 3(8201-8508)3H,4H ; (8201-8508)TT14#..WG ; (8201-8508)CT140,RT140..STD,TAX ; (8508-

Click highlighted areas on diagram

Part #	Description	Period	Qty
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CT14#,RT14#,ST141,TT14#	01/1982 - 07/1999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CT14#,RT14#,ST141,TT14#	01/1982 - 07/1999	2
45460 - ROD ASSY, TIE, RH
45460-29225	RT142,ST141..ARL	04/1983 - 12/1986	1
45466 - CLAMP, TIE ROD END
45466-22010	CT14#,RT14#,ST141,TT14#,YT140	01/1982 - 07/1999	4
45466 - CLAMP, TIE ROD END
45466-22010	CT14#,RT14#,ST141,TT14#,YT140	01/1982 - 07/1999	4
45466 - CLAMP, TIE ROD END
45466-22010	CT14#,RT14#,ST141,TT14#,YT140	01/1982 - 07/1999	4
45470 - ROD ASSY, TIE, LH
45460-29225	RT142,ST141..ARL	04/1983 - 12/1986	1
45490 - ARM ASSY, STEERING IDLER
45490-19265	CT140,RT140,ST141,TT14#..WG	01/1982 - 12/1986	1
45611 - ARM, STEERING KNUCKLE, RH
45611-14090	RT142,ST141..ARL	04/1983 - 12/1986	1
45611A - BOLT, KNUCKLE STOPPER
90106-10032	CT14#,RT14#,ST141,TT14#,YT140 L=34	01/1982 - 07/1999	2
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-12491	CT14#,RT14#,ST141,TT14#,YT140 L=42	01/1982 - 07/1999	4
90101-12295	CT14#,RT14#,ST141,TT14#,YT140 L=35	01/1982 - 07/1999	4
90101-12379	CT14#,RT14#,ST141,TT14#,YT140 L=39	01/1982 - 07/1999	4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-15016	CT14#,RT14#,ST141,TT14#,YT140	01/1982 - 07/1999	4
45612 - ARM, STEERING KNUCKLE, LH
45612-14090	RT142,ST141..ARL	04/1983 - 12/1986	1
45619 - COVER, KNUCKLE STOPPER
45619-14020	CT14#,RT14#,ST141,TT14#,YT140	01/1982 - 07/1999	2
Common parts
90101-08265
90170-08125
90170-10082
90201-12452
91611-40612
94115-41200
94511-00800
94512-01200
94531-01000
95381-03020
