ST141RG-TWHDCQ (1983)
Toyota Corona Fr
Production
Apr 1983
-
Dec 1986
Engine
2SC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8304- )ARL

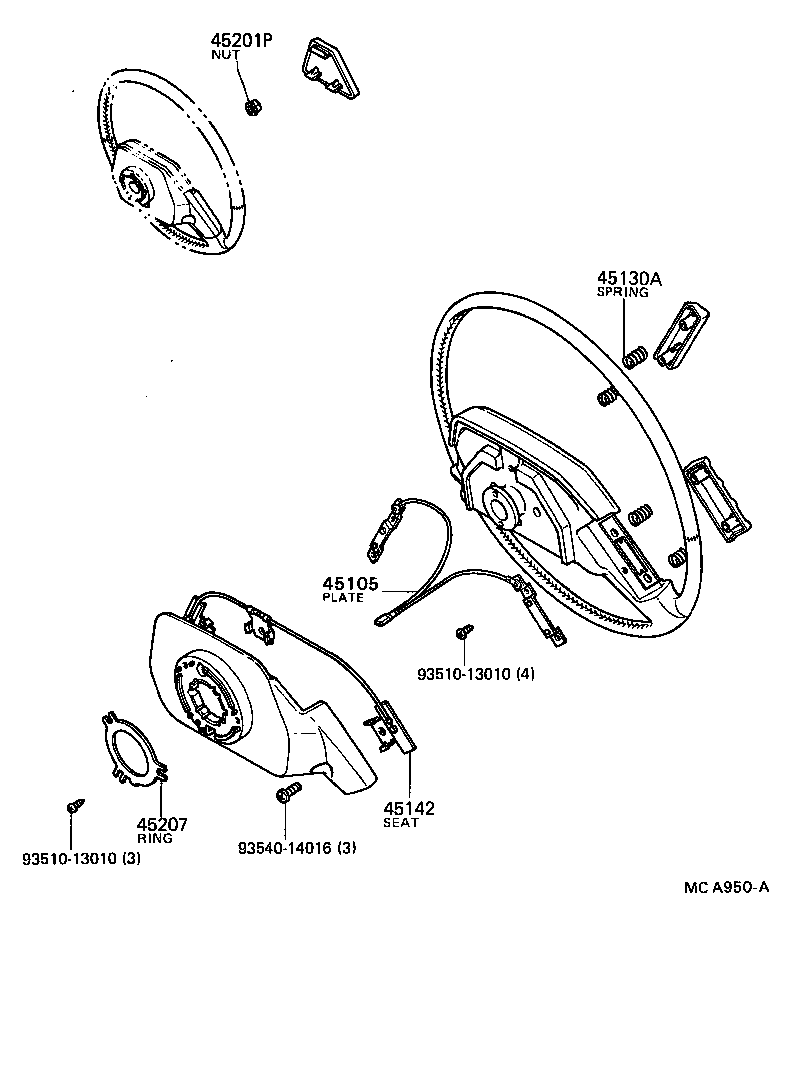

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-14040 |
RT142,ST141..ARL |
1 | ||
| 45130A - SPRING, COMPRESSION(FOR HORN BUTTON) | ||||
| 90501-09023 |
RT142,ST141..ARL |
4 | ||
| 45142 - SEAT, HORN BUTTON CONTACT, NO.1 | ||||
| 45109-14010 |
RT142,ST141..ARL |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CT14#,RT14#,ST141,TT14#,YT140 |
1 | ||
| 45207 - RING, HORN CONTACT | ||||
| 45176-14050 |
CT14#,RT14#,ST141,TT14#,YT140 |
1 | ||
| Common parts | ||||
| 93510-13010 | ||||
| 93540-14016 | ||||
