ST141R-TEPNCQ (1983)
Toyota Corona Fr

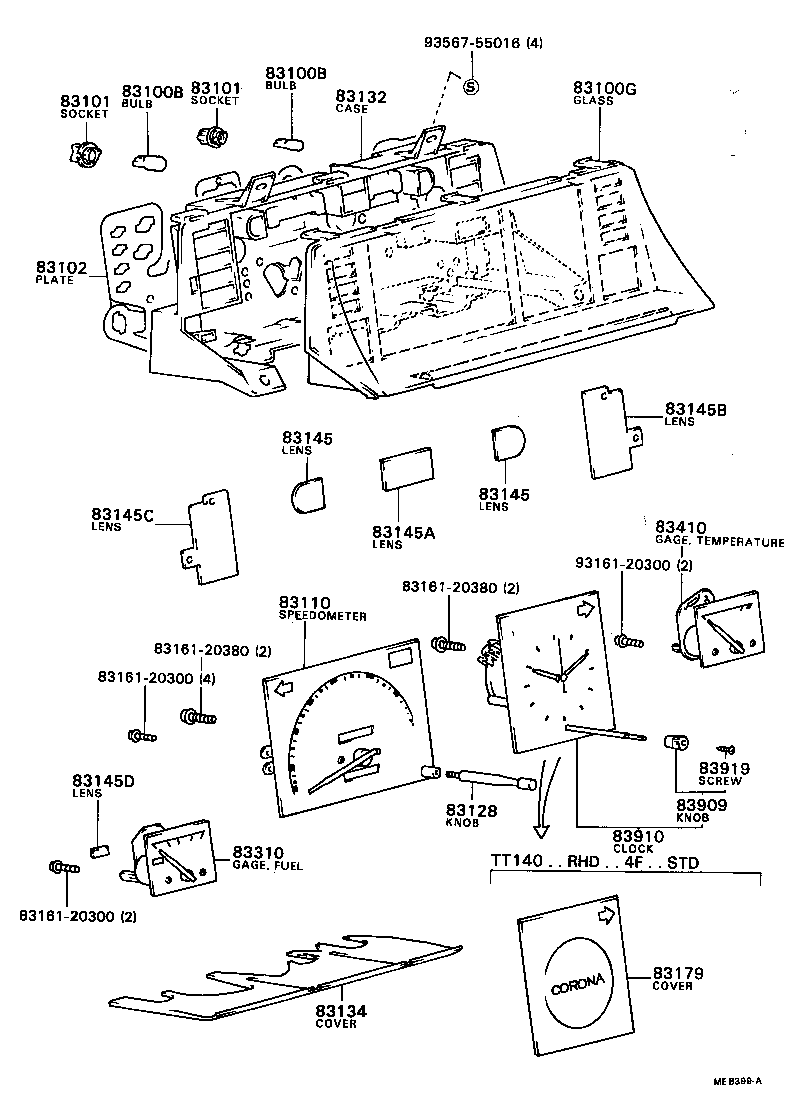

(8201-8508)RHD..3FC,4F,5F..DLX,STD ; (8508-8612)CS,S ; (8508-8612)RT142..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CT14#,RT14#,ST141,TT14#,YT140 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
CT14#,RT14#,ST141,TT14#,YT140 12V 1.2W W/O SOCKET,12V 1.4W |
7 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CT14#,RT14#,ST141,TT14#,YT140 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
CT14#,RT14#,ST141,TT14#,YT140 12V 1.2W W/O SOCKET,12V 1.4W |
7 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-2B140 |
ST141..CSX W/TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CT14#,RT14#,ST141,TT14#,YT140 BULB:12V 1.4W(OD=11.3) |
11 | ||
| 83101-20040 |
CT14#,RT142,ST141,TT14#,YT140..RHD BULB:12V 3.4W(OD=18) |
10 | ||
| 83101-20070 |
ST141..CSX BULB:12V 3.4W(OD=18)GREEN CAP |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CT14#,RT14#,ST141,TT14#,YT140 BULB:12V 1.4W(OD=11.3) |
11 | ||
| 83101-20040 |
CT14#,RT142,ST141,TT14#,YT140..RHD BULB:12V 3.4W(OD=18) |
10 | ||
| 83101-20070 |
ST141..CSX BULB:12V 3.4W(OD=18)GREEN CAP |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-2B160 |
ST141..CSX |
1 | ||
| 83247-2B160 |
RT142,ST141..CSI,CSX,CXI |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B590 |
ST141..CSX |
1 | ||
| 83110-2B100 |
RT142,ST141..CSI,CSX,CXI |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-20720 |
ST141..CSX W/TACHOMETER |
2 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20160 |
ST141..CSX W/TACHOMETER |
1 | ||
| 83132-2B320 |
ST141..CSX |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-2B220 |
RT142,ST141..CSI,CSX,CXI |
1 | ||
| 83134-2B220 |
ST141..CSX |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-2B060 |
ST141..CSX TURN |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-2B060 |
ST141..CSX TURN |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-2B080 |
ST141..CSX BEAM |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-20360 |
ST141..CSX W/TACHOMETER |
1 | ||
| 83145-20360 |
ST141..CSX W/TACHOMETER |
1 | ||
| 83131-2B020 |
ST141..CSX |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-2B340 |
ST141..CSX FUEL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-2B100 |
ST141..CSX W/TACHOMETER |
1 | ||
| 83243-20340 |
ST141..CSX |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-2B160 |
RT142,ST141..CSI,CSX,CXI W/TACHOMETER |
1 | ||
| 83244-20220 |
ST141..CSX |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
CT140,ST141,TT14#..RHD..(3FC,4F,5F)..(CS,DLX,S,STD) ANALOGUE |
1 | ||
| 83909-12230 |
ST141..CSX DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20450 |
ST141..CS,S |
1 | ||
| 83910-20310 |
ST141..CSX |
1 | ||
| 83910-20380 |
ST141..CS,S |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
ST141..CSX |
1 | ||
| 83919-14012 |
CT140,ST141,TT14#..RHD..(3FC,4F,5F)..(CS,DLX,S,STD) ANALOGUE |
1 | ||
| Common parts | ||||
| 83161-20300 | ||||
| 83161-20380 | ||||
| 93161-20300 | ||||
| 93567-55016 | ||||

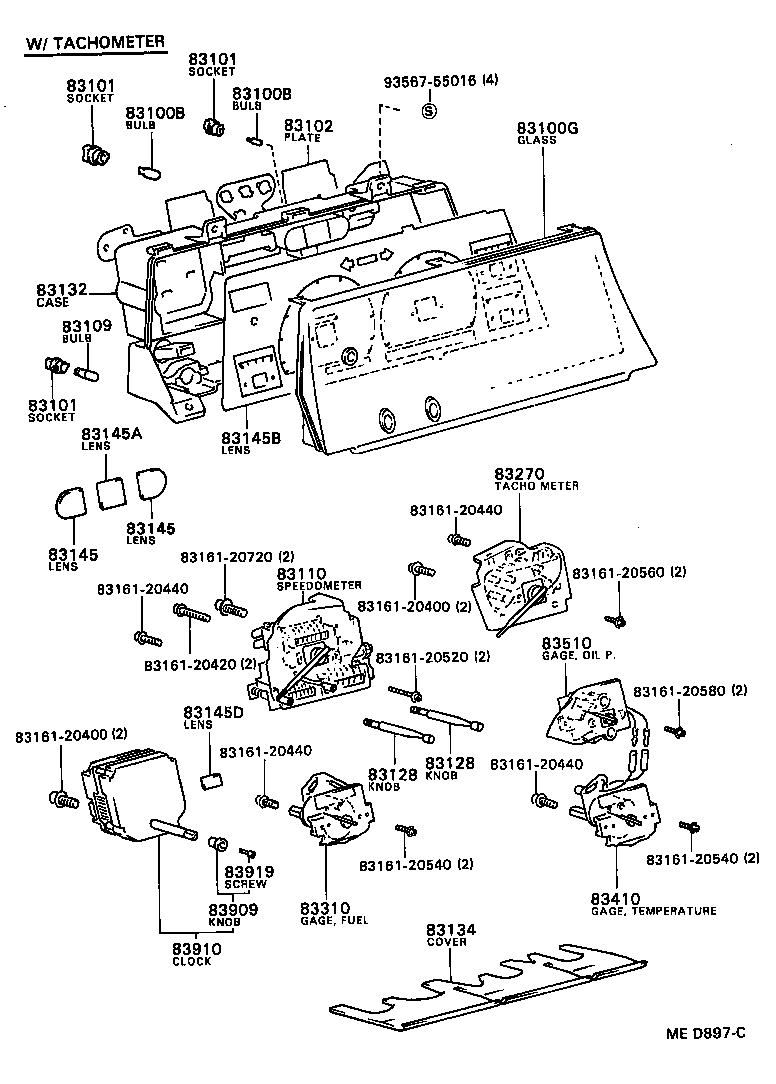

(8201-8508)RHD..DLX,GL ; (8508-8612)SED..CSI,CSX,CXI
W/TACHOMETER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CT14#,RT14#,ST141,TT14#,YT140 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
CT14#,RT14#,ST141,TT14#,YT140 12V 1.2W W/O SOCKET,12V 1.4W |
7 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CT14#,RT14#,ST141,TT14#,YT140 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
CT14#,RT14#,ST141,TT14#,YT140 12V 1.2W W/O SOCKET,12V 1.4W |
7 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-2B140 |
ST141..CSX W/TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CT14#,RT14#,ST141,TT14#,YT140 BULB:12V 1.4W(OD=11.3) |
11 | ||
| 83101-20040 |
CT14#,RT142,ST141,TT14#,YT140..RHD BULB:12V 3.4W(OD=18) |
10 | ||
| 83101-20070 |
ST141..CSX BULB:12V 3.4W(OD=18)GREEN CAP |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CT14#,RT14#,ST141,TT14#,YT140 BULB:12V 1.4W(OD=11.3) |
11 | ||
| 83101-20040 |
CT14#,RT142,ST141,TT14#,YT140..RHD BULB:12V 3.4W(OD=18) |
10 | ||
| 83101-20070 |
ST141..CSX BULB:12V 3.4W(OD=18)GREEN CAP |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CT14#,RT14#,ST141,TT14#,YT140 BULB:12V 1.4W(OD=11.3) |
11 | ||
| 83101-20040 |
CT14#,RT142,ST141,TT14#,YT140..RHD BULB:12V 3.4W(OD=18) |
10 | ||
| 83101-20070 |
ST141..CSX BULB:12V 3.4W(OD=18)GREEN CAP |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-2B160 |
ST141..CSX |
1 | ||
| 83247-2B160 |
RT142,ST141..CSI,CSX,CXI |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
ST141..CSX 12V3.4W W(GREEN CAP),GREEN CAP BULB,12V 3.4W |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B590 |
ST141..CSX |
1 | ||
| 83110-2B100 |
RT142,ST141..CSI,CSX,CXI |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-20720 |
ST141..CSX W/TACHOMETER |
2 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-20720 |
ST141..CSX W/TACHOMETER |
2 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20160 |
ST141..CSX W/TACHOMETER |
1 | ||
| 83132-2B320 |
ST141..CSX |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-2B220 |
RT142,ST141..CSI,CSX,CXI |
1 | ||
| 83134-2B220 |
ST141..CSX |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-2B060 |
ST141..CSX TURN |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-2B060 |
ST141..CSX TURN |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-2B080 |
ST141..CSX BEAM |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-20360 |
ST141..CSX W/TACHOMETER |
1 | ||
| 83145-20360 |
ST141..CSX W/TACHOMETER |
1 | ||
| 83131-2B020 |
ST141..CSX |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-2B340 |
ST141..CSX FUEL |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-2B020 |
ST141..CSX |
1 | ||
| 83242-2B060 |
ST141..CSX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-2B100 |
ST141..CSX W/TACHOMETER |
1 | ||
| 83243-20340 |
ST141..CSX |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-2B160 |
RT142,ST141..CSI,CSX,CXI W/TACHOMETER |
1 | ||
| 83244-20220 |
ST141..CSX |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-2B020 |
RT142,ST141..CSI,CSX,CXI |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
CT140,ST141,TT14#..RHD..(3FC,4F,5F)..(CS,DLX,S,STD) ANALOGUE |
1 | ||
| 83909-12230 |
ST141..CSX DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20450 |
ST141..CS,S |
1 | ||
| 83910-20310 |
ST141..CSX |
1 | ||
| 83910-20380 |
ST141..CS,S |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
ST141..CSX |
1 | ||
| 83919-14012 |
CT140,ST141,TT14#..RHD..(3FC,4F,5F)..(CS,DLX,S,STD) ANALOGUE |
1 | ||
| Common parts | ||||
| 83161-20400 | ||||
| 83161-20420 | ||||
| 83161-20440 | ||||
| 83161-20520 | ||||
| 83161-20540 | ||||
| 83161-20560 | ||||
| 83161-20580 | ||||
| 83161-20720 | ||||
| 93567-55016 | ||||
