ST141R-TEPNCQ (1983)

Toyota Corona Fr

Production Apr 1983 - Dec 1986
Engine 2SC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8612)2S#

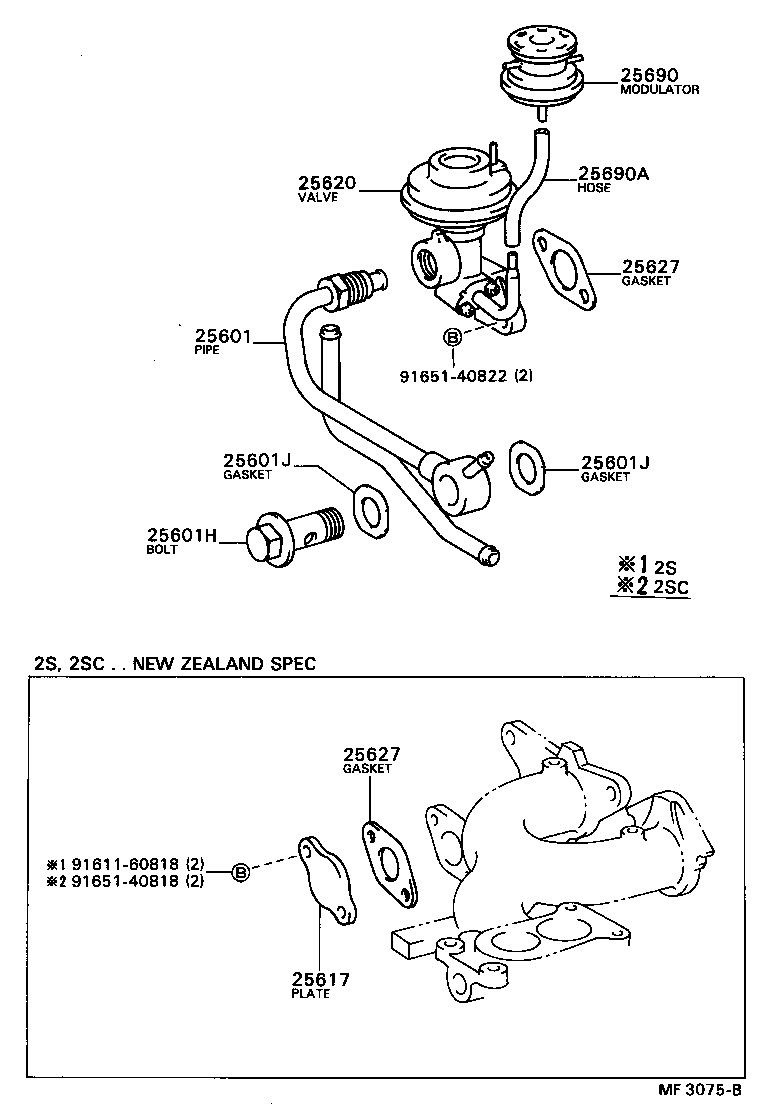

Click highlighted areas on diagram

diagram 25601 25601H 25601J 25601J 25617 25620 25627 25627 25690 25690A 9161160818 9165140818 9165140822
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-74010

2SC..ST141

 1
25601-74030

2SC..ST141

 1
25601H - BOLT, UNION(FOR EGR PIPE,NO.1)
90401-20003

2SC..ST141

 1
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005

2SC..ST141

 2
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005

2SC..ST141

 2
25617 - PLATE, EGR HOLE COVER
25617-74020

2S..ST141

 1
25620 - VALVE ASSY, EGR
25620-74100

2SC..ST141..ATM

 1
25620-74030

2SC..ST141..ATM

 1
25627 - GASKET, EGR VALVE
25627-74030

2S#..ST141

 1
25627 - GASKET, EGR VALVE
25627-74030

2S#..ST141

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-74020

2SC..ST141..ATM

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11065

2SC..ST141

 1
Common parts
91611-60818
91651-40818
91651-40822
