ST141R-TEMNCQ (1983)
Toyota Corona Fr

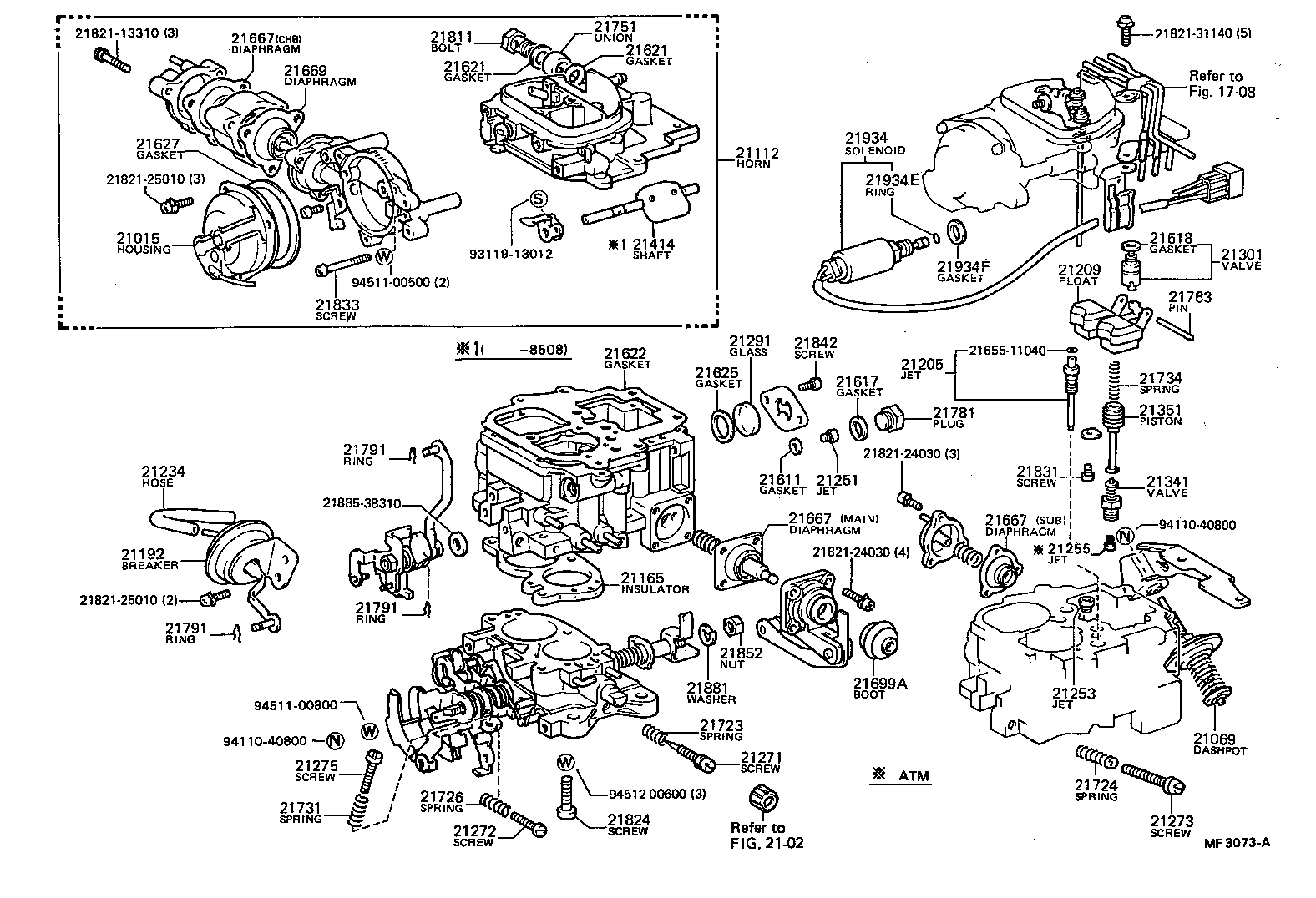

(8304-8508)2SC ; (8510-8512)2SC
(8510-8512)NEW ZEALAND SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-63010 |
2S#..ST141 |
1 | ||
| 21069 - DASH POT SUB-ASSY | ||||
| 21191-63010 |
2S#..ST141 |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-74030 |
2S..ST141 |
1 | ||
| 21112-74010 |
2SC..ST141 |
1 | ||
| 21112-74050 |
2SC..ST141 |
1 | ||
| 21165 - INSULATOR | ||||
| 21165-63010 |
2S#..ST141 |
1 | ||
| 21192 - BREAKER | ||||
| 21192-63060 |
2SC..ST141 |
1 | ||
| 21192-63070 |
2SC..ST141 |
1 | ||
| 21192-63060 |
2S..ST141 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-74010 |
2SC..ST141 |
1 | ||
| 21205-74010 |
2S..ST141 |
1 | ||
| 21205-74050 |
2SC..ST141 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-37041 |
2S#..ST141 |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21234-38011 |
2S..ST141 |
1 | ||
| 95411-19930 |
2SC..ST141 *H,L=70 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-74010 |
2SC..ST141 ID=1.17 |
1 | ||
| 90999-41117 |
2SC..ST141 ID=1.17 |
1 | ||
| 21251-74010 |
2S..ST141 ID=1.17 |
1 | ||
| 90999-41118 |
2SC..ST141 ID=1.18 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-37040 |
2S#..ST141 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-35010 |
2S..ST141 |
1 | ||
| 21271-63070 |
2SC..ST141 |
1 | ||
| 21271-74050 |
2SC..ST141 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21272-71010 |
2S#..ST141 |
1 | ||
| 21844-33010 |
2SC..ST141 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-35210 |
2S#..ST141 |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21273-38010 |
2S#..ST141 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-35010 |
2S#..ST141 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
2S#..ST141 |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-37040 |
2S#..ST141 |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-37040 |
2SC..ST141 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2S#..ST141 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2S#..ST141 |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2S#..ST141 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2S#..ST141 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2S#..ST141 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-63010 |
2S#..ST141 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2S#..ST141 |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28150 |
2S#..ST141 |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-38310 |
2SC..ST141 SUB |
1 | ||
| 21667-63020 |
2SC..ST141 MAIN |
1 | ||
| 21667-74030 |
2S#..ST141 MAIN |
1 | ||
| 21667-63010 |
2SC..ST141 *CHB |
1 | ||
| 21667-72080 |
2S#..ST141 SUB |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-38310 |
2SC..ST141 SUB |
1 | ||
| 21667-63020 |
2SC..ST141 MAIN |
1 | ||
| 21667-74030 |
2S#..ST141 MAIN |
1 | ||
| 21667-63010 |
2SC..ST141 *CHB |
1 | ||
| 21667-72080 |
2S#..ST141 SUB |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-38310 |
2SC..ST141 SUB |
1 | ||
| 21667-63020 |
2SC..ST141 MAIN |
1 | ||
| 21667-74030 |
2S#..ST141 MAIN |
1 | ||
| 21667-63010 |
2SC..ST141 *CHB |
1 | ||
| 21667-72080 |
2S#..ST141 SUB |
1 | ||
| 21669 - DIAPHRAGM | ||||
| 21669-63010 |
2SC..ST141 |
1 | ||
| 21669-74030 |
2S..ST141 |
1 | ||
| 21699A - BOOT(FOR ACCELERATION PUMP) | ||||
| 21699-37040 |
2S#..ST141 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-37040 |
2S#..ST141 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38330 |
2S#..ST141 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-38310 |
2S#..ST141 |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21726-38310 |
2S#..ST141 |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-33080 |
2S#..ST141..MTM |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-63010 |
2S#..ST141 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-34320 |
2S#..ST141 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2S#..ST141 NO.2 |
2 | ||
| 21791-60010 |
2S#..ST141 NO.1 |
3 | ||
| 21791-60010 |
2SC..ST141 |
9 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2S#..ST141 NO.2 |
2 | ||
| 21791-60010 |
2S#..ST141 NO.1 |
3 | ||
| 21791-60010 |
2SC..ST141 |
9 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2S#..ST141 NO.2 |
2 | ||
| 21791-60010 |
2S#..ST141 NO.1 |
3 | ||
| 21791-60010 |
2SC..ST141 |
9 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2S#..ST141 |
1 | ||
| 21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET) | ||||
| 93110-16035 |
2S#..ST141 |
3 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
2S#..ST141 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
2S#..ST141 |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2S#..ST141 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2S#..ST141 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2S#..ST141 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-74010 |
2S..ST141 |
1 | ||
| 21062-74050 |
2SC..ST141 |
1 | ||
| 21062-74010 |
2SC..ST141 |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2S#..ST141 |
2 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
2S#..ST141 |
2 | ||
| Common parts | ||||
| 21655-11040 | ||||
| 21821-13310 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 21885-38310 | ||||
| 93119-13012 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2102 | ||||

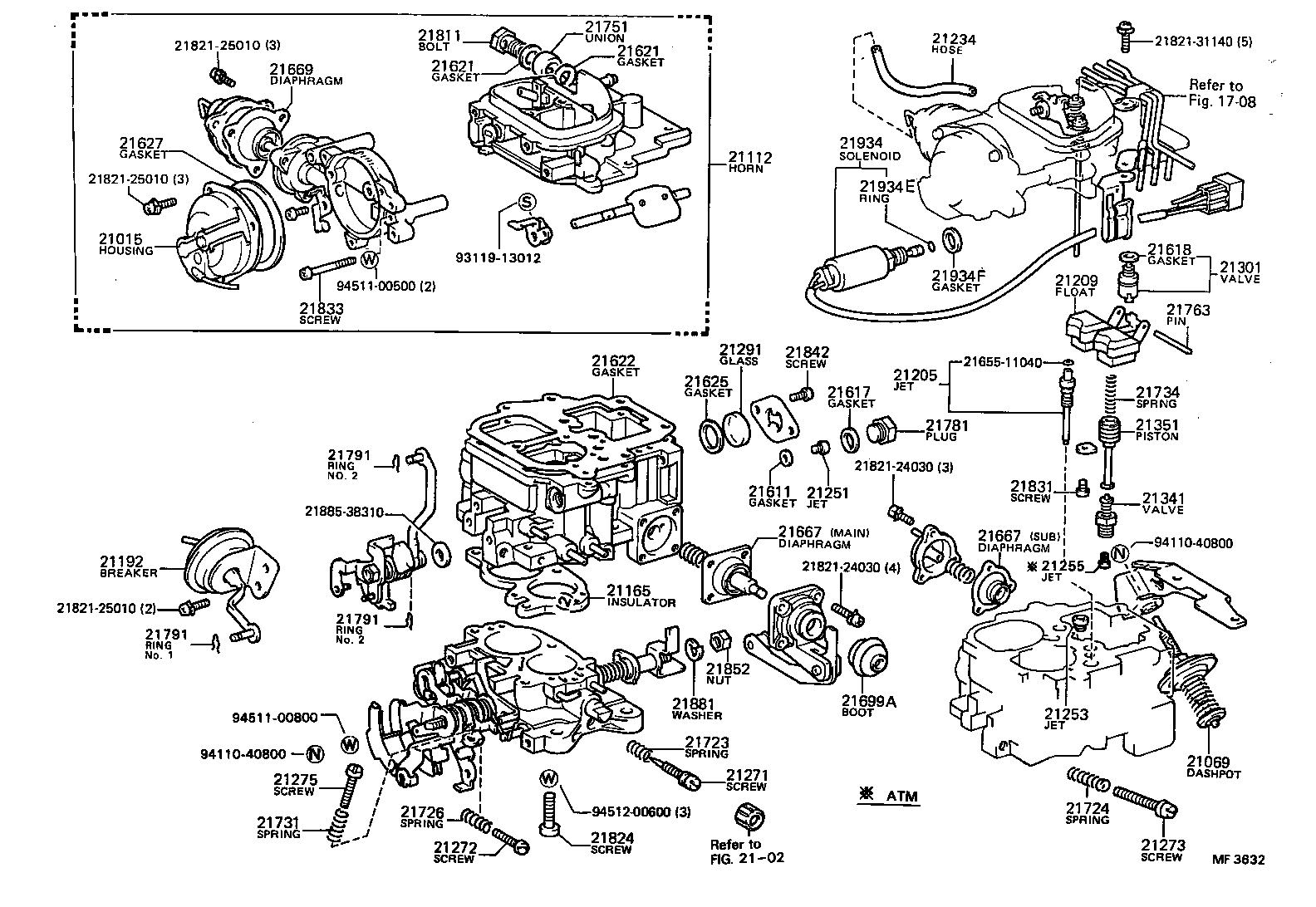

(8508-8612)2S ; (8512-8612)2SC
(8512-8612)NEW ZEALAND SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-63010 |
2S#..ST141 |
1 | ||
| 21069 - DASH POT SUB-ASSY | ||||
| 21191-63010 |
2S#..ST141 |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-74030 |
2S..ST141 |
1 | ||
| 21112-74010 |
2SC..ST141 |
1 | ||
| 21112-74050 |
2SC..ST141 |
1 | ||
| 21165 - INSULATOR | ||||
| 21165-63010 |
2S#..ST141 |
1 | ||
| 21192 - BREAKER | ||||
| 21192-63060 |
2SC..ST141 |
1 | ||
| 21192-63070 |
2SC..ST141 |
1 | ||
| 21192-63060 |
2S..ST141 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-74010 |
2SC..ST141 |
1 | ||
| 21205-74010 |
2S..ST141 |
1 | ||
| 21205-74050 |
2SC..ST141 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-37041 |
2S#..ST141 |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21234-38011 |
2S..ST141 |
1 | ||
| 95411-19930 |
2SC..ST141 *H,L=70 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-74010 |
2SC..ST141 ID=1.17 |
1 | ||
| 90999-41117 |
2SC..ST141 ID=1.17 |
1 | ||
| 21251-74010 |
2S..ST141 ID=1.17 |
1 | ||
| 90999-41118 |
2SC..ST141 ID=1.18 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-37040 |
2S#..ST141 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-35010 |
2S..ST141 |
1 | ||
| 21271-63070 |
2SC..ST141 |
1 | ||
| 21271-74050 |
2SC..ST141 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21272-71010 |
2S#..ST141 |
1 | ||
| 21844-33010 |
2SC..ST141 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-35210 |
2S#..ST141 |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21273-38010 |
2S#..ST141 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-35010 |
2S#..ST141 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
2S#..ST141 |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-37040 |
2S#..ST141 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2S#..ST141 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2S#..ST141 |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2S#..ST141 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2S#..ST141 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2S#..ST141 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-63010 |
2S#..ST141 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2S#..ST141 |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28150 |
2S#..ST141 |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-38310 |
2SC..ST141 SUB |
1 | ||
| 21667-63020 |
2SC..ST141 MAIN |
1 | ||
| 21667-74030 |
2S#..ST141 MAIN |
1 | ||
| 21667-63010 |
2SC..ST141 *CHB |
1 | ||
| 21667-72080 |
2S#..ST141 SUB |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-38310 |
2SC..ST141 SUB |
1 | ||
| 21667-63020 |
2SC..ST141 MAIN |
1 | ||
| 21667-74030 |
2S#..ST141 MAIN |
1 | ||
| 21667-63010 |
2SC..ST141 *CHB |
1 | ||
| 21667-72080 |
2S#..ST141 SUB |
1 | ||
| 21669 - DIAPHRAGM | ||||
| 21669-63010 |
2SC..ST141 |
1 | ||
| 21669-74030 |
2S..ST141 |
1 | ||
| 21699A - BOOT(FOR ACCELERATION PUMP) | ||||
| 21699-37040 |
2S#..ST141 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-37040 |
2S#..ST141 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38330 |
2S#..ST141 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-38310 |
2S#..ST141 |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21726-38310 |
2S#..ST141 |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-33080 |
2S#..ST141..MTM |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-63010 |
2S#..ST141 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-34320 |
2S#..ST141 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2S#..ST141 NO.2 |
2 | ||
| 21791-60010 |
2S#..ST141 NO.1 |
3 | ||
| 21791-60010 |
2SC..ST141 |
9 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2S#..ST141 NO.2 |
2 | ||
| 21791-60010 |
2S#..ST141 NO.1 |
3 | ||
| 21791-60010 |
2SC..ST141 |
9 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2S#..ST141 NO.2 |
2 | ||
| 21791-60010 |
2S#..ST141 NO.1 |
3 | ||
| 21791-60010 |
2SC..ST141 |
9 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2S#..ST141 |
1 | ||
| 21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET) | ||||
| 93110-16035 |
2S#..ST141 |
3 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
2S#..ST141 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
2S#..ST141 |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2S#..ST141 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2S#..ST141 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2S#..ST141 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-74010 |
2S..ST141 |
1 | ||
| 21062-74050 |
2SC..ST141 |
1 | ||
| 21062-74010 |
2SC..ST141 |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2S#..ST141 |
2 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
2S#..ST141 |
2 | ||
| Common parts | ||||
| 21655-11040 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 21885-38310 | ||||
| 93119-13012 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2102 | ||||
(8508-8612)2SC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-63010 |
2S#..ST141 |
1 | ||
| 21069 - DASH POT SUB-ASSY | ||||
| 21191-63010 |
2S#..ST141 |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-74030 |
2S..ST141 |
1 | ||
| 21112-74010 |
2SC..ST141 |
1 | ||
| 21112-74050 |
2SC..ST141 |
1 | ||
| 21165 - INSULATOR | ||||
| 21165-63010 |
2S#..ST141 |
1 | ||
| 21192 - BREAKER | ||||
| 21192-63060 |
2SC..ST141 |
1 | ||
| 21192-63070 |
2SC..ST141 |
1 | ||
| 21192-63060 |
2S..ST141 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-74010 |
2SC..ST141 |
1 | ||
| 21205-74010 |
2S..ST141 |
1 | ||
| 21205-74050 |
2SC..ST141 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-37041 |
2S#..ST141 |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21234-38011 |
2S..ST141 |
1 | ||
| 95411-19930 |
2SC..ST141 *H,L=70 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-74010 |
2SC..ST141 ID=1.17 |
1 | ||
| 90999-41117 |
2SC..ST141 ID=1.17 |
1 | ||
| 21251-74010 |
2S..ST141 ID=1.17 |
1 | ||
| 90999-41118 |
2SC..ST141 ID=1.18 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-37040 |
2S#..ST141 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-35010 |
2S..ST141 |
1 | ||
| 21271-63070 |
2SC..ST141 |
1 | ||
| 21271-74050 |
2SC..ST141 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21272-71010 |
2S#..ST141 |
1 | ||
| 21844-33010 |
2SC..ST141 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-35210 |
2S#..ST141 |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21273-38010 |
2S#..ST141 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-35010 |
2S#..ST141 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
2S#..ST141 |
1 | ||
| 21347 - VALVE, SOLENOID | ||||
| 21347-74050 |
2SC..ST141 |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-37040 |
2S#..ST141 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2S#..ST141 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2S#..ST141 |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2S#..ST141 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2S#..ST141 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2S#..ST141 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-63010 |
2S#..ST141 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2S#..ST141 |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28150 |
2S#..ST141 |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-35010 |
2SC..ST141 |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-38310 |
2SC..ST141 SUB |
1 | ||
| 21667-63020 |
2SC..ST141 MAIN |
1 | ||
| 21667-74030 |
2S#..ST141 MAIN |
1 | ||
| 21667-63010 |
2SC..ST141 *CHB |
1 | ||
| 21667-72080 |
2S#..ST141 SUB |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-38310 |
2SC..ST141 SUB |
1 | ||
| 21667-63020 |
2SC..ST141 MAIN |
1 | ||
| 21667-74030 |
2S#..ST141 MAIN |
1 | ||
| 21667-63010 |
2SC..ST141 *CHB |
1 | ||
| 21667-72080 |
2S#..ST141 SUB |
1 | ||
| 21669 - DIAPHRAGM | ||||
| 21669-63010 |
2SC..ST141 |
1 | ||
| 21669-74030 |
2S..ST141 |
1 | ||
| 21699A - BOOT(FOR ACCELERATION PUMP) | ||||
| 21699-37040 |
2S#..ST141 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-37040 |
2S#..ST141 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38330 |
2S#..ST141 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-38310 |
2S#..ST141 |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21726-38310 |
2S#..ST141 |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-33080 |
2S#..ST141..MTM |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-63010 |
2S#..ST141 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-34320 |
2S#..ST141 |
1 | ||
| 21785 - PLUG, CARBURETOR FUEL INLET STRAINER | ||||
| 21785-74050 |
2SC..ST141 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2S#..ST141 NO.2 |
2 | ||
| 21791-60010 |
2S#..ST141 NO.1 |
3 | ||
| 21791-60010 |
2SC..ST141 |
9 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2S#..ST141 NO.2 |
2 | ||
| 21791-60010 |
2S#..ST141 NO.1 |
3 | ||
| 21791-60010 |
2SC..ST141 |
9 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2S#..ST141 |
1 | ||
| 21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET) | ||||
| 93110-16035 |
2S#..ST141 |
3 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
2S#..ST141 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
2S#..ST141 |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2S#..ST141 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2S#..ST141 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2S#..ST141 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-74010 |
2S..ST141 |
1 | ||
| 21062-74050 |
2SC..ST141 |
1 | ||
| 21062-74010 |
2SC..ST141 |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2S#..ST141 |
2 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
2S#..ST141 |
2 | ||
| Common parts | ||||
| 21655-11040 | ||||
| 21821-13310 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 21885-38310 | ||||
| 93319-13012 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| Linked diagrams | ||||
| 1708 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
