ST141R-TEMDCQ (1983)

Toyota Corona Fr

Production Apr 1983 - Dec 1986
Engine 2SC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8612)2S#

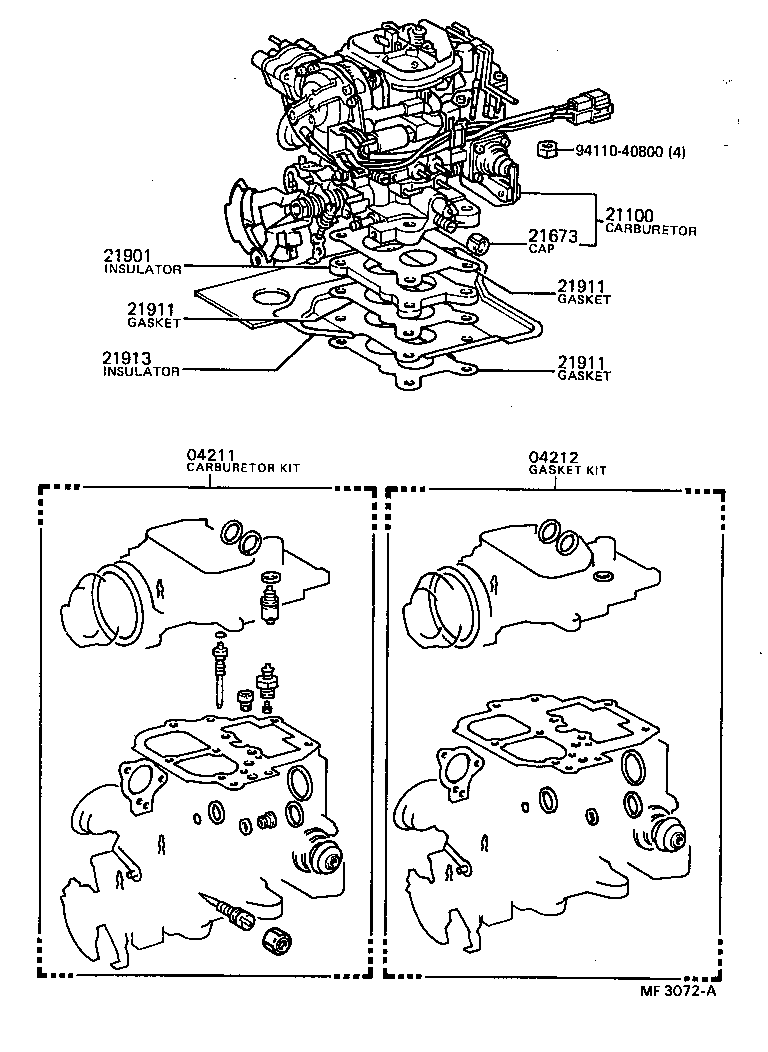

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21901 21911 21911 21911 21913 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-74030

2S..ST141..5F

 1
04211-74010

2SC..ST141

 1
04211-74050

2SC..ST141

 1
04212 - GASKET KIT, CARBURETOR
04212-74010

2S..ST141

 1
04212-63010

2SC..ST141

 1
04212-74020

2SC..ST141

 1
21100 - CARBURETOR ASSY
21100-74010

2SC..ST141..MTM

 1
21100-74050

2SC..ST141..MTM

 1
21100-74030

2S..ST141..5F

 1
21673 - CAP, IDLE LIMIT
21673-13280

2SC..ST141

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-63010

2S#..ST141

 1
21911 - GASKET, CARBURETOR
21911-63010

2S#..ST141

 3
21911 - GASKET, CARBURETOR
21911-63010

2S#..ST141

 3
21911 - GASKET, CARBURETOR
21911-63010

2S#..ST141

 3
21913 - INSULATOR, CARBURETOR HEAT, NO.2
21902-63010

2SC..ST141

 1
21902-63011

2S#..ST141

 1
Common parts
94110-40800
