ST141R-TEMDCQ (1983)

Toyota Corona Fr

Production Apr 1983 - Dec 1986
Engine 2SC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8508)2SC

Click highlighted areas on diagram

diagram 17650 23262 23263 23264 23265 23275 23276 23282 23283 23288 25706 25707 9041304005 9041304005 9041304005 9041304005 9041304005 9044514117 9044514118 9044514118 9046400082 9046400082 9046400082 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9165540616
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
89570-12180

2SC..ST141

 1
89570-12180

2SC..ST141..MTM

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

2S#..ST141

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05051

2SC..ST141

 1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
90925-05059

2SC..ST141

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03167

2SC..ST141

 1
90925-03148

2S..ST141

 1
90925-03148

2SC..ST141

 1
23276 - VALVE, VACUUM CONTROL, NO.2
90925-03092

2SC..ST141..MTM

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01062

2S#..ST141

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01019

2SC..ST141

 1
90925-01019

2S..ST141

 1
23288 - JET, NO.1
90925-04012

2SC..ST141

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-74020

2SC..ST141

 1
25706-74040

2SC..ST141

 1
25706-74030

2S..ST141

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-74040

2SC..ST141

 1
25707-74030

2S..ST141

 1
25707-74020

2SC..ST141

 1
Common parts
90413-04005
90445-14117
90445-14118
90464-00082
90999-92002
90999-92003
91655-40616

(8508-8612)2SC

Click highlighted areas on diagram

diagram 17650 21381 23262 23263 23264 23265 23275 23276 23282 23285A 23285A 23288 23289 25706 25707 8271122270 9033903005 9041304004 9041304005 9041304005 9041304005 9041304005 9041304005 9041304005 9041306002 9041306002 9044511043 9044511048 9044514102 9044514136 9044714012 9046400065 9046400074 9046400074 9046400082 9046400082 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9165540616
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
89570-12180

2SC..ST141

 1
89570-12180

2SC..ST141..MTM

 1
21381 - BIMETAL, THERMOSTATIC
21381-71010

2SC..ST141

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

2S#..ST141

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05051

2SC..ST141

 1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
90925-05059

2SC..ST141

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03167

2SC..ST141

 1
90925-03148

2S..ST141

 1
90925-03148

2SC..ST141

 1
23276 - VALVE, VACUUM CONTROL, NO.2
90925-03092

2SC..ST141..MTM

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01062

2S#..ST141

 1
23285A - VALVE, CHECK, NO.1
90917-10049

2SC..ST141

 2
23285A - VALVE, CHECK, NO.1
90917-10049

2SC..ST141

 2
23288 - JET, NO.1
90925-04012

2SC..ST141

 1
23289 - JET, NO.2
90925-04003

2SC..ST141

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-74020

2SC..ST141

 1
25706-74040

2SC..ST141

 1
25706-74030

2S..ST141

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-74040

2SC..ST141

 1
25707-74030

2S..ST141

 1
25707-74020

2SC..ST141

 1
Common parts
82711-22270
90339-03005
90413-04004
90413-04005
90413-06002
90445-11043
90445-11048
90445-14102
90445-14136
90447-14012
90464-00065
90464-00074
90464-00082
90999-92002
90999-92003
91655-40616

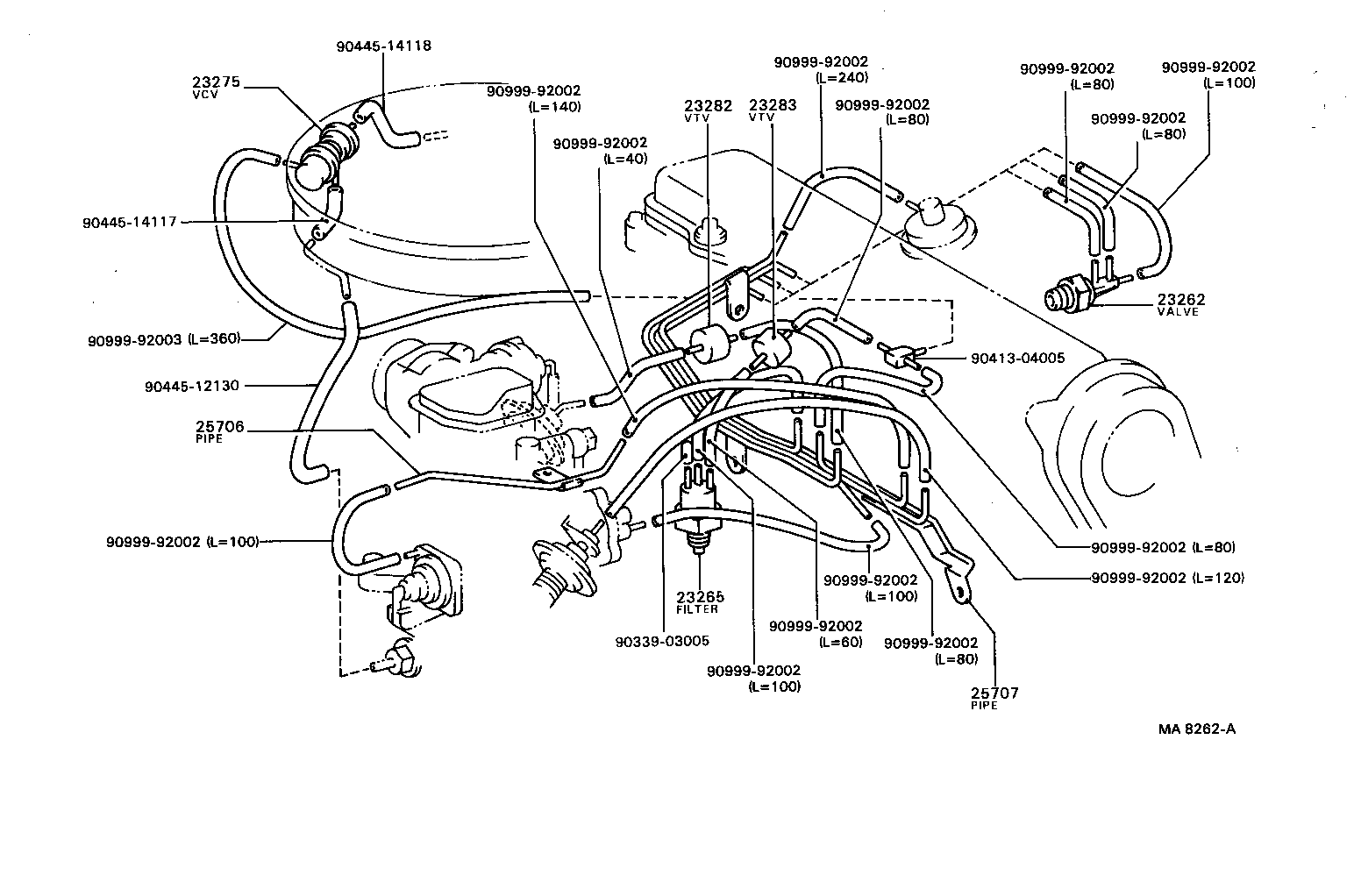

(8508-8612)2S

Click highlighted areas on diagram

diagram 23262 23265 23275 23282 23283 25706 25707 9033903005 9041304005 9044512130 9044514117 9044514118 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

2S#..ST141

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03167

2SC..ST141

 1
90925-03148

2S..ST141

 1
90925-03148

2SC..ST141

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01062

2S#..ST141

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01019

2SC..ST141

 1
90925-01019

2S..ST141

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-74020

2SC..ST141

 1
25706-74040

2SC..ST141

 1
25706-74030

2S..ST141

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-74040

2SC..ST141

 1
25707-74030

2S..ST141

 1
25707-74020

2SC..ST141

 1
Common parts
90339-03005
90413-04005
90445-12130
90445-14117
90445-14118
90999-92002
90999-92003

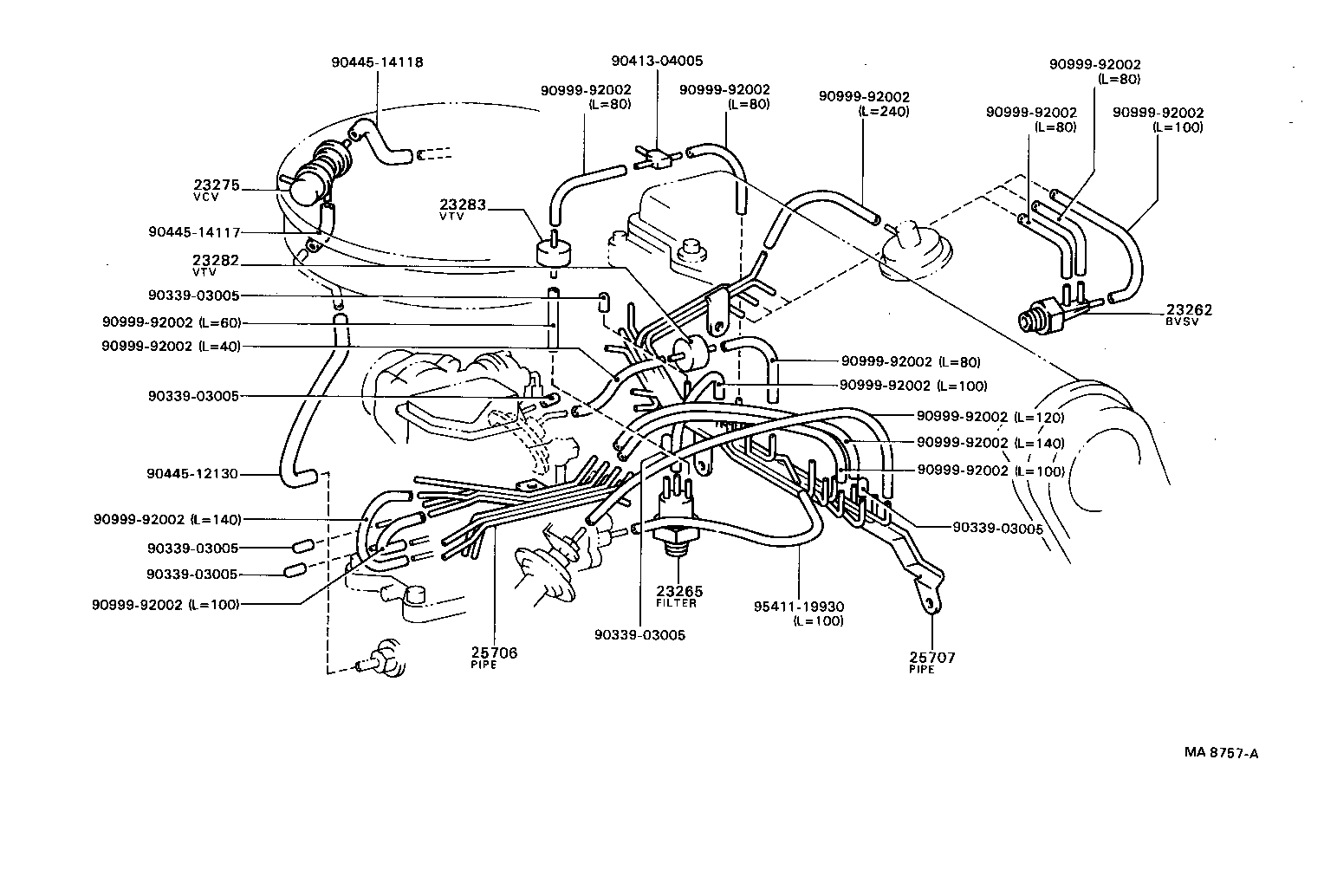

(8508-8612)2SC

Click highlighted areas on diagram

NEW ZEALAND SPEC

diagram 23262 23265 23275 23282 23283 25706 25707 9033903005 9033903005 9033903005 9033903005 9033903005 9033903005 9041304005 9044512130 9044514117 9044514118 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9541119930
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

2S#..ST141

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03167

2SC..ST141

 1
90925-03148

2S..ST141

 1
90925-03148

2SC..ST141

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01062

2S#..ST141

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01019

2SC..ST141

 1
90925-01019

2S..ST141

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-74020

2SC..ST141

 1
25706-74040

2SC..ST141

 1
25706-74030

2S..ST141

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-74040

2SC..ST141

 1
25707-74030

2S..ST141

 1
25707-74020

2SC..ST141

 1
Common parts
90339-03005
90413-04005
90445-12130
90445-14117
90445-14118
90999-92002
95411-19930
